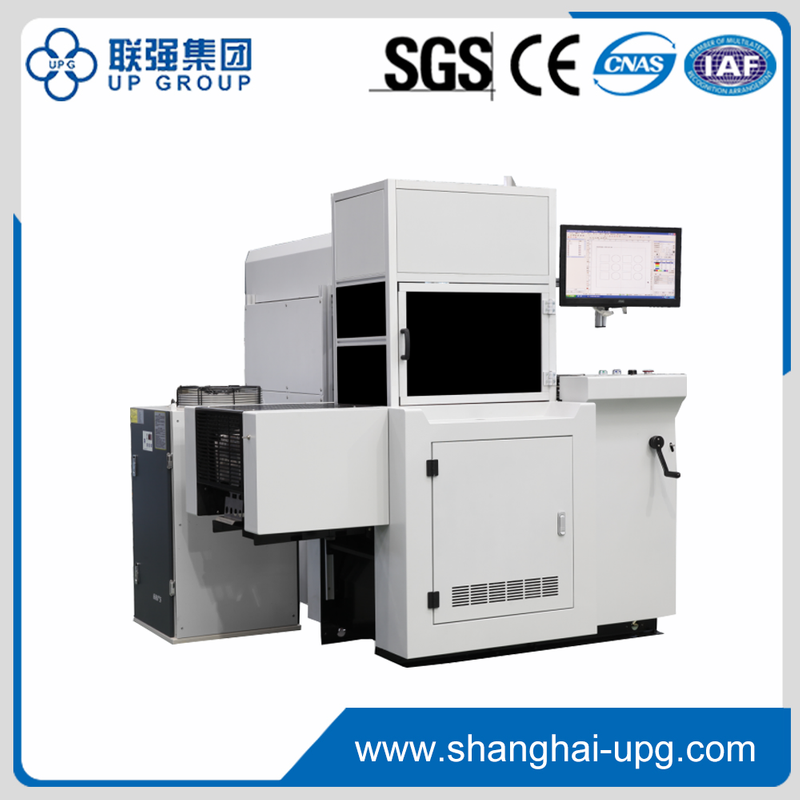

LQ-MD 340S
UPG
LQ-MD 340S
· Digitizing
Rapid replacement of different cutting images by computer, not only meets the personalized demands,but suits for short run (digital) printing jobs and post-press processing of large format imposition printing jobs.
· High Precision
Automatic laser cutting and engraving guarantee zero vibration deviation. Video capture technology minimizes the sheet feeding clearance, meanwhile ensures cutting precision.
· High Efficient
To replace and upgrade traditional mechanical die cutting by laser cutting, save the time for producing and adjusting of traditional cutting dies.
· Affordable Cost
Model to cut graphics and characters arbitrarily is controlled by computer, mechanical cutting die is not required, operation and maintenance cost is less.
· Digitizing
Rapid replacement of different cutting images by computer, not only meets the personalized demands,but suits for short run (digital) printing jobs and post-press processing of large format imposition printing jobs.
· High Precision
Automatic laser cutting and engraving guarantee zero vibration deviation. Video capture technology minimizes the sheet feeding clearance, meanwhile ensures cutting precision.
· High Efficient
To replace and upgrade traditional mechanical die cutting by laser cutting, save the time for producing and adjusting of traditional cutting dies.
· Affordable Cost
Model to cut graphics and characters arbitrarily is controlled by computer, mechanical cutting die is not required, operation and maintenance cost is less.
Model | LQ-MD 340S |
Design Type | Sheet-Fed |
Max. Sheet Size | 483×340mm |
Light Source | 10.6um CO2 |
Laser Energy | 180w |
Positioning Method | Video Capture |
Positioning Accuracy | ±0.2mm |
Input File | PLT, DXF, JPG, BMP |
Power Supply | AC220V; 50Hz; 5-8kw |
Working Environment | T25 ±5°C, RH10-70% |
Net weight | 800kg |
Machine Dimension | 2000×2100×1800mm |
Model | LQ-MD 340S |
Design Type | Sheet-Fed |
Max. Sheet Size | 483×340mm |
Light Source | 10.6um CO2 |
Laser Energy | 180w |
Positioning Method | Video Capture |
Positioning Accuracy | ±0.2mm |
Input File | PLT, DXF, JPG, BMP |
Power Supply | AC220V; 50Hz; 5-8kw |
Working Environment | T25 ±5°C, RH10-70% |
Net weight | 800kg |
Machine Dimension | 2000×2100×1800mm |
