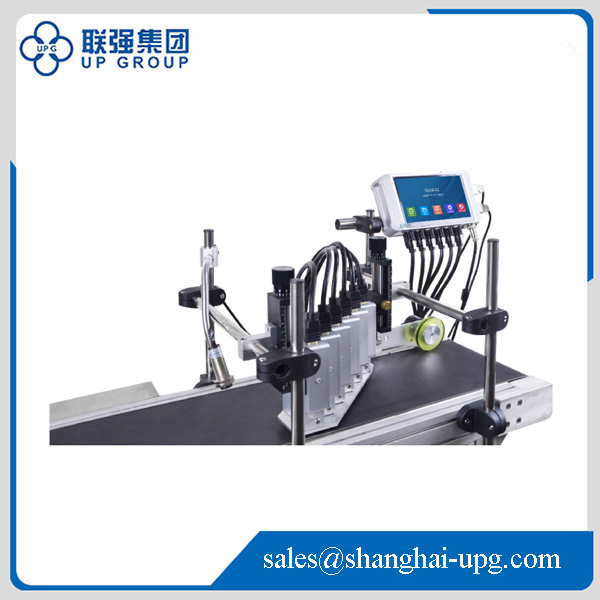

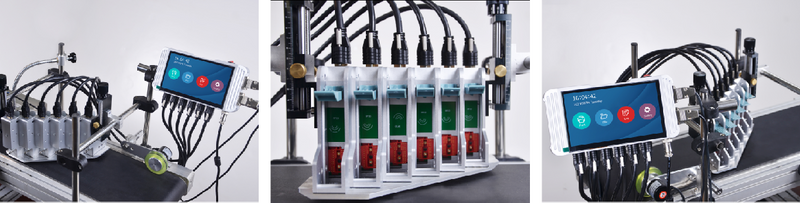

LQ Multi-nozzles Online Coding System

Availability:
Quantity:

This inkjet printer can print on plastic bags, cartons, metal, glass, woven bags, wood products, pipes. It can print Chinese characters, English, numbers, time, serial number, barcode, QR


Packing list of Printer

SN

Description

QTY


RANK

1

Package Box

1

Standard packing

2

T-W Printer

1

Standard packing

3

Nozzle

According

to the

actual

Standard packing

4

Adapter(16V-3A)

1

Standard packing

5

Sensor (NPN)

1

Standard packing

6

HDMI  Line

According

to the

actual

Standard packing

7

Print head 360-degree mounting kit

1

Standard packing

8

Manual

1

Standard packing

9

Fixed Stent

1

Standard packing

10

Encoder

1

To be purchased separately

11

Custom Stent

1

To be purchased separately

12

Anti-collision device

1

To be purchased separately

13

Ink Cartridge

1

To be purchased separately

14

Trimming device

1

To be purchased separately


Technical parameter

Printer Size

210*110*40mm

Material

Metal body

Weight

About 800g(the ink cartridge not included)

Screen Size

7inch touch screen

Store information

Unlimited Storage

Resolution

150/300/600DPI

Count

1-15 digital

Code

Bar code、qr code,variable qr code

The external interface

The power interface、RS232 interface、USB interface、hdmi

environment

Temperature 0-40℃、humidity 10-80%

Oily ink Color

Black、Red、Blue、Green、Yellow、invisible

Fast dry Ink Color

Black、red、blue、green、yellow、orange、white、invisible

Ink Volume

42CC(half inch)、45CC(one inch)

Ink Cartridge

Fast dry ink、water ink

Spray print fonts

Synchronize with machines and computers

Printing Distance

2-3mm

Printing Height

2-12.7mm、2-25mm、2-50mm、2-150mm

Printing Speed

5-100m/min

Printing Content

date、count、batch Number、code、photo etc

Power specification

16V3A\5A adapter
