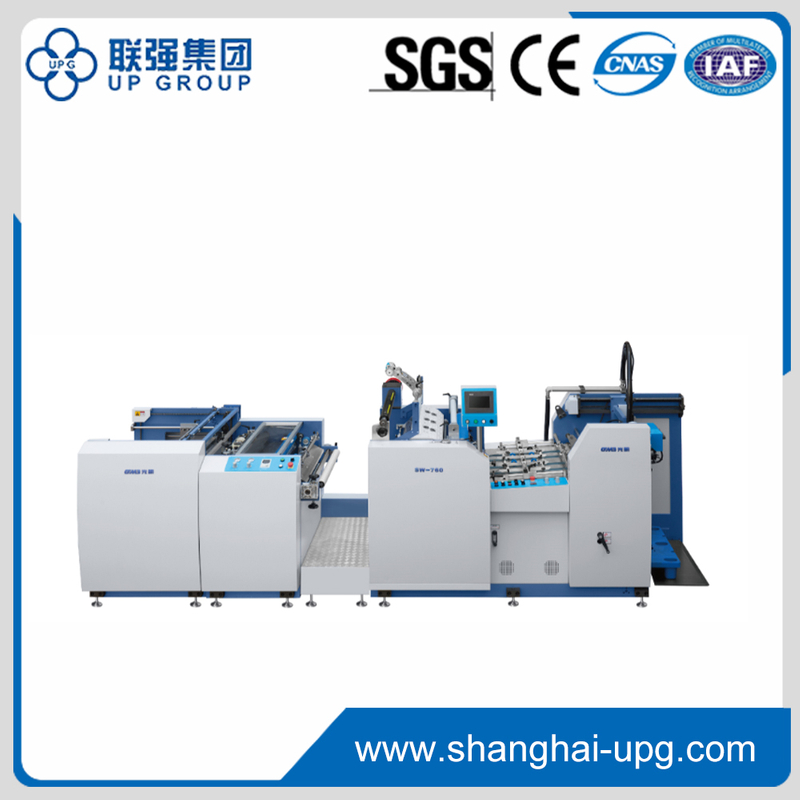

LQ-SW-560 Fully Automatic Laminator

This machine is equipped with a paper pre-stacker,servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.

Availability:
Quantity:

PDF Export

  • LQ-SW-560

  • UPG

  1. Paper loading plate of feeder can land to ground to load paper pile easily.

  2. Suction device guarantees stablity and smooth of paper sending.

  3. Bigger heating roller with electromagnetism technology ensures high quality lamination.

  4. New design of double layer patting plate of auto stacker makes operation easily.

Model   No.

LQSW-560

Max   Paper Size

560×820mm

Min   Paper Size

210×300mm

Laminating   Speed

0-60m/min

Paper   Thickness

90-600gsm

Gross   Power

20/12kw

Overall   Dimensions

4600×1350×1600mm

Weight

2600kgs
