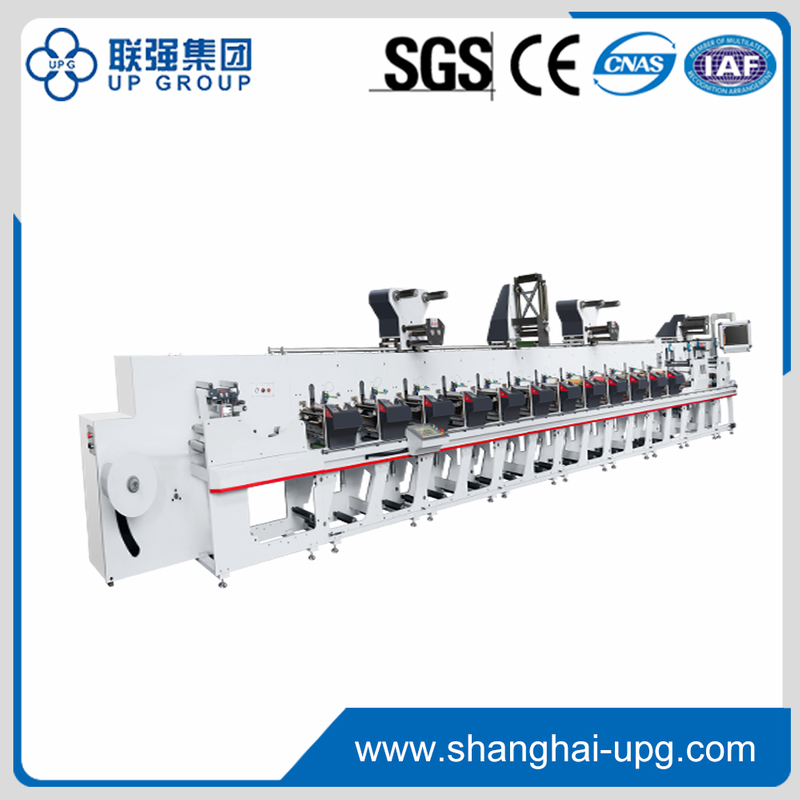

1、 The whole machine adopts the latest servo control system Baumuller from Germany and each printing unit is driven by independent servo motor, there are 25 servo motors in total for 8 color machine which ensure the accurate registration during high speed running. Each printing unit has two servo motors (one is controlling plate cylinder and the other is controlling impression cylinder).
2、 The plate roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance.
3、 Fast and easy pressure adjustment of printing or ink transferring: plate roller run by bearer, it is not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.
4、 Impression roller equips with water chiller, it’s good for film material as well
1、 The whole machine adopts the latest servo control system Baumuller from Germany and each printing unit is driven by independent servo motor, there are 25 servo motors in total for 8 color machine which ensure the accurate registration during high speed running. Each printing unit has two servo motors (one is controlling plate cylinder and the other is controlling impression cylinder).
2、 The plate roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance.
3、 Fast and easy pressure adjustment of printing or ink transferring: plate roller run by bearer, it is not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.
4、 Impression roller equips with water chiller, it’s good for film material as well
Model | LQSR-340 | LQSR-420 |
Max. printing speed | 200m/min. | 200m/min. |
Max. printing width | 330 mm | 420 mm |
Max. width | 340 mm | 430 mm |
Max .unwind diameter | 1050 mm | 1050 mm |
Max. exhaust diameter | 900 mm | 900 mm |
Max. repeat length | 254-609.6 mm | 254-609.6 mm |
Loading method | sleeve | sleeve |
Horizontal overprint adjustment | motor drive | motor drive |
Longitudinal overprint control | 360° servo drive | 360° servo drive |
Preliminary overprint | Automatic | Automatic |
Fast changing ink system | Quick change of ink tank | Quick change of ink tank |
Turn bar (movable) | Equipped | Equipped |
Lubrication way | Automatic | Automatic |
