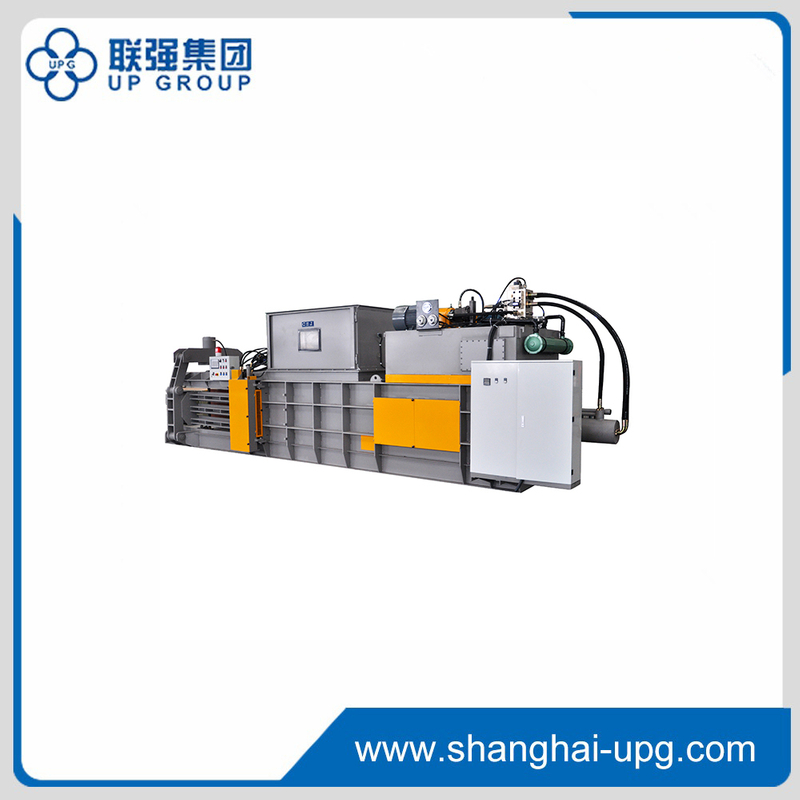

LQ-TM
UPG
* It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
* PLC program touch screen control simple operation with feeding detection and automatic compression realizing unmanned operation.
* Unique automatic bundling device fast speed simple structure stable action low failure rate and easy to clean and maintain.
* Equipped with accelerated oil pump and booster oil pump saving electricity energy consumption and cost.
* Automatic fault diagnosis and automatic display improves detection efficiency freely sets bale length and accurately records the bale numbers.
* The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
* Three-phase voltage safety interlock simple and durable it can be equipped with air pipe and conveyor feeding material with higher efficiency.
* It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
* PLC program touch screen control simple operation with feeding detection and automatic compression realizing unmanned operation.
* Unique automatic bundling device fast speed simple structure stable action low failure rate and easy to clean and maintain.
* Equipped with accelerated oil pump and booster oil pump saving electricity energy consumption and cost.
* Automatic fault diagnosis and automatic display improves detection efficiency freely sets bale length and accurately records the bale numbers.
* The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
* Three-phase voltage safety interlock simple and durable it can be equipped with air pipe and conveyor feeding material with higher efficiency.
Model | LQ-80TM | LQ-100TM | LQ-120TM |
Compression force(Ton) | 80 | 100 | 120 |
Bale size(W*H*L)mm | 1100*800*(300-1800) | 1100*1000*(300-2000) | 1100*1100*(300*2000) |
Feed opening size(L*W)mm | 1650*1100 | 1800*1100 | 2000*1100 |
Bale lines | 4 | 4 | 5 |
Density(Kg/m³) | 450-550 | 500-600 | 550-650 |
Capacity(Ton/Hr) | 4-7 | 6-10 | 8-13 |
Power(Kw/Hp) | 30/40 | 37.5/50 | 60/80 |
Machine size(L*W*H)mm | 7900*3500*2300 | 8900*4050*2400 | 9700*4330*2400 |
Machine weight(Ton) | 9.5 | 13.5 | 17 |
