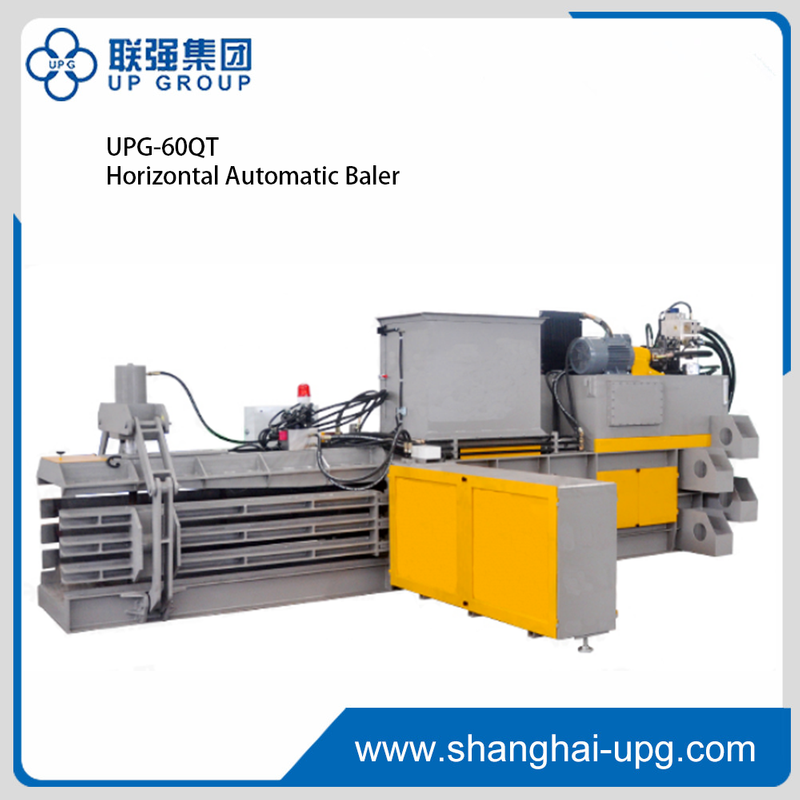

LQ-MD 60QT Horizontal Automatic Baler

Availability:
Quantity:
  • LQ-MD 60QT
  • UPG

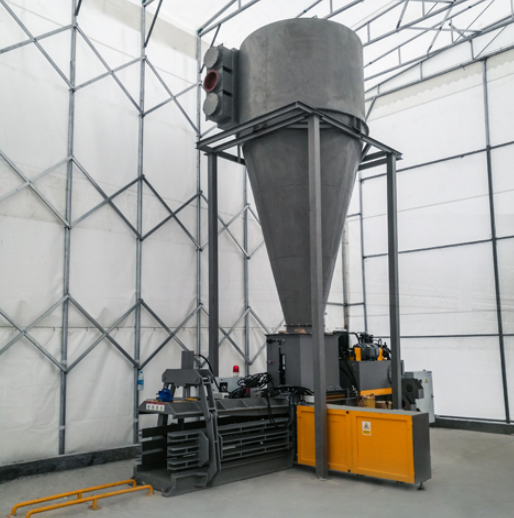

The tying mechanism of horizontal automatic balers including automatic iron wire strapping and PET strapping. It offers a combination of features to meet your recycling needs, popularly used in the recycling of waste paper, cardboard, plastic, fabric, fiber, household garbage, and others. Connection with a conveyor or air pipe line for waste feeding is available.

Three sides pull-back compression design with a powerful cylinder, the comprehensive touch screen PLC control ensures simple and easy operation, the automatic feeding detection feature help to achieve unmanned operation. The unique designed automatic strapping device offers a simple, fast and stable performance with effortless maintenance. Equipped with start-up motor and pressurized motor to save electrical energy and cost. The inspection and display function improve the efficiency of automatic error diagnostics. It is capable of producing bales in designated length and the production can be accurately recorded by the system.

The horizontal baler has three-phase voltage and safety interlock device, the unique design of the blade pattern enhances cutting efficiency and lengthens the working life of the blade.


Hydraulic power60t
Bale size (W×H×L)750×850×(300-1600)mm
Feed opening size (L×H)1500×750mm
Bale density400-500kg/m3
Capability3-4 tons/hour
Power22 kw/ 30 hp
Voltage380V, 50 Hz, 3 phase
Bale line4 lines
Machine size (L×W×H)About 6650×3300×2200mm
Machine weightAbout 8t
Cooling system modelair cooling


Hydraulic Part

Main Hydraulic Components

YUTIEN  (TAIWAN BRAND)

Hydraulic Valves

YUKEN  (JAPAN BRAND)

Sealing Parts

HALLITE  (UK BRAND)

Wear-resisting Plate

BASF  (GERMANY BRAND)

Temperature Control System

TESHOW  (TAIWAN BRAND)

Oil Pipe

ZMTE  (SINO-AMERICAN JOINT VENTURE)

Bearing

NSK  (JAPAN BRAND)

Cooling System

COOLBIT  (TAIWAN BRAND)

Oil Pump

JINDA or HENGYUAN

Hydraulic Motor

SIEMENS-BEIDE or DAZHONG

Cylinder

JIABAO  (GERMANY TECHNOLOGY)

Wire Winding Motor

SANYO  (JAPAN BRAND)

Steel

CHINESE FIRST CLASS STEEL

Electrical Part

PLC Control System

MITSUBISHI  (JAPAN BRAND)

Operation Touch Screen

WEINVIEW  (TAIWAN BRAND)

Power Switch

SCHNEIDER  (FRENCH BRAND)

All Intermediate Relay

SCHNEIDER  (FRENCH BRAND)

All Contactor

SCHNEIDER  (FRENCH BRAND)

All Thermal Relay

SCHNEIDER  (FRENCH BRAND)

Buttons

SCHNEIDER  (FRENCH BRAND)

Cable Teminal

ABB  (SWITZERLAND BRAND)

Sensor

OMRON  (JAPAN BRAND)

Optoelectronic Switch

OMRON  (JAPAN BRAND)
