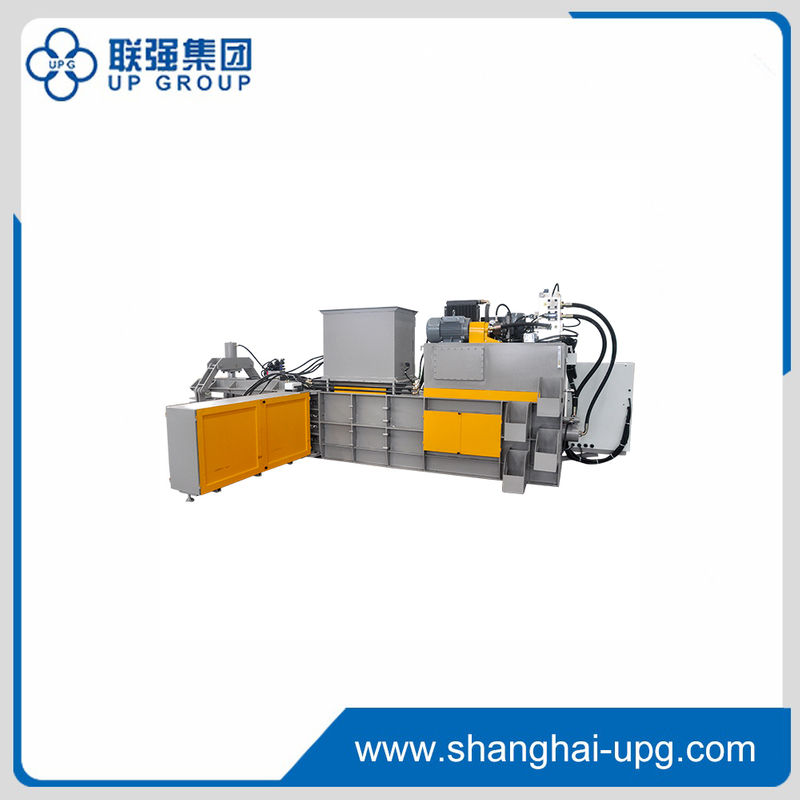

LQQT
UPG
* It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
* PLC program touch screen control simple operation with feeding detection and automatic compression realizing unmanned operation.
* Unique automatic bundling device fast speed simple structure stable action low failure rate and easy to clean and maintain.
* Equipped with accelerated oil pump and booster oil pump saving electricity energy consumption and cost.
* Automatic fault diagnosis and automatic display improves detection efficiency freely sets bale length and accurately records the bale numbers.
* The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
* Three-phase voltage safety interlock simple and durable it can be equipped with air pipe and conveyor feeding material with higher efficiency.
* It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
* PLC program touch screen control simple operation with feeding detection and automatic compression realizing unmanned operation.
* Unique automatic bundling device fast speed simple structure stable action low failure rate and easy to clean and maintain.
* Equipped with accelerated oil pump and booster oil pump saving electricity energy consumption and cost.
* Automatic fault diagnosis and automatic display improves detection efficiency freely sets bale length and accurately records the bale numbers.
* The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
* Three-phase voltage safety interlock simple and durable it can be equipped with air pipe and conveyor feeding material with higher efficiency.
Model | LQ30QT | LQ40QT | LQ60QT |
Compression force(Ton) | 30 | 40 | 60 |
Bale size(W*H*L)mm | 500*500*(300-1000) | 720*720*(300-1500) | 750*850*(300-1600) |
Feed opening size(L*W)mm | 950*950 | 1150*720 | 1350*750 |
Bale line | 3 | 4 | 4 |
Density(Kg/m³) | 250-300 | 350-450 | 400-500 |
Capacity(Ton/Hr) | 1-1.5 | 1.5-2.5 | 3-4 |
Power(Kw/Hp) | 11/15 | 15/20 | 18.5/25 |
Machine size(L*W*H)mm | 5000*2830*1800 | 6500*3190*2100 | 6650*3300*2200 |
Machine weight(Ton) | 4 | 6.5 | 8 |
Model | LQ30QT | LQ40QT | LQ60QT |
Compression force(Ton) | 30 | 40 | 60 |
Bale size(W*H*L)mm | 500*500*(300-1000) | 720*720*(300-1500) | 750*850*(300-1600) |
Feed opening size(L*W)mm | 950*950 | 1150*720 | 1350*750 |
Bale line | 3 | 4 | 4 |
Density(Kg/m³) | 250-300 | 350-450 | 400-500 |
Capacity(Ton/Hr) | 1-1.5 | 1.5-2.5 | 3-4 |
Power(Kw/Hp) | 11/15 | 15/20 | 18.5/25 |
Machine size(L*W*H)mm | 5000*2830*1800 | 6500*3190*2100 | 6650*3300*2200 |
Machine weight(Ton) | 4 | 6.5 | 8 |
