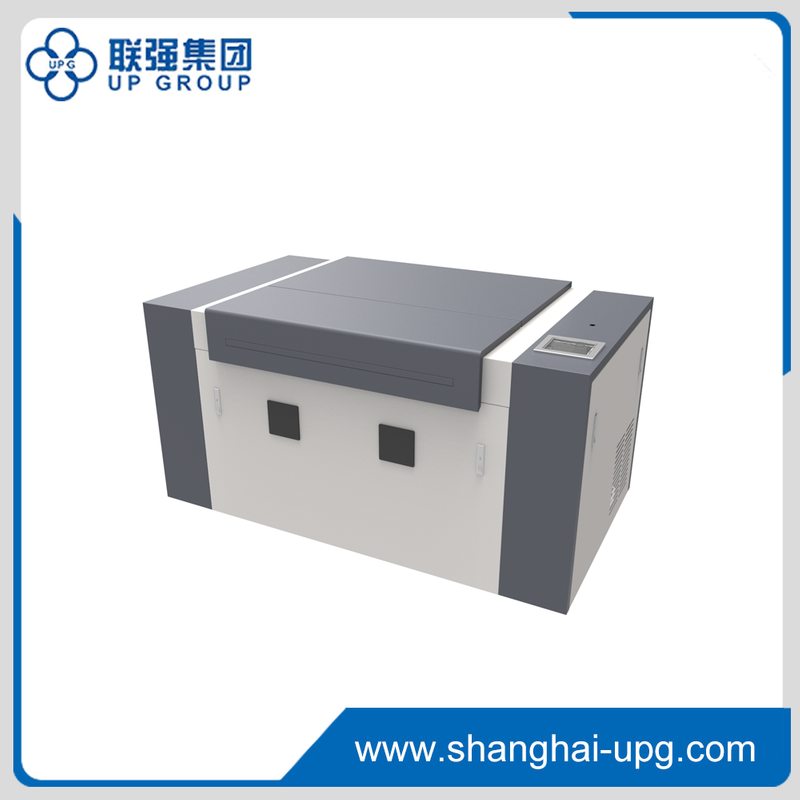

LQ Thermal & UV 830 Computer to Plate System (CTP)


PDF Export

  • UPG

  • LQ830 series of CTP plate setters utilize advanced thermal image technology, which realize day light operation.

  • Highly stable lasers and optical system produce sharp printing dot, capable of reproducing 1%-99% dot at 300lpi. The end result to high quality and accurate printing. It is easy to maintain.

  • External drum configuration keeps the plate direction consistent on drum the same during plate making and on press, which ensures the highest consistency during printing and plate making.

  • Automated in – line punch systems are accurate and economic.

  • Marble platform provides the best stability in variety of ambient temperatures.

  • Fully automated drum balancing system ensures smooth& high-speed operation of any plate size and thickness.

  • Two tiers, separate loading and unloading allows continuous plate load, front or back plate ejection.

  • Independent dust control unit to ensure cleanliness of laser unit and quality of plate setting.

  • Open and intuitive user interface with touch screen allows easy operation.

Laser system830nm LD, 32 channels830nm LD, 48 channels405nm LD, 32 channels405nm LD, 48 channels
Output speed15p/h(745mm*605mm)25p/h(745mm*605mm)15p/h(745mm*605mm)25p/h(745mm*605mm)
Exposure StructureExternal drum
Plate sizeMax. 830mm*660mm; Min. 450 mm*340mm
Plate thicknessThermal830nm0.150.4mmUV405nm0.150.4mm
Max hanged line300lpi
FM dots output15um
Power supplyAC 220V AC/50HZ-60HZ  4.5KW (Single phase)
External dimensionL*W*H=1950mm*1120mm*1130mm  1200kg
