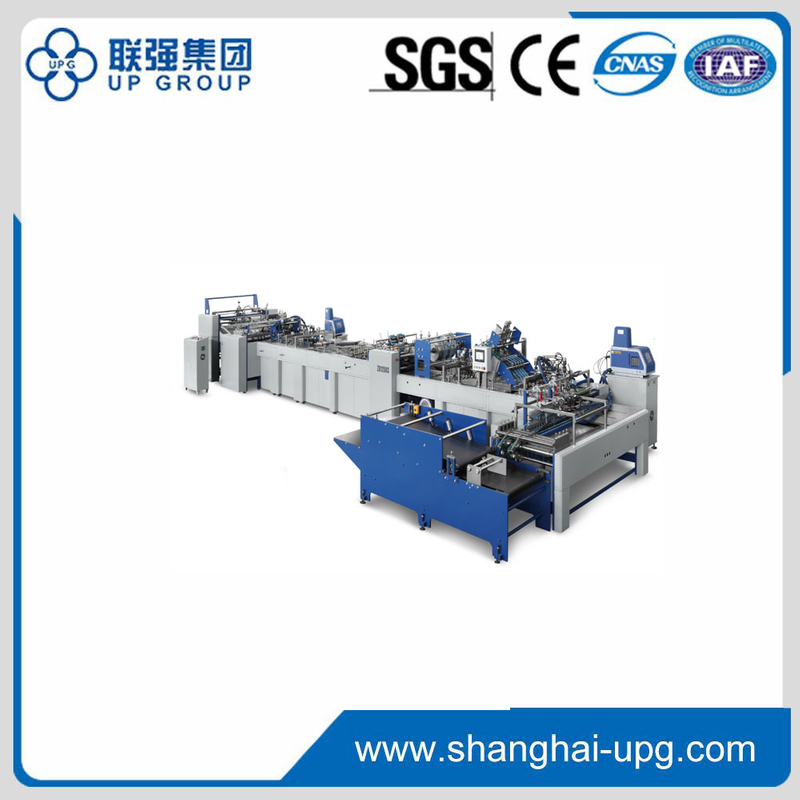

LQ-Z1250S
LQ
Performance
Adopt the PLC programmable control, frequency control technology to realize the integral multi- dimensional control, more centralized control and single point remote control operating. with characteristics of good quality and high efficiency, its technology ranks leading level in domestic similar products.
Top folding joint type: Insert pasting
Features
1) Feeder: enhanced prestack paper feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.
2) Front and side guides positioning system
3) Top folding system
4) Both water soluable cold glue and hot melt glue
5) Formation version making gusset system
6) Insert reinforced paper system
7) Bottom spray gluing system
8) Automatic bottom sealing system
9) Configuration bags compaction table
Performance
Adopt the PLC programmable control, frequency control technology to realize the integral multi- dimensional control, more centralized control and single point remote control operating. with characteristics of good quality and high efficiency, its technology ranks leading level in domestic similar products.
Top folding joint type: Insert pasting
Features
1) Feeder: enhanced prestack paper feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.
2) Front and side guides positioning system
3) Top folding system
4) Both water soluable cold glue and hot melt glue
5) Formation version making gusset system
6) Insert reinforced paper system
7) Bottom spray gluing system
8) Automatic bottom sealing system
9) Configuration bags compaction table
Max. sheet (LXW) | 1200x600mm |
Min. sheet (LXW) | 560x350mm |
Sheet Weight | 200g-350g/m2 |
Bottom Width | 90-170mm |
Bag Width | 180-430mm |
Top Folding Deepth | 30-70mm |
Total Power | 20kw |
Machine Size | 18200x2400x1800mm |
Speed | 50-70bags/min |
Total Weight | 8T |
Glue Type | Water soluble cold glue (hot-melt glue) |
Suitable paper
A | B | C | D | E | F | |
Max. Size | 1200 | 600 | 170 | 430 | 500 | 70 |
Min. Size | 560 | 350 | 90 | 180 | 250 | 30 |
Max. sheet (LXW) | 1200x600mm |
Min. sheet (LXW) | 560x350mm |
Sheet Weight | 200g-350g/m2 |
Bottom Width | 90-170mm |
Bag Width | 180-430mm |
Top Folding Deepth | 30-70mm |
Total Power | 20kw |
Machine Size | 18200x2400x1800mm |
Speed | 50-70bags/min |
Total Weight | 8T |
Glue Type | Water soluble cold glue (hot-melt glue) |
Suitable paper
A | B | C | D | E | F | |
Max. Size | 1200 | 600 | 170 | 430 | 500 | 70 |
Min. Size | 560 | 350 | 90 | 180 | 250 | 30 |
