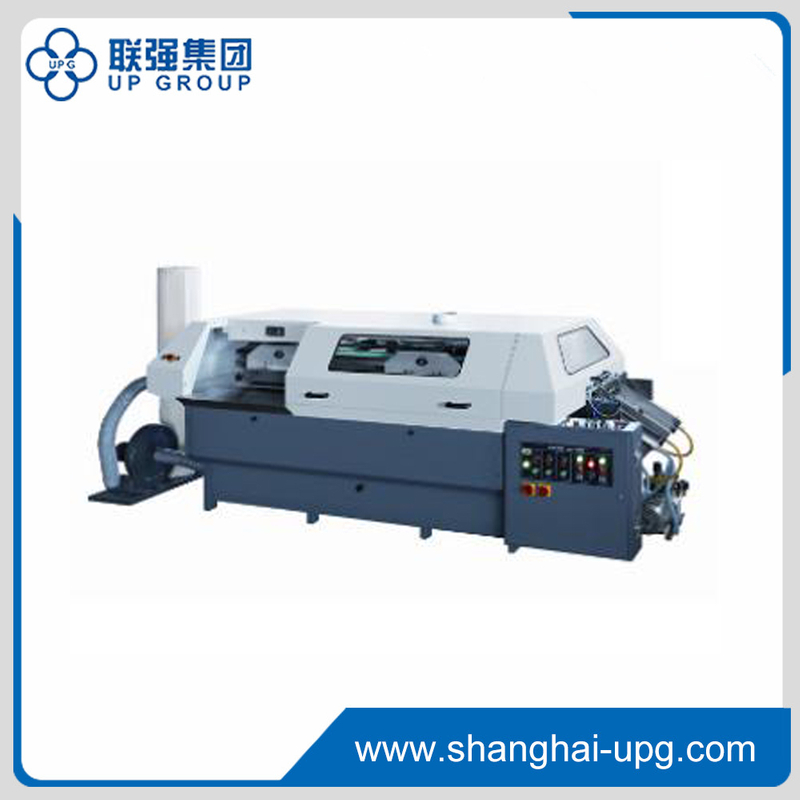

LQBT50/4D Ellipse Binding Machine
LQBT50/4D Ellipse Binding Machine
Share to:

LQBT50/4D Ellipse Binding Machine

LQBT50/4D elliptic binding machine is a eco-friendly binder, and transmitted through 4 book-clamps. Avoiding driven inertia of traditional circular binders too large which results gaps among shafts easier.

Quantity:
Inquire Add to Basket

  • LQBT50/4D
  • UPG

  1. 1. LQBT50/4D elliptic binding machine is a eco-friendly binder, and transmitted through 4 book-clamps. Avoiding driven inertia of traditional circular binders too large which results gaps among shafts easier.
  2. 2. This machine is offered the book core manually and then automatically finishes the following 10 procedures:
  1. Raking
  2. Grooving
  3. Back gluing
  4. Side gluing
  5. Cover impressing
  6. Cover feeding
  7. Compressing cover and book core
  8. Book spine pressing
  9. Finished-product output
  10. Cooling, till final nice products
  1. 3. LQBT50/4D elliptic binding machine adopts multiple advanced technologies such as speed control by frequency variation, PID temperature control, photoelectric identification, automatic detection control etc. And it also adopts imported electric element and pneumatic element, which can enhance the dependability of the machine greatly. It is convenient to operate and adjust, and is perfected by the attached paper scraps suction device and pumping device. This machine is not only used as a thread binding, but also perfect binding, this binder can be used for either thread or perfect binding, so it is an ideal equipment for perfect or thread book binding in various printing house and community college printing offices.
Max binding speed 600 Books per hour
Binding thickness 3-50mm
Binding width Max.420*160mm,370*300mm
Min.150*130mm
Glue temperature Max.180oC,Min.120oC
Motor power 8KW
Weight 800KGS
Measurement 2600*720*1220mm
Power supply 380V 50HZ Three-phases four-lines
