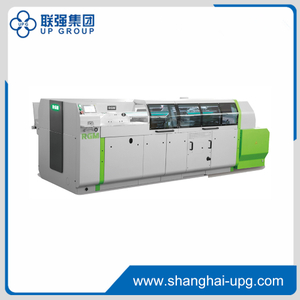

LQBT50/4E Ellipse Binding Machine

LQBT50/4E ellipse glue-binding covering machine is high-tech glue-binding covering machine in 21st century, which is driven by 4 book end chain form,and avoids the too much driving momentum in traditional disk covering machine and the intermittent problems easily happened between the axes.
Availability:
Quantity:

PDF Export

LQBT50/4E Ellipse Binding Machine
  • LQBT50/4E

  • UPG

LQBT50/4E ellipse glue-binding covering machine is high-tech glue-binding covering machine in 21st century, which is driven by 4 book end chain form,and avoids the too much driving momentum in traditional disk covering machine and the intermittent problems easily happened between the axes.
This machine uses frequency conversion speed adjustment control, PLC programmable controller, photoelectrical identificationautomatic check control and touch screen and many other advanced technologies. There is digital display function in the glue breaking function back and forthmill back, glue breaking glue pot and covering adjustment in gluing in the back. The press track wheel has micro adjustment functions constantly, and the book acceptance structure is level method and protects the book back farming in better way. This machine not only uses lock line gluing packagingbut also unwiring gluing packagingwhich is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of
wide-range universities.

Binding size  Max: 450*320mm, Min: 150*105mm
Binding thickness 2-50mm
Binding speed Max:2000 books/hour
Power 14kw
Overall dimension 3100x1330x1250mm
Machine weight 2100kg
