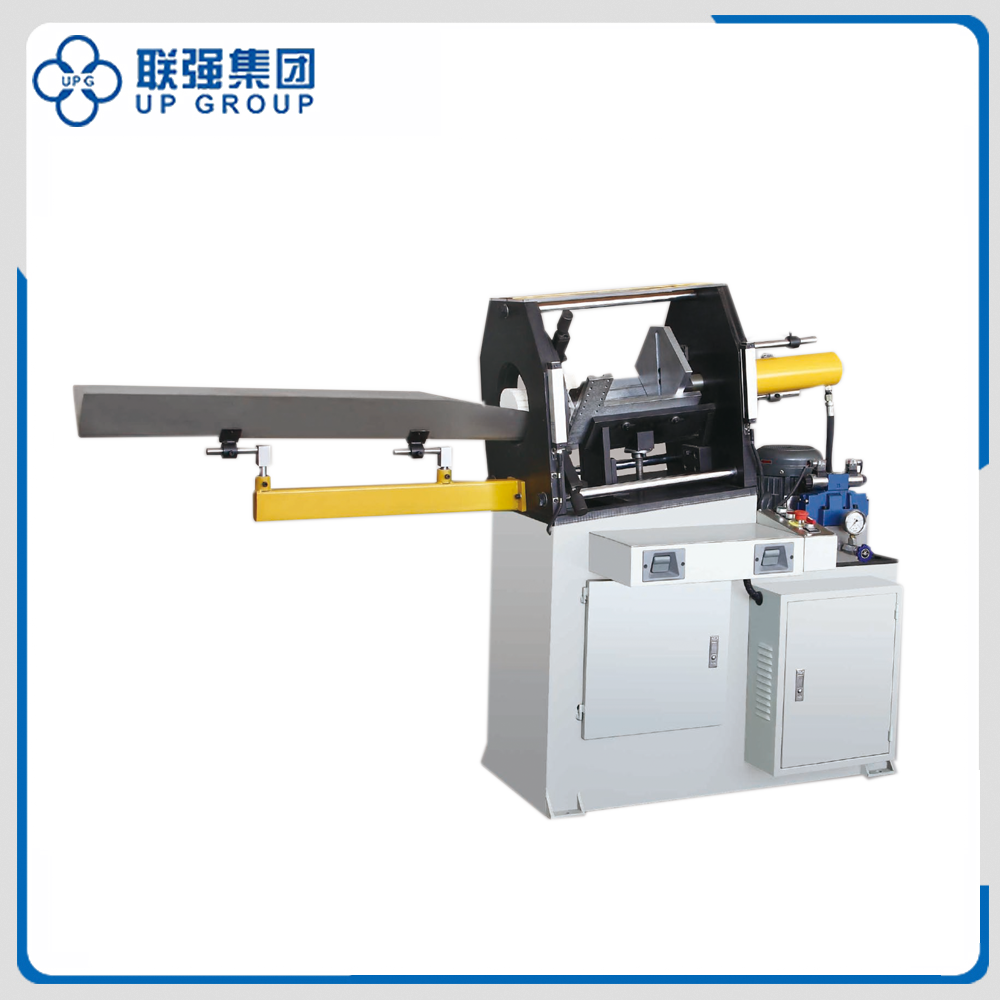

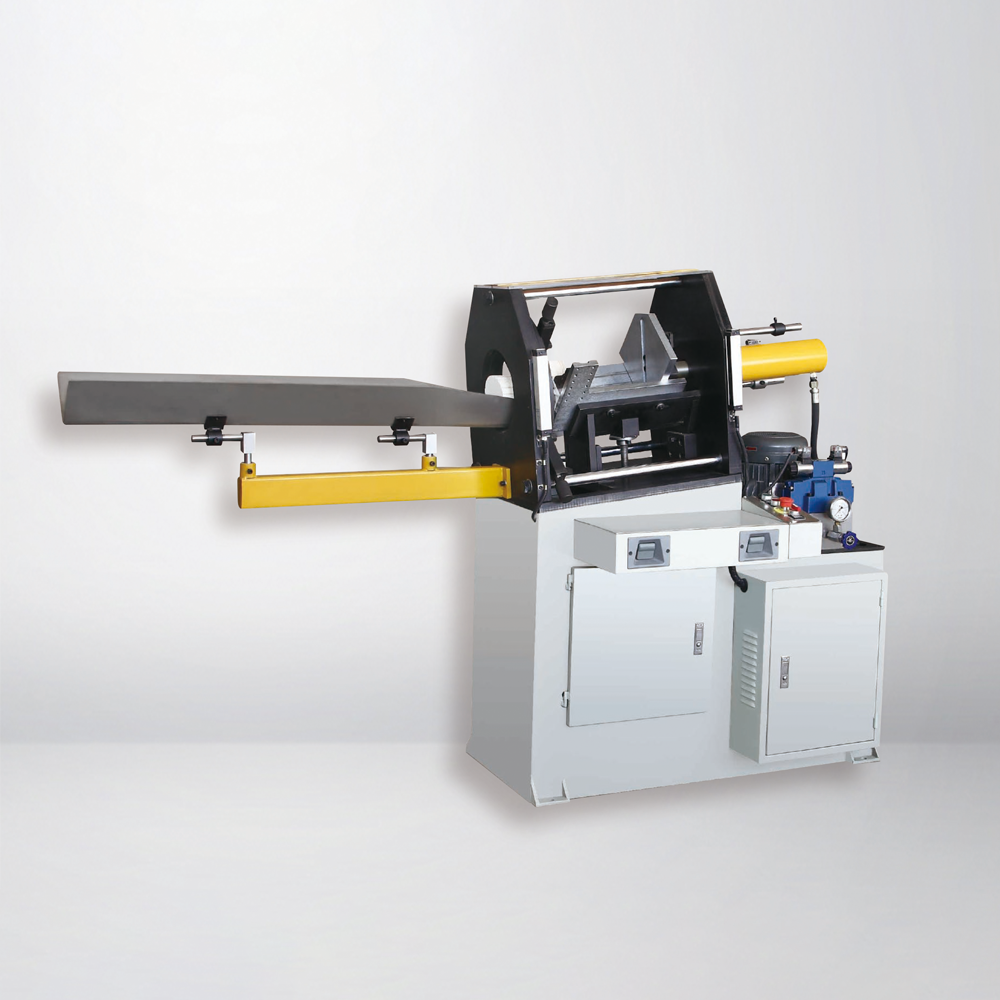

LQPM-150/220/280/400/500 Label Punching Machine

Availability:
Quantity:

PDF Export

LQPM-150/220/280/400/500 Label Punching Machine
LQPM-150/220/280/400/500 Label Punching Machine
  • LQPM-150/220/280/400/500

  • UPG

LQPM Series label Punching machine is main product of our company. it is Suitable for the production of labels plaving cards, aluminum plastic, New Year's card, note book, envelopes of any desian or size. With an average production of about 900.000 production of high precision hourly.This machine adopts hydraulic pressure system With a push-cube self-adjusting to every position of the "V" hold where the pack is positioned in order to obtain a homogeneous pression and distrilbution of the paper .the working table has a photoelectric cell which gives maximum safety to the operator and allows a auick change of the hollow punch and is adaptable both for low and medium conduction, The workina process is comoletely stability, The die cutting products surface is smooth, and the size is unified and regular with high precision.

ModelLQPM-400LQPM-500
Max270x270mm350x350mm
Min120x120mm150x150mm
Joumey250mm250mm
Pressure50KN50KN
Speed8 Beats/Min8 Beats/Min
Power4kw4kw
Weight900kg1140kg
Size2500x1040x1600 mm2500x1040x1660 mm
