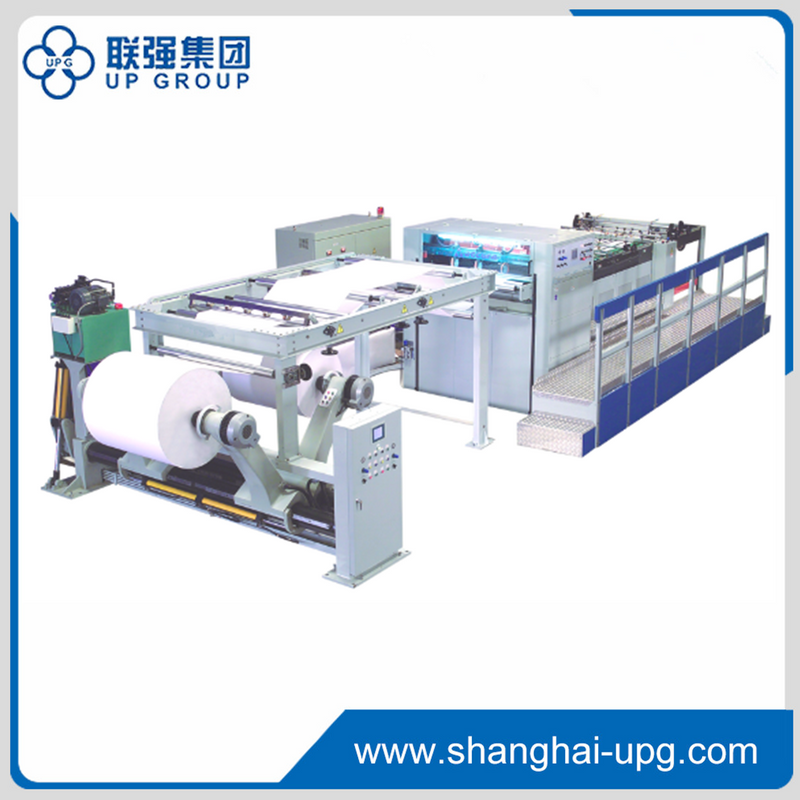

ACCURA Apex Series High-Speed Sheeting Machine

Accura High speed sheeters are composed by unwind stand section, Cutting/sheeting section, conveyor section, layboy section.

Quantity:
  • UPG

Q: The difference between single-pole and double-pole machines.

A: The upper blade of the single-knife cross-cutting knife is made of high-strength cast iron and has undergone strict dynamic balance testing. The lower blade is fixed on the lower knife holder, The Synchro-Fly twin cutter has two sets of tool shaft synchronous rotation up and down to cut. Driven by servomotor, the upper and lower axes are cut at the same speed. Compared with the single-cutter machine, the finished paper processed in this way has smooth edges, which are not easy to produce rough edges and grooves, has good incision, less dust, higher precision and no need for straight angle adjustment device.


Q: Can the model be customized?

A: Yes, because of different paper, thin paper, thick paper, anti-scratch, special paper, etc., different models are needed to achieve it, such as replacing the device to protect the paper from scratches, so as to ensure the printing effect of paper products.


Q: How to control the roll tension.

A: PLC fully automatic tension control system, no need manual adjustment. After leveling, paper feeds into diameter based auto tension control system which can adjust tension automatically by PLC. The tension control is important to ensure the cutting accuracy and speed relationship.


Q: How to modify the paper side

A: Three trimming knives are optional. The pneumatic tool holder is mounted on the holder with dovetail guide rail, which ensures the strong rigidity of the holder. The user can move the pneumatic tool holder to the desired position according to the size of the tool holder, start the air valve of the holder, and conduct the alignment of the upper and lower slitters. Fix upper and lower holders after fine adjustment.The slitters can trim the paper following the paper feeding direction. In that way, the ideal effect can be achieved


Q: Whether has the CE certificate?

A: Yes, We have.


Item

Model:1400

Web width range

400 mm to 1400 mm

(16”to 55”)

Sheet length range

450 mm to 1400 mm

(18”to 55”)


Pile height including Pallet


1450 mm

Gross pile weight

2000 kg

Mechanical linear speed

300 meters/min.

300m/min

Knife load-cross cutter

up to 500 GSM

500g

Sheet squareness

≤+/-0.5 mm

Sheet length accuracy

≤+/-0.5 mm

Mechanical Floor area

See floor plan

Size Model

APEX

140(55〝)

APEX

165(65〝)

APEX  190(75〝)

APEX

280(110〝)

Maximum Reel Diameter
Using Standard the H-Type 4-Roll Unwind
Using Reelmaster 2-Roll Shaftless Unwind


120 cm

(47〝)

165 cm

(65〝)



120 cm

(47〝)

165 cm

(65〝)


(End-Users’option/preference)
(End-Users’option/preference)
Maximum Web Diameter
Using Standard the H-Type 4-Roll Unwind
Using Reelmaster 2-Roll Shaftless Unwind


140 cm

(55〝)

165 cm

(65〝)



165 cm

(65〝)

165 cm

(65〝)



190 cm

(75〝)



280 cm

(110〝)




(End-Users’option/preference)
Maximum Linear Web Speed
Cutting 1 Roll of 200 GSM Board
 300 m/min. 300 m/min. 300 m/min. 300 m/min.
Maximum Cut Frequency
Cutting 1 Roll of 200 GSM Board
 400 cuts/min. 400 cuts/min. Simplex Cutter: 400 cuts/min
Duplex Cutter: 400×2 cuts/min
Maximum Knife Load500 GSM600 GSM600 GSM600 GSM
Sheet Length Range40~140 cm (16〝~55〝)40~165 cm
(16〝~65〝)
40~160 cm
(16〝~63〝)
40~150 cm
(16〝~60〝)
Maximum Gross Pile Height

150 cm

(60〝)

150 cm

(60〝)

180 cm

(70〝)

250 cm

(98〝)

Maximum Gross Pile Weight1500 KG
(3300 lbs.)
2000 KG
(4400 lbs.)
2500 KG
(5500 lbs.)
2500 KG
(5500 lbs.)
Electrical Power Load22 KW30 KW40 KW50 KW

50 / 60 Hz  ;  220 / 380 / 415 / 440 Volts  ;  3 Phase
