LQ-BTF-50
UPG
1. It is widely used for the products which need packed into the cartons, common industries such as household appliances, textile, foodstuff, pharmaceutical, chemical.
2. The carton sealer adopts international advanced technology, assemble famous brands of electrical and pneumatic parts.
3. It could be adjusted manually to adapt different specifications of cartons which are in the adjusting range of this machine.
4. It is easy and convenient to operate, adjust. High efficient of carton sealing.
5. Assemble with the knife protecting device to avoid harm to the operator during the machine running.
6. The mechanical parts with the features of high precision and durable. Running stable without vibration during the working process.
7. It could be used alone or linked with other related equipments as a automatic packaging line.
1. It is widely used for the products which need packed into the cartons, common industries such as household appliances, textile, foodstuff, pharmaceutical, chemical.
2. The carton sealer adopts international advanced technology, assemble famous brands of electrical and pneumatic parts.
3. It could be adjusted manually to adapt different specifications of cartons which are in the adjusting range of this machine.
4. It is easy and convenient to operate, adjust. High efficient of carton sealing.
5. Assemble with the knife protecting device to avoid harm to the operator during the machine running.
6. The mechanical parts with the features of high precision and durable. Running stable without vibration during the working process.
7. It could be used alone or linked with other related equipments as a automatic packaging line.

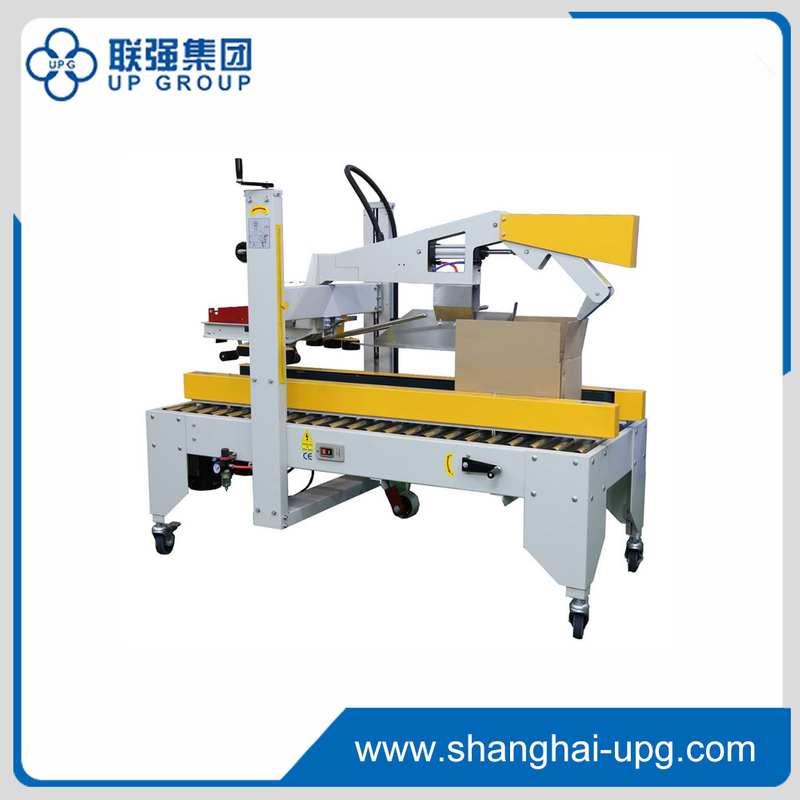

Model/Name | LQ-BTF-50 Claps Folding Carton Sealer |
Loading Weight | ≤15 kg |
Carton Size Range | L200-600*W150-500*H150-500 mm |
Adhesive Tape Spec. | Width: 48/60/75mm |
Working Capacity | Around 20 cartons/min |
Compressed Air Pressure | 0.6-0.7 Mpa |
Conveying Speed | 18m/min |
Total Power | 0.4 kw |
Power Supply | 220V/50HZ/Single Phase |
Net Weight | 250 kg |
Overall Dimensions | L1770×W850×H1520 mm |
Model/Name | LQ-BTF-50 Claps Folding Carton Sealer |
Loading Weight | ≤15 kg |
Carton Size Range | L200-600*W150-500*H150-500 mm |
Adhesive Tape Spec. | Width: 48/60/75mm |
Working Capacity | Around 20 cartons/min |
Compressed Air Pressure | 0.6-0.7 Mpa |
Conveying Speed | 18m/min |
Total Power | 0.4 kw |
Power Supply | 220V/50HZ/Single Phase |
Net Weight | 250 kg |
Overall Dimensions | L1770×W850×H1520 mm |

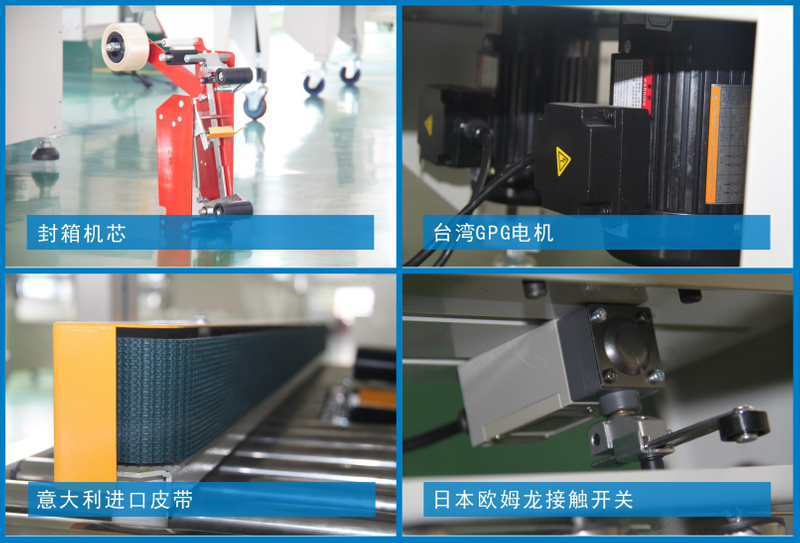

Motor | GPG(TAIWAN-CHINA) |
Contact Switch | OMRON(JAPAN) |
Intermediate Relay | IDEC(JAPAN) |
Indication Light | |
AC Contactor | SCHNEIDER(FRANCE) |
Air Cylinder | AIRTAC(TAIWAN-CHINA) |
Bearing | C&U GROUP(CHINA) |
SKD11 Knife | JAPAN |
Transmission Belt | ITALY |
Casters | EDL(CHINA) |
Motor | GPG(TAIWAN-CHINA) |
Contact Switch | OMRON(JAPAN) |
Intermediate Relay | IDEC(JAPAN) |
Indication Light | |
AC Contactor | SCHNEIDER(FRANCE) |
Air Cylinder | AIRTAC(TAIWAN-CHINA) |
Bearing | C&U GROUP(CHINA) |
SKD11 Knife | JAPAN |
Transmission Belt | ITALY |
Casters | EDL(CHINA) |
