Features
Pressure preset
Axial electric alignment, Circumferential electric alignment, Diagonal electric alignment
Alcohol dampening system
Shoulder iron for cylinders
Water roll motor drive, stepless speed regulation
Ink-color remote control system
Drum arrangement at 5 o'clock position
Printing cylinders supported by rolling bearings
Pneumatic control for water separation, ink separation, and pressure on/off
The surface of the printing cylinders coated with stainless steel
Features
Pressure preset
Axial electric alignment, Circumferential electric alignment, Diagonal electric alignment
Alcohol dampening system
Shoulder iron for cylinders
Water roll motor drive, stepless speed regulation
Ink-color remote control system
Drum arrangement at 5 o'clock position
Printing cylinders supported by rolling bearings
Pneumatic control for water separation, ink separation, and pressure on/off
The surface of the printing cylinders coated with stainless steel

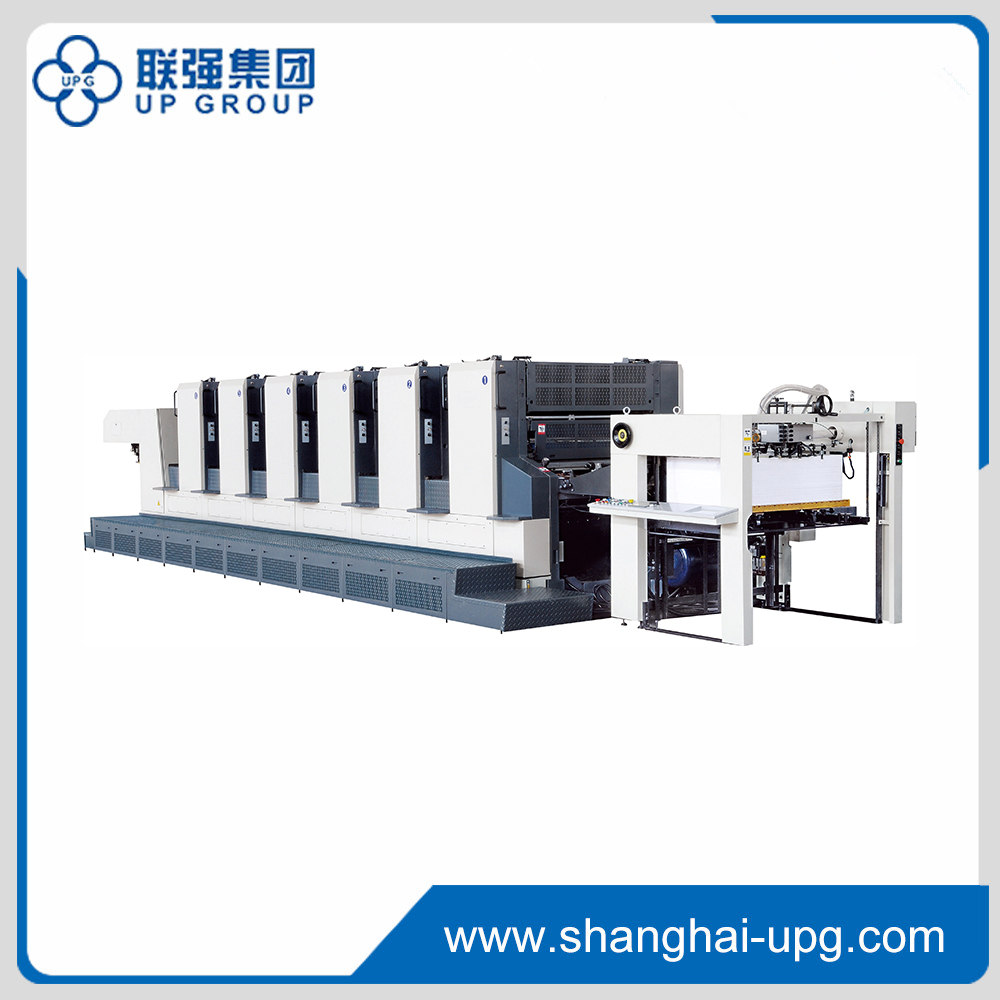

| Model | LQ-MD 103 |
| Max. Sheet Size | 1030x720 mm |
| Min. Sheet Size | 520x360 mm |
| Max. Printing Size | 1020x705 mm |
| Paper Thickness | 0.04-0.6 mm |
| Blanket Size (with clip) | 1040x900x1.95 mm |
| Plate Size | 1030x800x0.3 mm |
| Max. Speed | 12000 s/h |
| Paper Pile Height | Feeder: 1150 mm; Delivery: 1150 mm |
| Main Motor Power | 30 kw (four color)/37 kw (five color)/45 kw (six color) |
| Total Weight | 35150 kg (four color)/41500 kg (five color)/47800 kg (six color) |
| Overall Dimension | 9240x3390x2408 mm(four color)
10440x3390x2408 mm(five color
11640x3390x2408 mm(six color) |
| Model | LQ-MD 103 |
| Max. Sheet Size | 1030x720 mm |
| Min. Sheet Size | 520x360 mm |
| Max. Printing Size | 1020x705 mm |
| Paper Thickness | 0.04-0.6 mm |
| Blanket Size (with clip) | 1040x900x1.95 mm |
| Plate Size | 1030x800x0.3 mm |
| Max. Speed | 12000 s/h |
| Paper Pile Height | Feeder: 1150 mm; Delivery: 1150 mm |
| Main Motor Power | 30 kw (four color)/37 kw (five color)/45 kw (six color) |
| Total Weight | 35150 kg (four color)/41500 kg (five color)/47800 kg (six color) |
| Overall Dimension | 9240x3390x2408 mm(four color)
10440x3390x2408 mm(five color
11640x3390x2408 mm(six color) |
