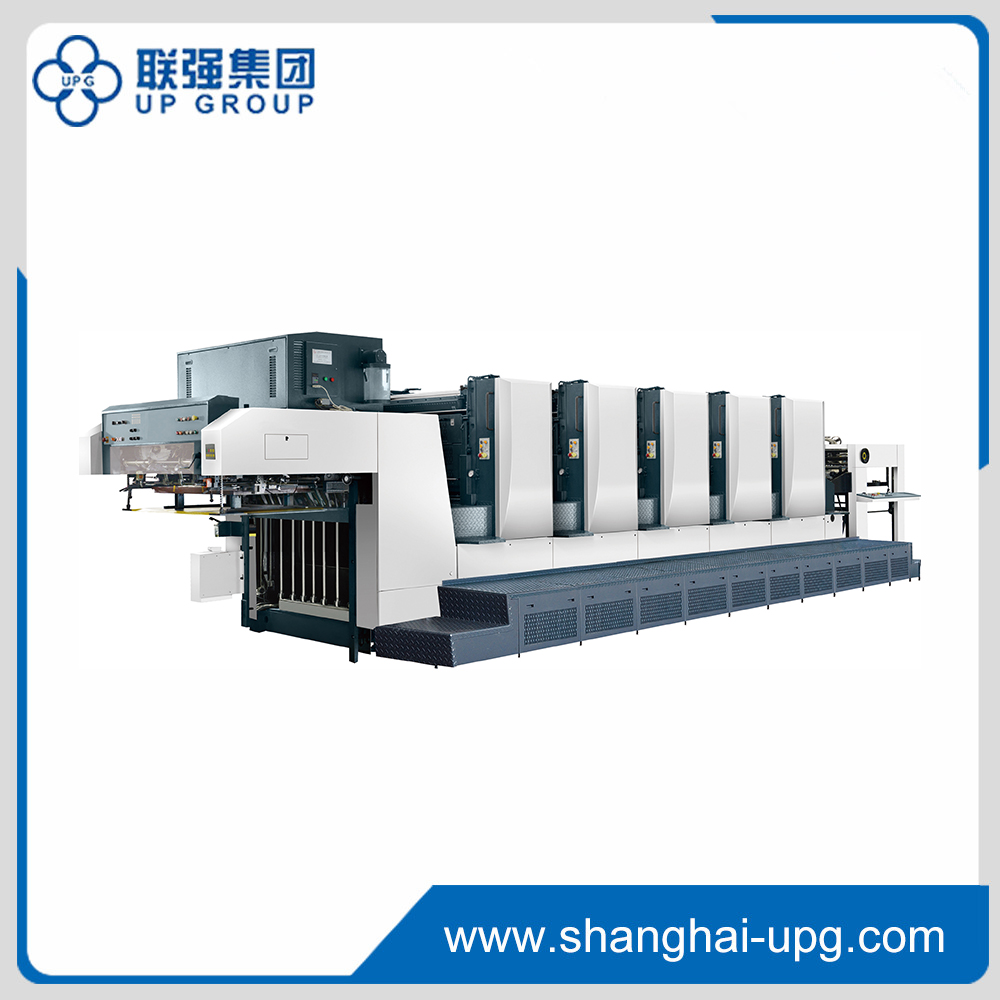

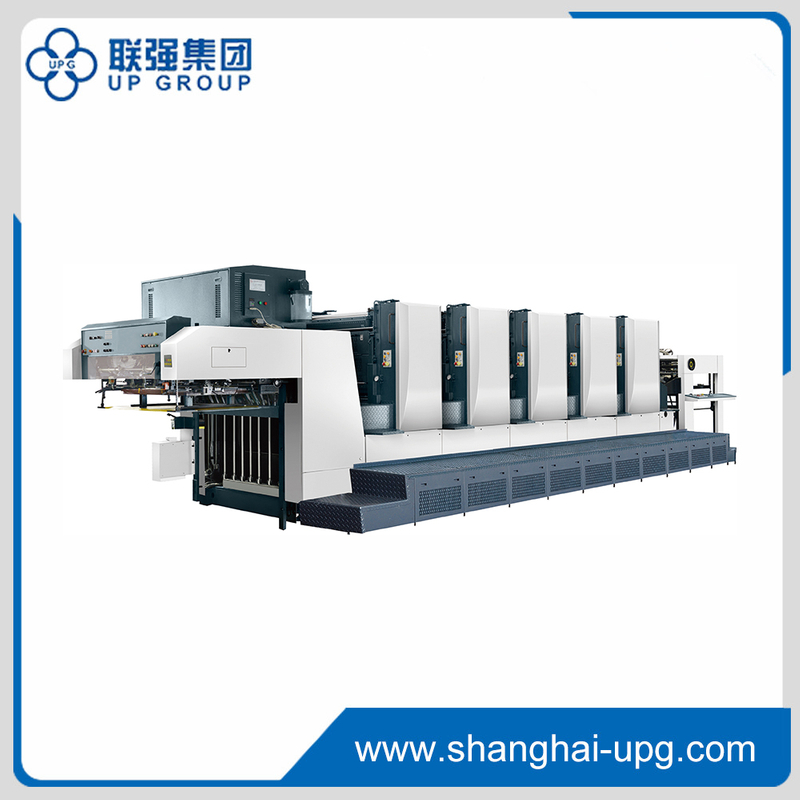

LQ-MD 118
UPG
Features
Pressure preset
Axial electric alignment, Circumferential electric alignment, Diagonal electric alignment
Alcohol dampening system
Shoulder iron for cylinders
Water roll motor drive, stepless speed regulation
Ink-color remote control system
Drum arrangement at 5 o'clock position
Printing cylinders supported by rolling bearings
Pneumatic control for water separation, ink separation, and pressure on/off
The surface of the printing cylinders coated with stainless steel
| Model | LQ-MD 118 |
| Max.Paper Size | 1200x720mm |
| Min.Paper Size | 600x360mm |
| Max.Printing Size | 1180x705mm |
| Sheet Thickness | 0.04-0.6mm |
| Blanket Size | 1210x900x1.95 mm |
| Plate Size (With Aluminum Clip) | 1200x800x0.3mm |
| Max. Speed | 10000 s/h |
| Paper Pile Height | 1150 mm |
| Main Motor Power (Five Color) | 45 kw |
| Total Power (Five Color) | 63.8 kw |
| Weight (Five Color) | 47500 kg |
| Overall domensions (Five Color) | 10440x3560x2408 mm |
