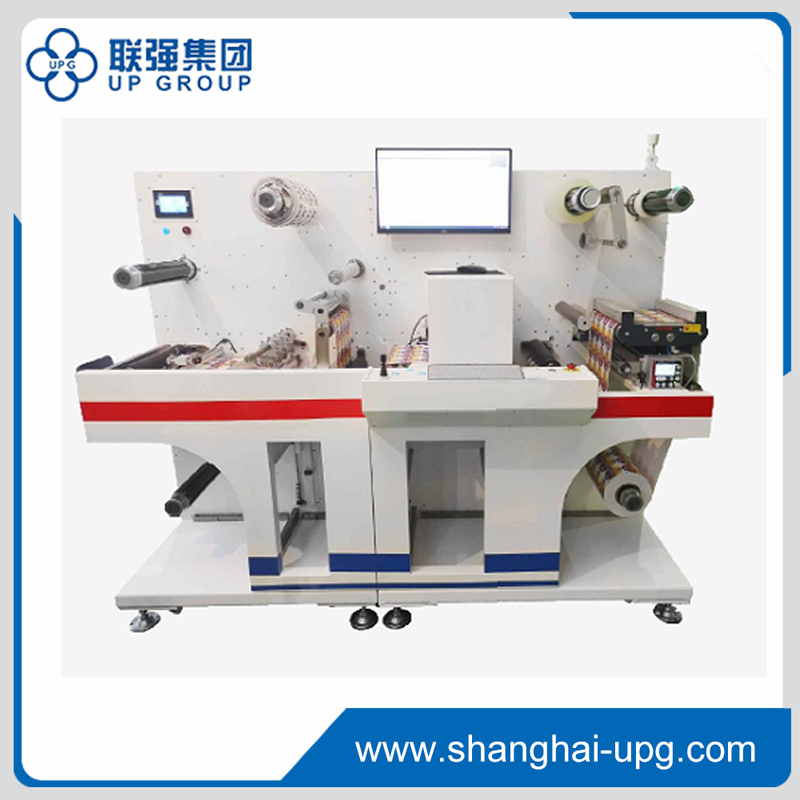

LQ-MD 3350 Digital Cutting Machine

Availability:
Quantity:
  • UPG-3350

  • UPG

· Fast and high precision on cutting performance with full servo motor system.

· Fully automatic tension and feeding control.

· Intelligent location system driven by camera which allow the cutter to detect cutting files automatically.

· Standard 4 cutting heads and the gap between each cutting heads can be adjusted automatically.

· Max 3 cutting unit 12 cutting heads working together.

· Intelligent cutting with trajectory optimization.



High precision feeding system

Utilize BST web guiding system to make sure the prefect feeding precision.

 1


Cold laminating system

Cold laminating be integrated on LQ-MD 3350 as a part of finishing solution to make the labels bright and give customer an one pack service on one machine.

 微信截图_20210324142525


Digital die-cutting system

LQ-MD 3350 use high precision screw transmission system. Max speed can touch 9m/min. 4 cutting heads on one cutting unit are be controlled individually, combine with the software, UPG-3350 can adjust the distance between each cutting head and make each of them on or off.

 33


CCD system

With CCD camera position and identify system, LQ-MD 3350 can recognize the sequence, can realize the function of changing cutting file automatically.

 4


Waste removing system

The high-precision machinery design can control the roller rotating uniformly and avoid the discontinuously removing of wastage and keep the finishing label clean.

 5


Slitting system

Utilize rotary slitting mode which can be extended to max 15 blades and highest cutting speed is 50m/min

 6



Max.media roller

Diameter 450mm

Cutting media width

40-350mm

Max.label width

330mm

Min.label length

10mm

Max.label length

600mm

Cutting speed

Max. 9m per minute for one cutting unit (depend on label shape and size)

Cutting blades

Max. 4 pcs/unit, 12pcx/3unit

Slitting blades

Max. 15 pcs

Slitting width

10-310mm

Cutting and   slitting precision

±0.1mm

Machine size(W×D×H)

2000×1195×1575m

Machine weigh

520kg

Power

110-127VAC, 50-60Hz, 1000WATTS

220-240VAC, 50-60Hz, 1000WATTS
