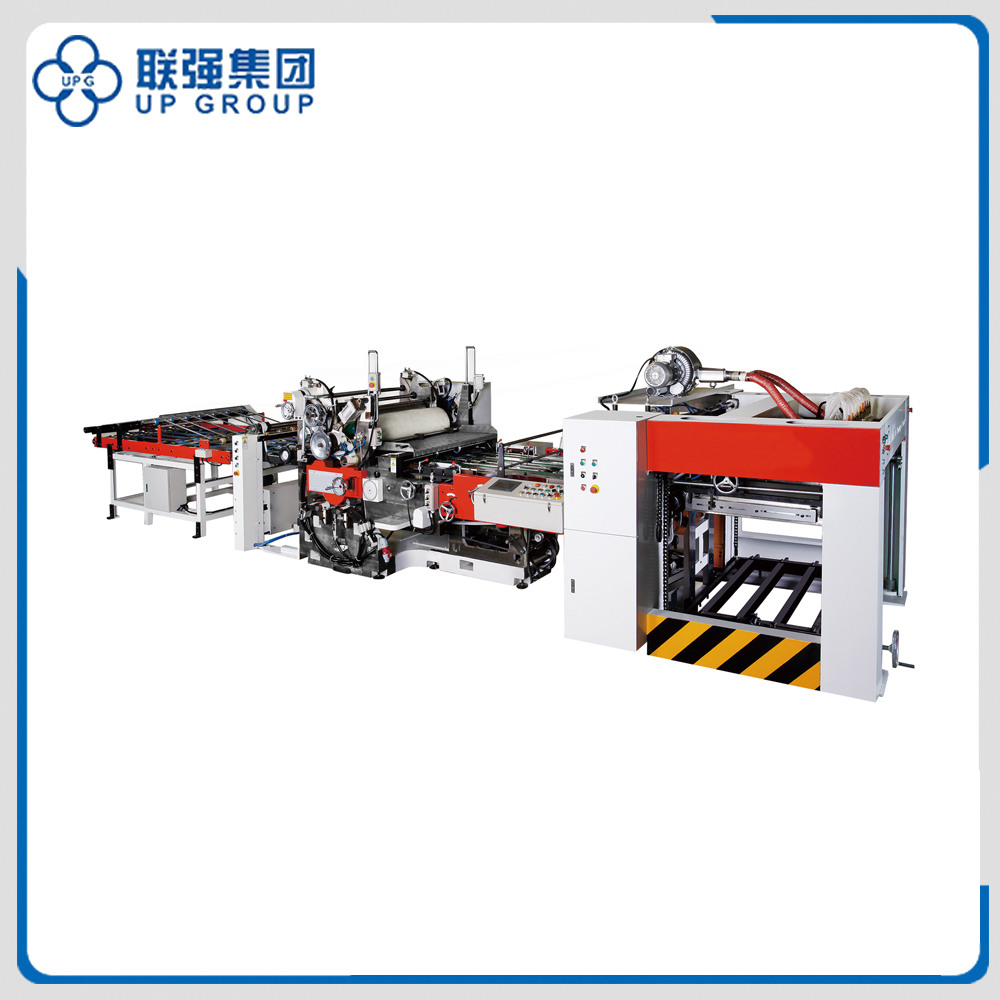

LQ-MD 45_50 Metal Sheet Coating Machine

LQ-MD45 metal sheet coating machine is a high-precision, automatic coating machine with vertical and horizonta blanking function, which is suitable for primer coating or vamishing on tinplate, aluminum and other metal sheets is one ofnecessary equipment for enterprises.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
LQ-MD 45_50 Metal Sheet Coating Machine

  • LQ-MD 45_50

  • UPG

LQ-MD45 metal sheet coating machine is a high-precision, automatic coating machine with vertical and horizonta blanking function, which is suitable for primer coating or vamishing on tinplate, aluminum and other metal sheets is one ofnecessary equipment for enterprises.

1.Coating roller and impression roller are driven by a single converter motor.
2.The rubber rollers are connected with stub shafts, which is convenient for replacement.
3.The circumference position of rubber rollers could be adjusted without stopping, adjustment range t 1 1mm.
4.The coating thickness could be also adjusted without stopping, which could adjust single side individually or both sides at one time.
5.All clutches are driven by air cylinders with simple structure and reliable operation.
6.Adopting double-scrapers to ensure that no coating on backside of sheet.
7.Pressure of scraper is adjusted by air pressure, which is easy to operate.
8.Using the front and side guides for positioning with high precision blanking.
9.Synchronization between Feeder and Coater could be adjusted electrically without stopping, which efficiently shorten the adiustment time.
10.Pusher drive is coupled with electromagnetic clutch., synchronous adjustment is very convenient.


ModelLQ-MD45LQ-MD50
Max. Coating Speed6000 p/h6000 p/h
Max.Metal Sheet Size1145*965 mm1200*1000 mm
Min.Metal Sheet Size680*480 mm712*508 mm
Metal Sheet Thickness0.16~0.6 mm0.16~0.6 mm
Rubber Roller Diameterф324~ф339 mm(full coating)
ф329 mm(partial coating)		ф350~ф360 mm(full coating)
Impression Rollerф220 mmф220 mm
Diameterф200 mmф200 mm
Main Motor Power7.5 kw7.5 kw
Machine Net Weight6500 kg6500 kg
Machine Size (L*W*H)8785*2340*1950 mm (with inspection table)
6060*2340*1950 mm (without inspection table)		8985*2490*1950 mm (with inspection table)
6260*2490*1950 mm (without inspection table)


download Sheet Metal Printing and Coating Machines.pdf
