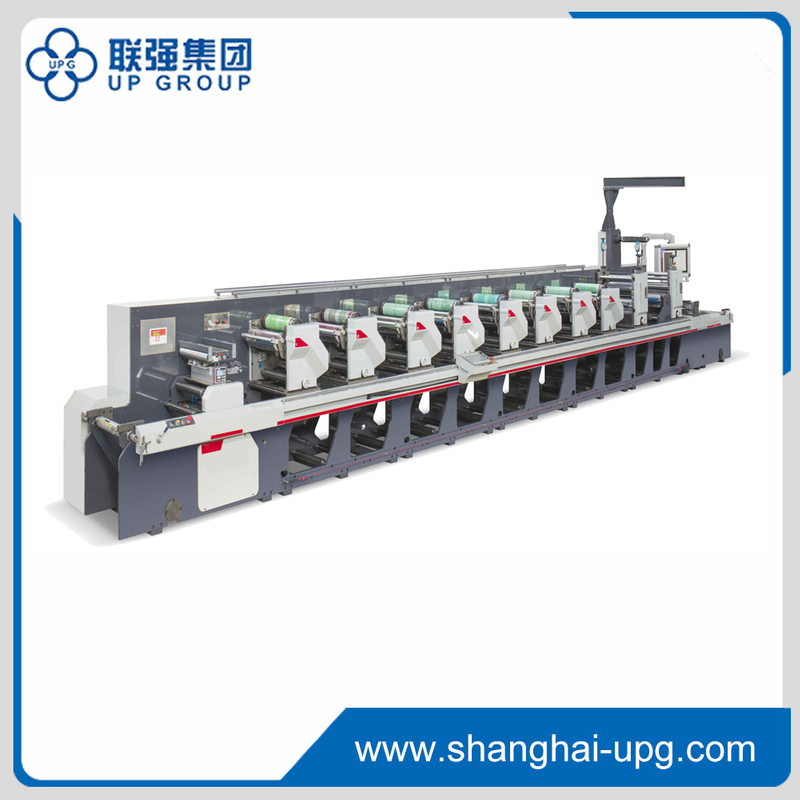

LQ Petal Flexographic Printing Machine

The LQHSG unit flexo presses is our newest machine which aimed to produce high quality label with high speed and IML label function ,This machine compact size and short web path keeps wastage of material ,The full machine adopt all servo motor which keep the tension of film or paper smoothly and stable. It is best machine to print high quality label.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ
Brand:
UPG

The LQ-340 unit flexo presses is our newest machine which aimed to produce high quality label with high speed and IML label function ,This machine compact size and short web path keeps wastage of material ,The full machine adopt all servo motor which keep the tension of film or paper smoothly and stable. It is best machine to print high quality label.

Max.Web width	340mm	450mm	520mm
Max.Unwind Diameter	1050mm	1050mm	1050mm
Max.Rewind Diameter	1050mm	1050mm	1050mm
Max.printing speed	150m/min	150m/min	150m/min
Printing Precision accuracy	±0.1mm	±0.1mm	±0.1mm
Rotary die cutting accuracy	±0.15mm	±0.1mm	±0.1mm
Rang of printing	10”-24”	10”-24”	10”-24”
Max.label die cutting speed	100m/min	100m/min	100m/min
Pre –registration	Datelogic Color sensor	Datelogic Color sensor	Datelogic Color sensor
Material	All Paper material ,Aluminum material ,unsupport film
Thickness of material	0.02mm—0.35mm	0.02mm—0.35mm	0.02mm—0.35mm
Power	60KW 50/60HZ	70KW 50/60HZ	80KW 50/60HZ
Air Supply	0.8KPA	1.0KPA	1.2KPA
Max current	80A	90A	100A
Machine Weight	About 8000KG	About 8000KG	About 8000KG
Dimension	1250014501500	1250014501500	1250014501500

Max.Web width	340mm	450mm	520mm
Max.Unwind Diameter	1050mm	1050mm	1050mm
Max.Rewind Diameter	1050mm	1050mm	1050mm
Max.printing speed	150m/min	150m/min	150m/min
Printing Precision accuracy	±0.1mm	±0.1mm	±0.1mm
Rotary die cutting accuracy	±0.15mm	±0.1mm	±0.1mm
Rang of printing	10”-24”	10”-24”	10”-24”
Max.label die cutting speed	100m/min	100m/min	100m/min
Pre –registration	Datelogic Color sensor	Datelogic Color sensor	Datelogic Color sensor
Material	All Paper material ,Aluminum material ,unsupport film
Thickness of material	0.02mm—0.35mm	0.02mm—0.35mm	0.02mm—0.35mm
Power	60KW 50/60HZ	70KW 50/60HZ	80KW 50/60HZ
Air Supply	0.8KPA	1.0KPA	1.2KPA
Max current	80A	90A	100A
Machine Weight	About 8000KG	About 8000KG	About 8000KG
Dimension	1250014501500	1250014501500	1250014501500
