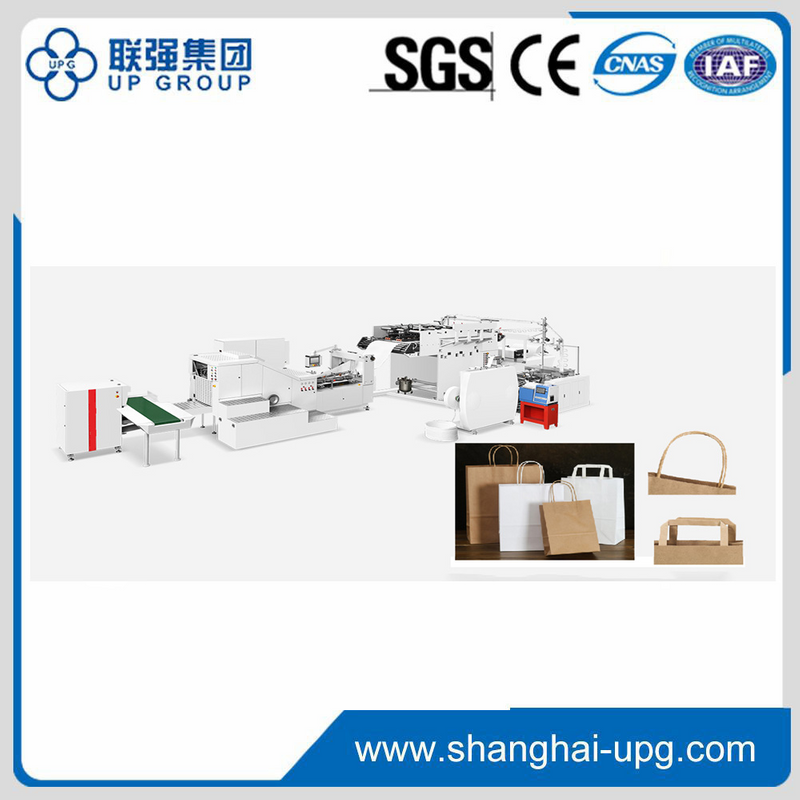

LQ-R330T/450T Fully automatic square bottom paper bag machine

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making.
Availability:
Quantity:
  • LQ-R330T/450T
  • LQ

The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.

√ Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
√ Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.
√ Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
√  Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
√ Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.





Model

LQ-R330T

Cutting length

270-530mm

Cutting length

270-430mm

Bag width

120-330mm

Bag width

200-330mm

Bottom width

60-180mm

Paper Thickness

60-150g/

Paper Thickness

80-150g/

Paper roll width

380-1050mm

Paper roll width

570-1050mm

Roll paper   diameter

ф1300mm

Paper core

ф76mm

Patch length

152mm

patch   width

50mm

Handle distance

75mm

Rope diameter

Ф3-5mm

Patch paper   roll width

100mm

patch paper roll   diameter

ф1200mm

patch paper   thickness

100-135g/

production   speed for bags without handles

30-180bags/min

production   speed for bags with handles

30-150bags/min

Bottom   folding type

Cutting knife

Sawtooth cutting


Power Supply

380V 3Phase

41.5KW

Machine weight

15000kg

Machine size

14000x6000x2400mm


 Model

LQ-R450T

Cutting   length

270-530mm

Cutting   length

270-430mm

Bag width

220-450mm

Bag width

240-450mm

Bottom width

90-180mm

Paper Thickness

80-150g/

Paper Thickness

80-150g/

Paper roll   width

590-1300mn

Paper roll   width

670-1300mm

Roll paper   diameter

ф1300mm

Paper core

ф76mm

Patch length

190mm

patch width

50mm

Handle length

340mm

Handle distance

95mm

Rope diameter

Ф3-5mm

Patch paper   roll width

100mm

patch paper roll   diameter

ф1200mm

patch paper   thickness

100-135g/

Machine Speed

30-180bags/min

production   speed for bags without handles

30-150bags/min

production   speed for bags with handles

30-130bags/min

Bottom   folding type

Cutting knife

Sawtooth cutting

Power Supply

380V 3Phase 41.5KW

Machine weight

15.5T

Machine size

14000x6000x2400mm

 Model

LQ-R450BT


Cutting   length

380-760mm

380-660mm


Bag width

220-450mm

240-450mm

Bottom width

80-220mm


Paper roll   width

630-1370mm

670-1370mm

Roll paper   diameter

ф1300mm

Paper core

ф76mm

Patch length

190mm

patch width

45-50mm

Handle length

350mm

Handle distance

95mm

Rope diameter

Ф3-5mm

Patch paper   roll width

100mm

patch paper roll   diameter

ф1300mm

patch paper   thickness

100-135g/

Machine Speed

30-150bags/min

production   speed for bags without handles

30-120bags/min

production   speed for bags with handles

30-130bags/min

Power Supply

380V 3Phase

43.5KW

Machine weight

16.5T

Machine size

16100x6500x2400mm

Bottom   folding type

Cutting knife

Sawtooth cutting
