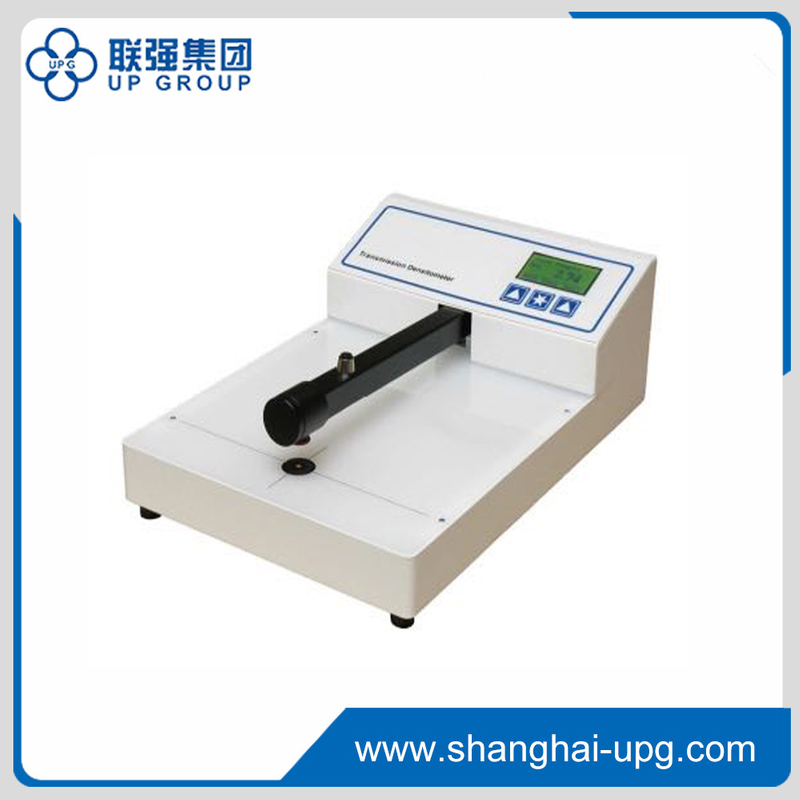

LQ-TBX1000 Transmission Densitometer

The TBX1000 Transmission Densitometer measures ISO Visual diffuse Optical Density (OD) to 6.60D. This wide measuring range allows evaluation of many types of film, laminates, and substrates.
  • LQ-TBX1000
  • UPG


Soft key menu operation

Advanced optical system to meet various industries’ specifications

7.5 inch throat to measure large samples

Readings are very repeatable with a high degree of accuracy

USB port standard

Software calibration

Switchable LED table lamps

Excellent for measuring optical densities of metallized films.


Optical Design                                             ANSI PH2.19

Display                                                       Graphical LCD (128x64 pixel)

Apertures                                                   1, 2, 3mm

Dimensions                                                13(L)x9(W)x4.5(H) inches (330x229x114 mm)

Throat Length (Arm)                                     7.5 inches (191mm)

Output Port                                                 USB

Power                                                       12V via universal 110/220VAC Adapter

Measuring Range                                                  0 to 6.60D

Accuracy                                                   ±0.02D

Precision                                                   ±0.01D

Warm-up Time                                                     None
