LQ-UV Flatbed Printer 9060
UPG
LQ-UV Flatbed Printer 9060
Advantage
1. Reliable boards system work on sable high precision machine body,it can work or any line.
2. Automatic stirring system for white ink and alarming system.Making sure non-stop working .Together with alarm function for ink shortage.
3. White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation
4. Carriage height could reach to 8cm;And it can work on 3 heads by varnish +white +color ,print speed faster ,and control easier.
5. Height could reach to 10cm; And it can work on 3 heads by varnish+white+color Print speed faster,and control easier.
6. Support for multiple printing on same picture by one time, fit for most special production request.
7. It occupies a small space and saves space.
8. Reduces the cost of maintaining the machine,High cost performance.
9. Carriage auto up & down system,conventional print height 7 cm. Order up to 20 cm. Trolley lift test printing can ensure the flatness of the printing platform.
Introduction
 |

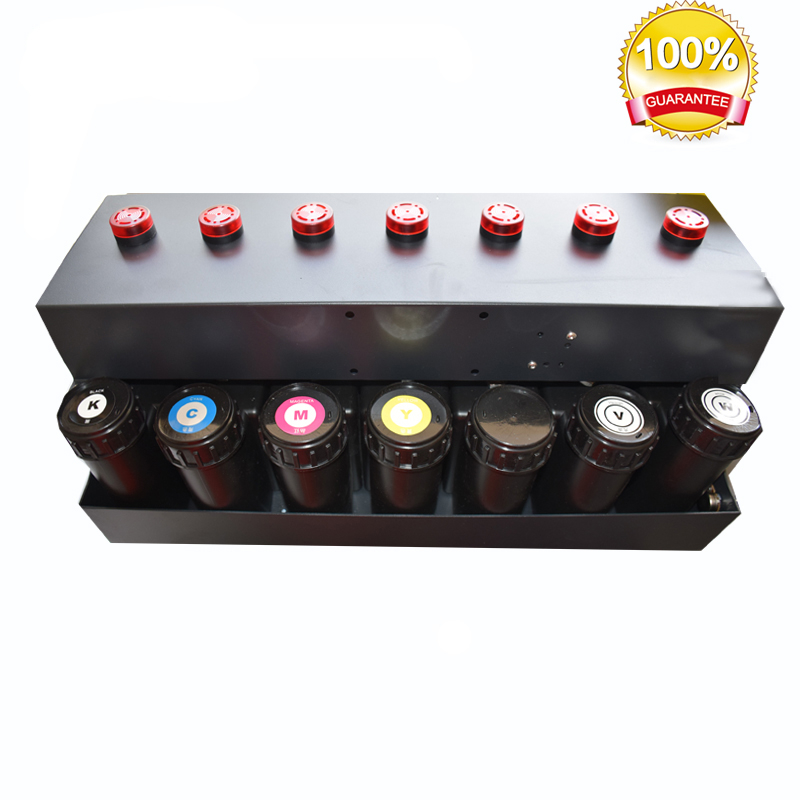

Ink cartridge with ink missing alarm system |
 |

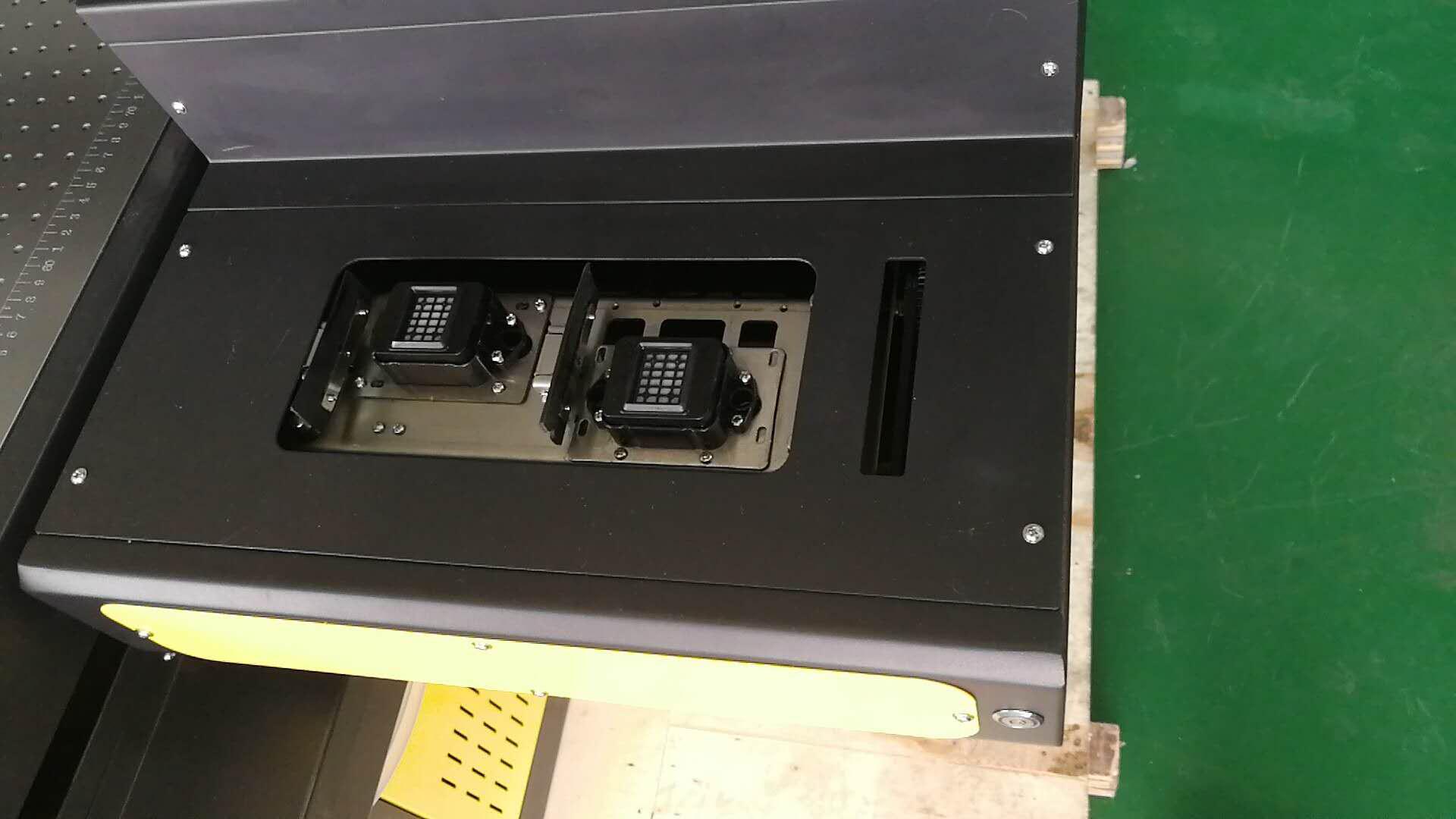

Automatic lifting ink station. cleaning nozzle and closed nozzle automatically |

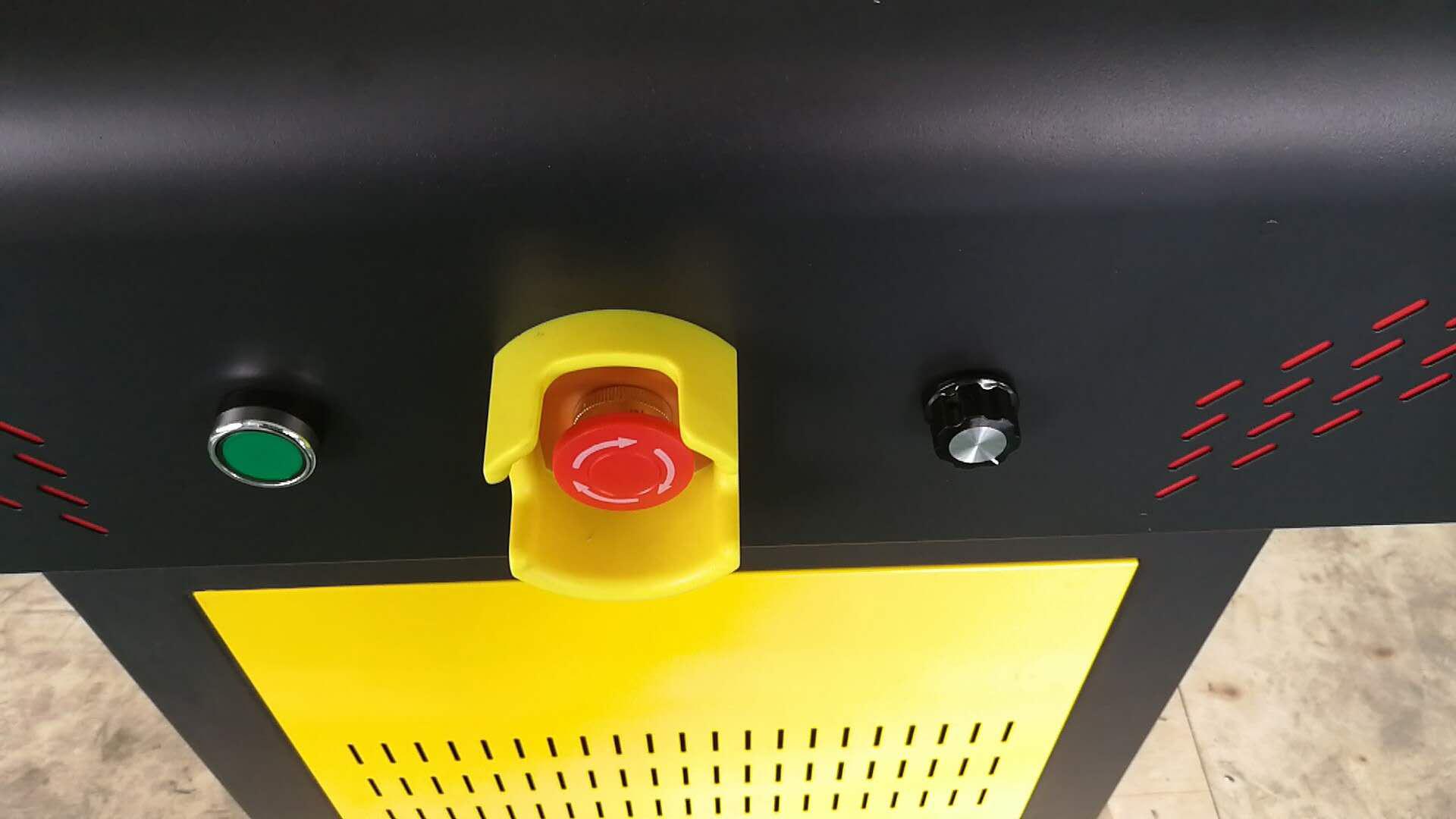

| Red is emergency stop switch Green is LED light switch Black is the suction switch |
|

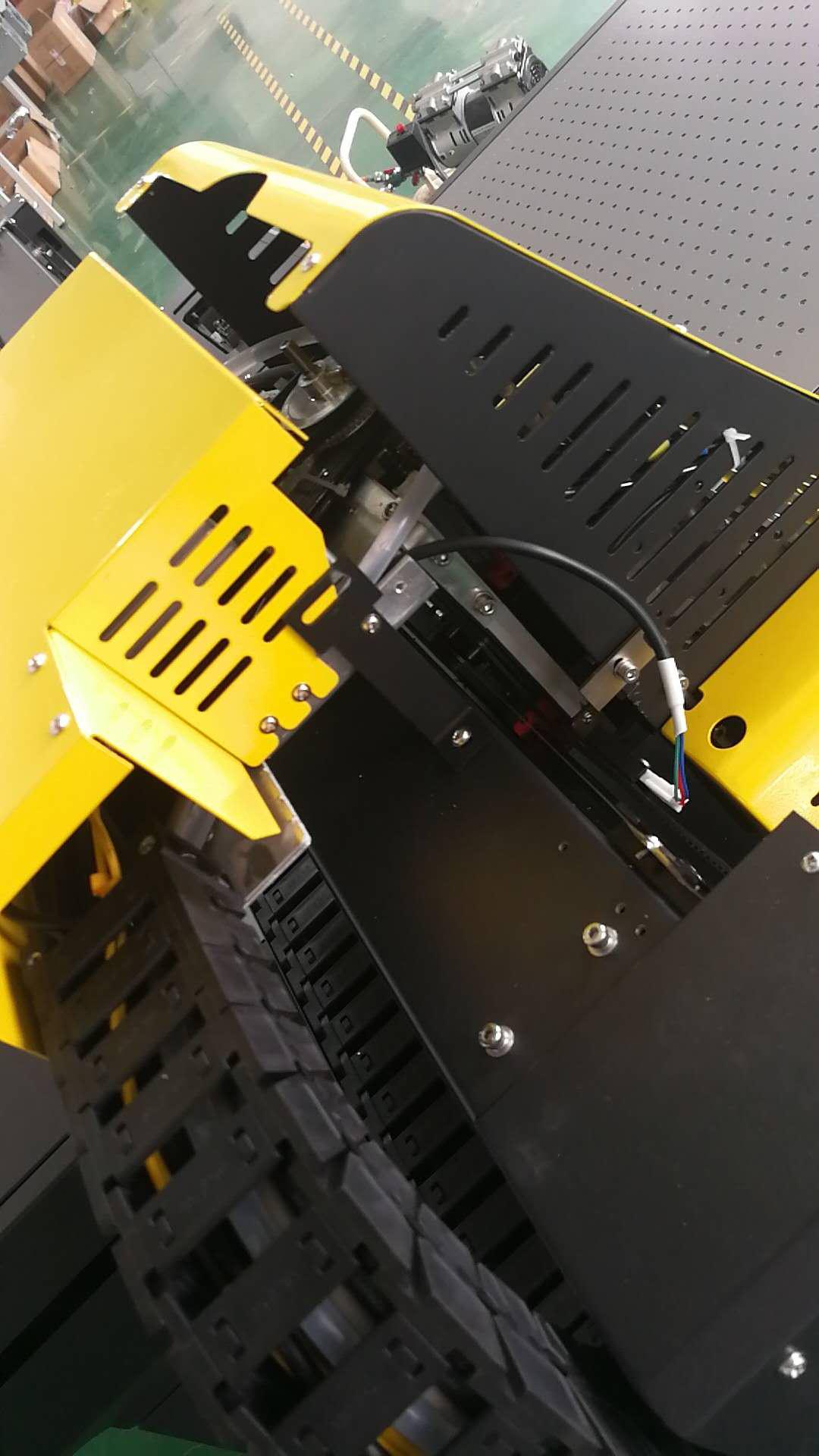

Carriage auto up & down system |
|

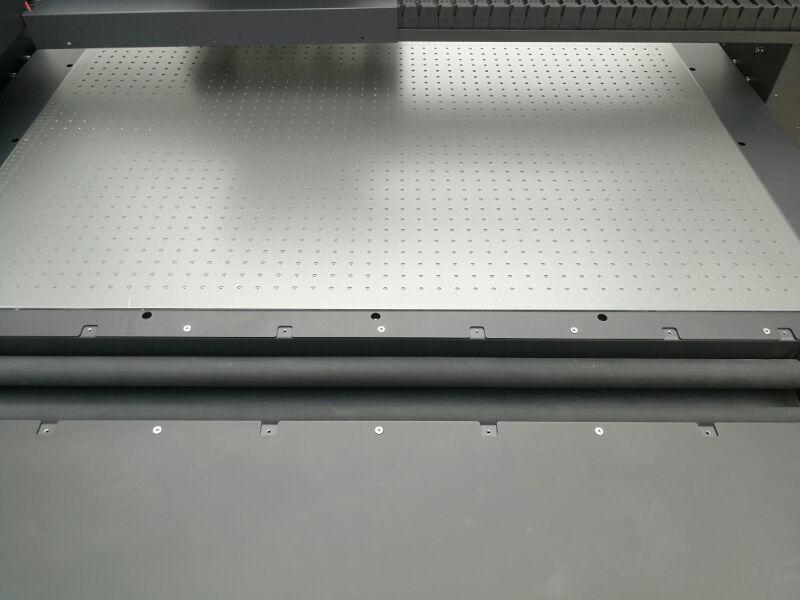

PTFE Cellular
Adsorption platform |
Main Parameters
LQ-UV Flatbed Printer 9060 | |
Printhead | Epson TX800 |
Print width | 90*60cm |
Heads number | 1 or 2 or 3 |
Speed | 4—6 pass |
Production mode | 6.5m²/h |
Precision mode | 5.5m²/ h |
High precision | 4.5m²/ h |
Maximum Resolution | 720 x 4320 dpi |
Print height | The highest cylinder can print 10 cm |
Ink | 6color+white+varnish（K C M Y Lc Lm+ white+varnish） 6 colors and 4 colors can be selected |
Printing types | Glass,Acrylic board ,Wood ,board ,Metal ,Leather and so on |
Data Interface | USB2.0 high speed interface transfer system |
Working Environment | Temperature：25℃—30℃ Humidity：40%—60% |
Power | 50—60Hz 1000W—1600W |
Operating Systems | Windows XP Windows 7 Professional ,Windows 8 |
Printer Dimension | 9060:2120mm x1400mm x 1200mm |
LQ-UV Flatbed Printer 9060
Advantage
1. Reliable boards system work on sable high precision machine body,it can work or any line.
2. Automatic stirring system for white ink and alarming system.Making sure non-stop working .Together with alarm function for ink shortage.
3. White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation
4. Carriage height could reach to 8cm;And it can work on 3 heads by varnish +white +color ,print speed faster ,and control easier.
5. Height could reach to 10cm; And it can work on 3 heads by varnish+white+color Print speed faster,and control easier.
6. Support for multiple printing on same picture by one time, fit for most special production request.
7. It occupies a small space and saves space.
8. Reduces the cost of maintaining the machine,High cost performance.
9. Carriage auto up & down system,conventional print height 7 cm. Order up to 20 cm. Trolley lift test printing can ensure the flatness of the printing platform.
Introduction
|
Ink cartridge with ink missing alarm system |
|
Automatic lifting ink station. cleaning nozzle and closed nozzle automatically |
| Red is emergency stop switch Green is LED light switch Black is the suction switch |
|
Carriage auto up & down system |
|
PTFE Cellular
Adsorption platform |
Main Parameters
LQ-UV Flatbed Printer 9060 | |
Printhead | Epson TX800 |
Print width | 90*60cm |
Heads number | 1 or 2 or 3 |
Speed | 4—6 pass |
Production mode | 6.5m²/h |
Precision mode | 5.5m²/ h |
High precision | 4.5m²/ h |
Maximum Resolution | 720 x 4320 dpi |
Print height | The highest cylinder can print 10 cm |
Ink | 6color+white+varnish（K C M Y Lc Lm+ white+varnish） 6 colors and 4 colors can be selected |
Printing types | Glass,Acrylic board ,Wood ,board ,Metal ,Leather and so on |
Data Interface | USB2.0 high speed interface transfer system |
Working Environment | Temperature：25℃—30℃ Humidity：40%—60% |
Power | 50—60Hz 1000W—1600W |
Operating Systems | Windows XP Windows 7 Professional ,Windows 8 |
Printer Dimension | 9060:2120mm x1400mm x 1200mm |
