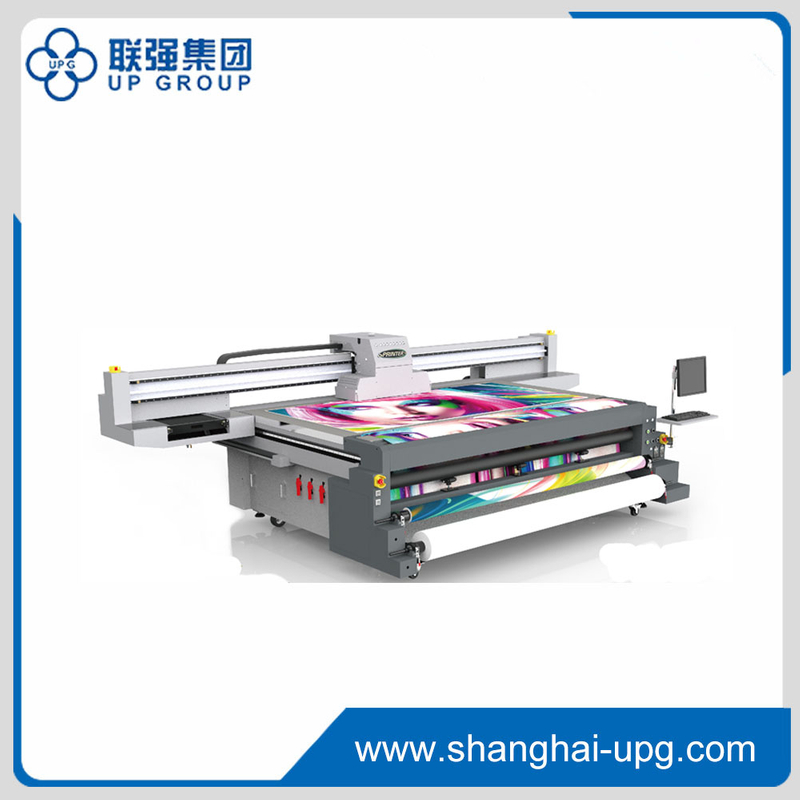

LQ-MD 2713 Digital UV Printing Machinery


PDF Export

  • LQ-MD 2713

  • UPG

  • LQ-MD 2713

· Convex spotlight makes stronger light to cure ink, and efficient water-recycling system ensure it works longer time.

· Adopt metal grating higher accuracy, higher stability, more durable.

· Anti-statics system is upgraded to eliminate statics at higher efficiency and in larger area.

· Made with big rubber rollers, the RTR system can print on 2.5m roll, or two small rolls.

· Automatic heating system can make the ink to be in the best situation at a constant temperature, so obtaining the best print quality.

· The ink valve system is opened and closed automatically bysolenoid vavle control.


ModelLQ-MD 2713
PrintheadRICOH GEN5 7PL (3-8H)RICOH GEN6 5PL (3-8H)
Resolution600, 900, 1200, 1800, 2400 dpi
Printng speed6 Printheads CMYK×3R6 Printheads CMYK×3R
Color4 color/ double 4 color/ 6color/ white or varnish
Max.material thicknessRigid material: ≤110mm;  Flexible media: ≤1mm
Drying systemLED lamp/ UVmercury lamp Option
Air draft4 air draft divisions adapt to the max working area dimension
Printing size

Maximum Printing Area:

Rigid material: 2700×1300mm

Flexible media width: 2500mm

Maximum Material Area:

Rigid material: 27500×1400mm

Flexible media width: 2530mm
InkUV Curing ink
Outdoor lifeAt least 3 years outdoor/ 10 years indoor --use Sprinter ink
Ink capacity1.5L drums, automatic surveillance for shorting of ink, non-stop and ink
Ink supply systemAuto Negative ink supply
MediaGlass, PMMA, ceramic, Metal, Paper, wood, Leather, flex banner, Wallpaper, Car sticker,Soft film, PVC, PP, PE, PTEE…
Control systemWindows 7/ 10, 64 bit, RAM≥8G, HDD≥500G, SSD≥128G, CPU≥Inte 15
RIP softwarePhotoprint/ Print Factory/ ONYX/ Caldera   (Option)
Operation environmentTemperature: 18-26°C is more effectively contorl static and guarantee printed quality
Humidity: 40-70%.TO effectively control static and guarantee printed quality
Power supplyPower Maximum: 7kw;  AC,50/ 60 Hz;  220v (±10%)>15A
Image formatTiff, JPEG, EPS, PDF
Dimension (L×W×H)4740×2420×1470 mm
Package dimensions (L×W×H)5400×2200×1650mm& 3450×800×1050mm
Net weight & Gross weight1550kg& 2280kg
Safety certificationCertification
