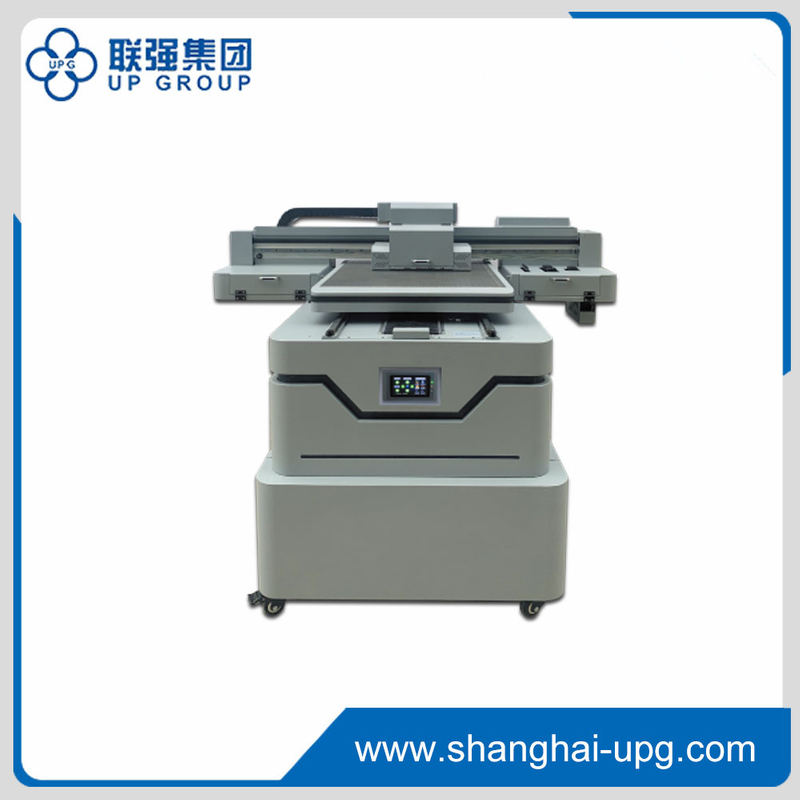

LQ-MD 6090
UPG
LQ-MD 6090
· Reliable boards system work on stable,high precision machine body ,it can work on any line.
· Automatic stirring system for white ink and lacking ink alarming system. Making sure non-stop working. Together with alarm function for ink shortage.
· White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation.
· Carriage height could reach to 24cm; And it can work on 3 heads by varnish+white+color, Print speed faster, and control easier.
· Highly integration control software with non-stop working function, easy to read and add print file during printing.
· Support for multiple printing on same picture by one time, fit for most special produciton request.
· Reliable boards system work on stable,high precision machine body ,it can work on any line.
· Automatic stirring system for white ink and lacking ink alarming system. Making sure non-stop working. Together with alarm function for ink shortage.
· White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation.
· Carriage height could reach to 24cm; And it can work on 3 heads by varnish+white+color, Print speed faster, and control easier.
· Highly integration control software with non-stop working function, easy to read and add print file during printing.
· Support for multiple printing on same picture by one time, fit for most special produciton request.
| Model | LQ-MD 6090 | LQ-MD 6090DH |
| Printhead | 1080 | 3200 |
| Print width | 60×90cm | 60×90cm |
| Heads number | 1 or 2 or 3 | 1 or 2 or 3 |
| Production mode | 5.5m²/h | 6.5m²/h |
| Precision mode | 4.5m²/h | 5.5m²/h |
| High precision | 3.5m²/h | 4.5m²/h |
| Maximum Resolution | 720×4320dpi | |
| Print height | 3 to 240mm adjustable | |
| Ink | 4/ 6 color+white+varnish (K,C,M,Y,Lc,Lm +W+V) | |
| Printing types | Glass, Acrylic board, Wood, board, Metal, Leather and so on | |
| Data Interface | USB3.0 high speed interface transfer system | |
| Working Environment | Temperature: 25-30℃, Humidity: 40-60% | |
| Power | 50-60 Hz, 1000-1600W, AC220V (±10%)/ AC110V (±10%) | |
| Operating Systems | Windows 7 Professional, Windows 8, Windows 10 | |
| Size | With table: 1530×1600×1380mm Without table: 1440×1600×870mm | |
| Model | LQ-MD 6090 | LQ-MD 6090DH |
| Printhead | 1080 | 3200 |
| Print width | 60×90cm | 60×90cm |
| Heads number | 1 or 2 or 3 | 1 or 2 or 3 |
| Production mode | 5.5m²/h | 6.5m²/h |
| Precision mode | 4.5m²/h | 5.5m²/h |
| High precision | 3.5m²/h | 4.5m²/h |
| Maximum Resolution | 720×4320dpi | |
| Print height | 3 to 240mm adjustable | |
| Ink | 4/ 6 color+white+varnish (K,C,M,Y,Lc,Lm +W+V) | |
| Printing types | Glass, Acrylic board, Wood, board, Metal, Leather and so on | |
| Data Interface | USB3.0 high speed interface transfer system | |
| Working Environment | Temperature: 25-30℃, Humidity: 40-60% | |
| Power | 50-60 Hz, 1000-1600W, AC220V (±10%)/ AC110V (±10%) | |
| Operating Systems | Windows 7 Professional, Windows 8, Windows 10 | |
| Size | With table: 1530×1600×1380mm Without table: 1440×1600×870mm | |
