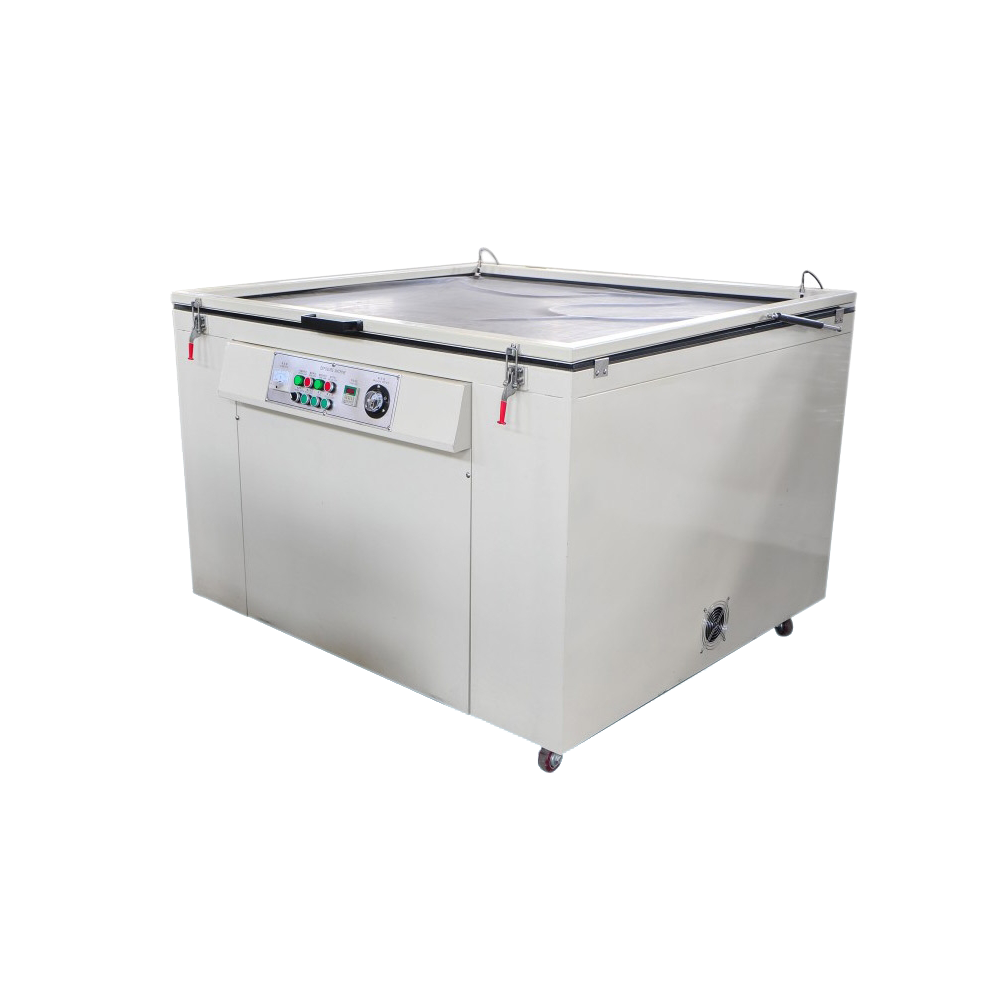

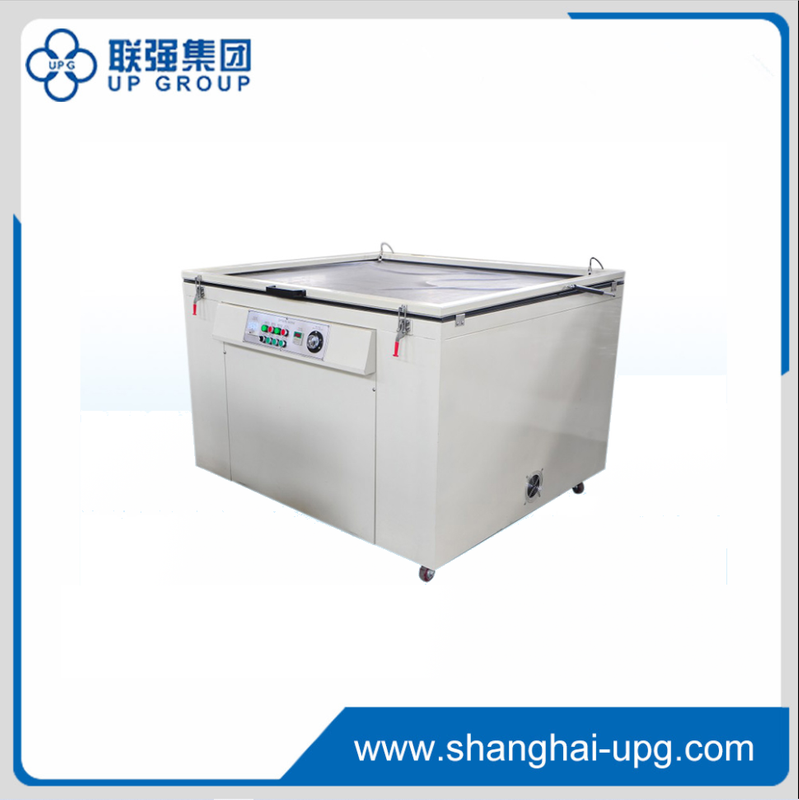

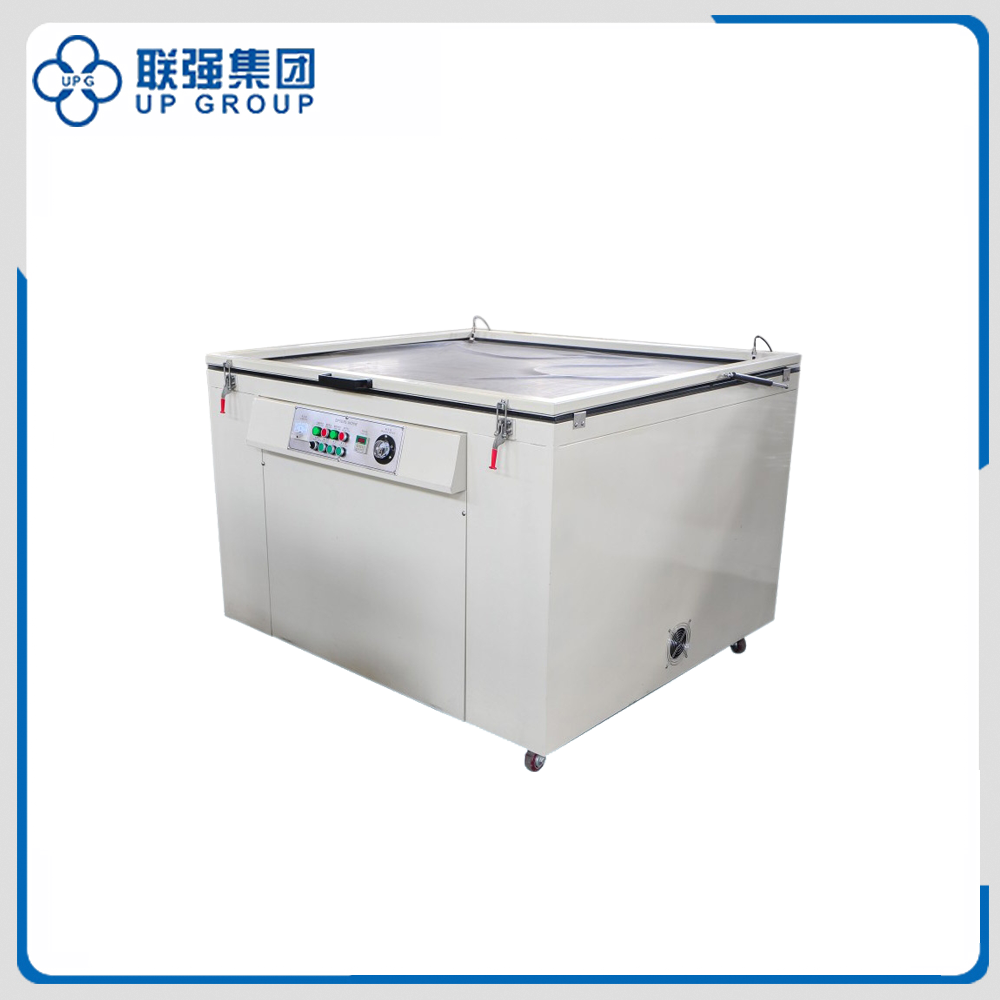

LQSBW-1200/1400 Plate Copying Apparatus

LQ2SBW series machine is designed with advanced techniques, including vacuum air pump, airproof device, UV leaking prevention, 3kw iodine-gallium lamp, fast copying and clear lines.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
LQSBW-1200/1400 Plate Copying Apparatus
LQSBW-1200/1400 Plate Copying Apparatus

  • LQSBW-1200/1400

  • UPG

LQSBW series machine is designed with advanced techniques, including vacuum air pump, airproof device, UV leaking prevention, 3kw iodine-gallium lamp, fast copying and clear lines.
Easy to operate by hand or automatically, freely adjusting the exposure time, and it is widely used in the printing industries of PCB and high-precision.


Model LQSBW-1200 LQSBW-1400
Max. Screen Frame Size (mm) 1150x1050 1300x1250
Exposure Timer (s) 1-9999 1-9999
Power Of Iodine-gallium Lamp (kw) 3 3
Total Power (kw) 3.5 3.5
Machine Weight (kg) 290 300
Dimension (LxWxH) (mm) 1350x1300x1150 1550x1500x1300
