LQ 4/3N Automatic Screen Printing Machine

LQ 4/3 Automatic Screen Printing Machine, find complete details about LQFB 4/3 Automatic Screen Printing Machine, Screen Printing, Automatic - UP Group
Availability:
Quantity:
  • LQ 4/3N

  • UPG

Performance

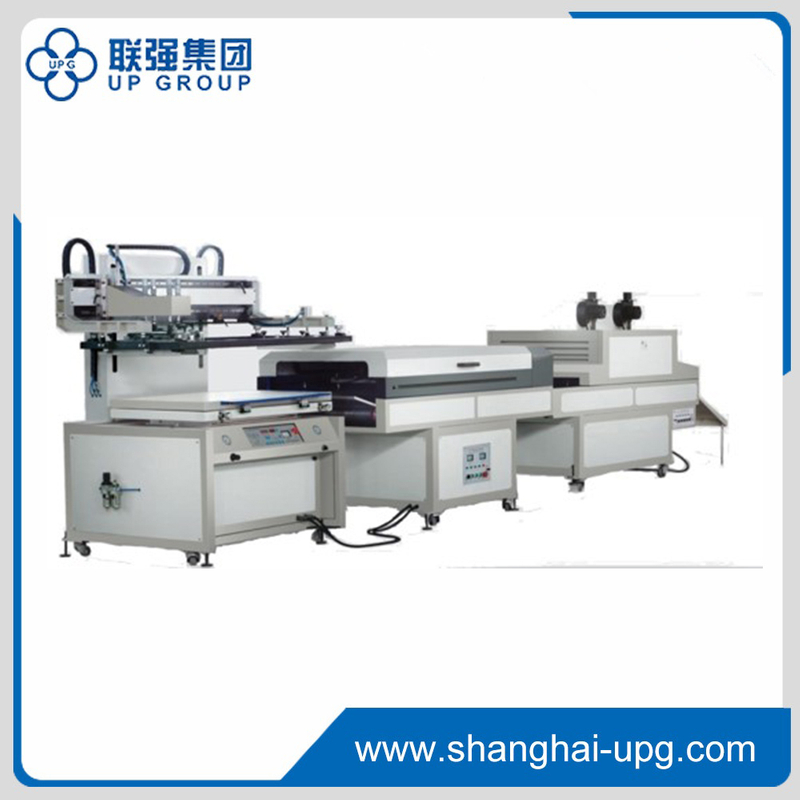

The machine is composed of printer part,take-off set machine and UV dryer.It is a 3/4 production line which feeds material to printer by human hand,then takes off material automatically.After printing is finished,the printing arm put up,mechanism arm of takeoff set machine will extend into between the printing arm and printing table,suck and pull out the printing material,then send it to next working procedure(drying and paper collecting).It can not only save human labor,but also improve working efficiency of printing machines.It is fit for printing on flexible materials such as paper and polyster plastic film and so on.

Model

LQ-750N

LQ-960N

LQ-1270N

Max.Printing Size

700×500mm

900×600mm

1200×700mm

Printing material Size

≤500g/㎡

≤500g/㎡

≤500g/㎡

Printing Speed

400~1000pcs/h

400~900pcs/h

400~800pcs/h

Total Power

15.85kw

16.2kw

16.6kw

Voltage

380v 50Hz

380v 50Hz

380v 50Hz

Total Weight

1400kg

1550kg

1650kg

Machine overall size

6600×1050×1620mm

6800×1180×1700mm

7000×1400×1680mm
