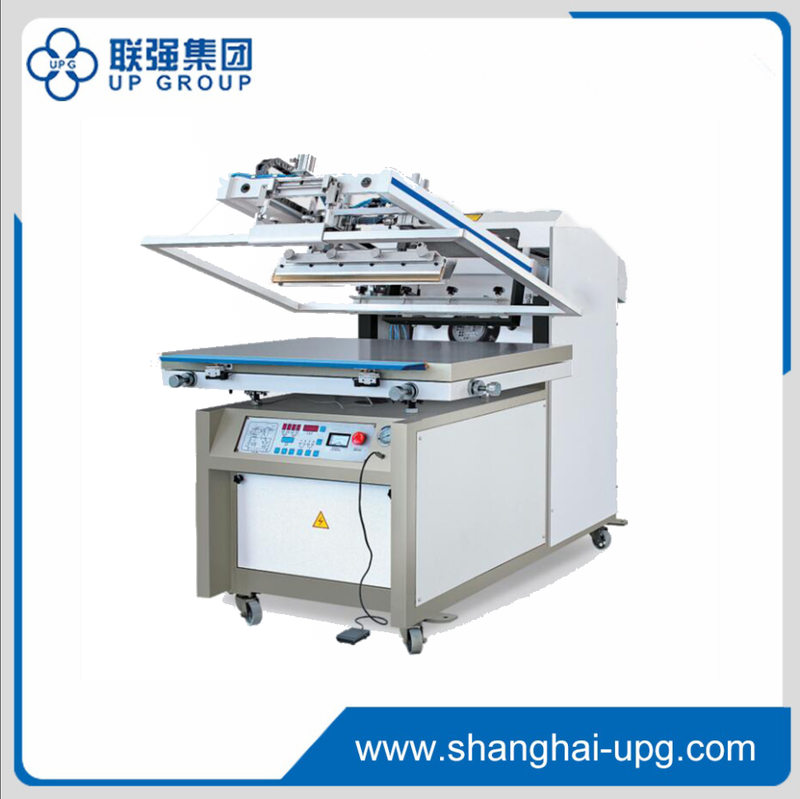

LQFB Uncovering Screen Printing Machine

LQFB Uncovering Screen Printing Machine, find complete details about LQFB Uncovering Screen Printing Machine, Screen Printing - UP Group
Availability:
Quantity:
Inquire Add to Basket

PDF Export
LQFB Uncovering Screen Printing Machine

  • LQFB4060/6090

  • UPG

Performance

  1. Microcomputer with fault graph display function for maintenance

  2. Four cylinders motorized to achieve even pressure with clear mesh

  3. With dual-stage adaptive systems,easy adjustment and precise positioning

  4. With frequency converter,independent speed adjustment of squeegee blade,suitable for different printing areas

  5. Printing process driven by crank

Model

LQFB-4060

LQFB-6090

Max.Printing Size

400×600mm

600×900mm

Max.Screen Frame Size

650×800mm

850×1100mm

Printing Table Size

600×700mm

800×1000mm

Max.Printing Speed

1300t/h

1200t/h

Overall Dimension

1380×780×1300mm

1620×1080×1300mm

Power

3P4N 50/60Hz

380V 2.6kw

3P4N 50/60Hz

380V 3kw
