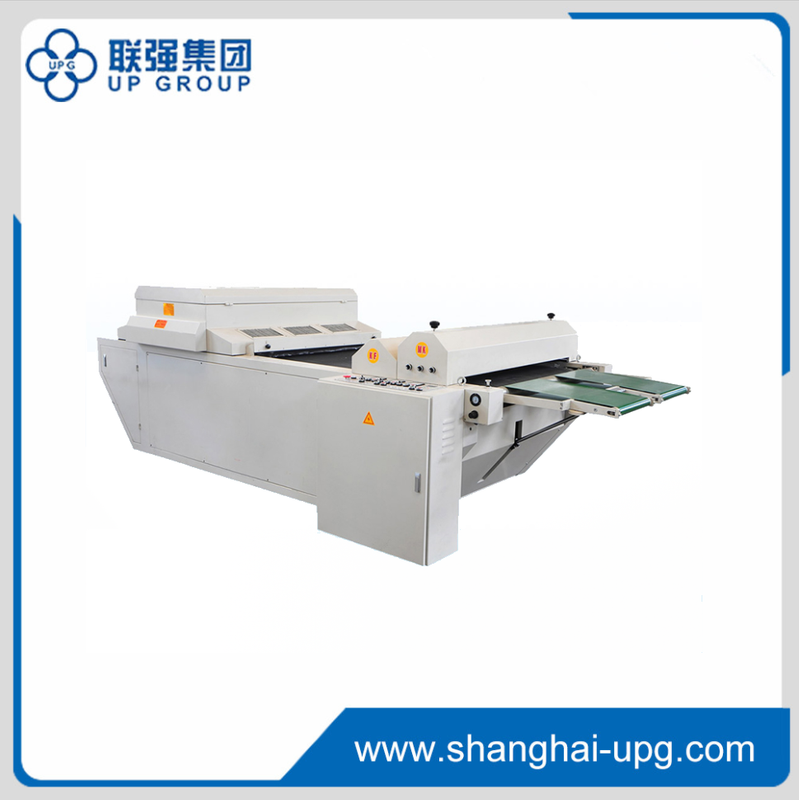

LQUV-900/1200 UV Curing Machine

LQUV-900/1200 UV Curing Machine is widely used in the printing industries of paper, label and plastic etc. It can work in line with screen printing machine, and also be equipped with the ink wrinkling device.
Availability:
Quantity:

PDF Export

LQUV-900/1200 UV Curing Machine
LQUV-900/1200 UV Curing Machine
  • LQUV-900/1200

  • UPG

UV-900 UV Curing Machine is widely used in the printing industries of paper, label and plastic etc. It can work in line with screen printing machine, and also be equipped with the ink wrinkling device. It features as below:


  1. The imported Teflon conveyor belt endures high temperature, friction and radiation.

  2. Lowering the temperature of the machine interior by cooling device prolongs the life of UV lamps.

  3. With infinitely variable speed transmission of the conveyor belt, the machine can work inline with semi-automatic or automatic screen printing machine.

  4. According to different printing products and ink, it can save energy by running on with one or more lamps.


Model

UV-900

Max. Conveying Width

900mm

Conveying Speed

0-60m/min

UV Lamp Power

8x3kw

Total Power

34.5kw

Overall Dimension (LxWxH)

3700x1840x1460mm
