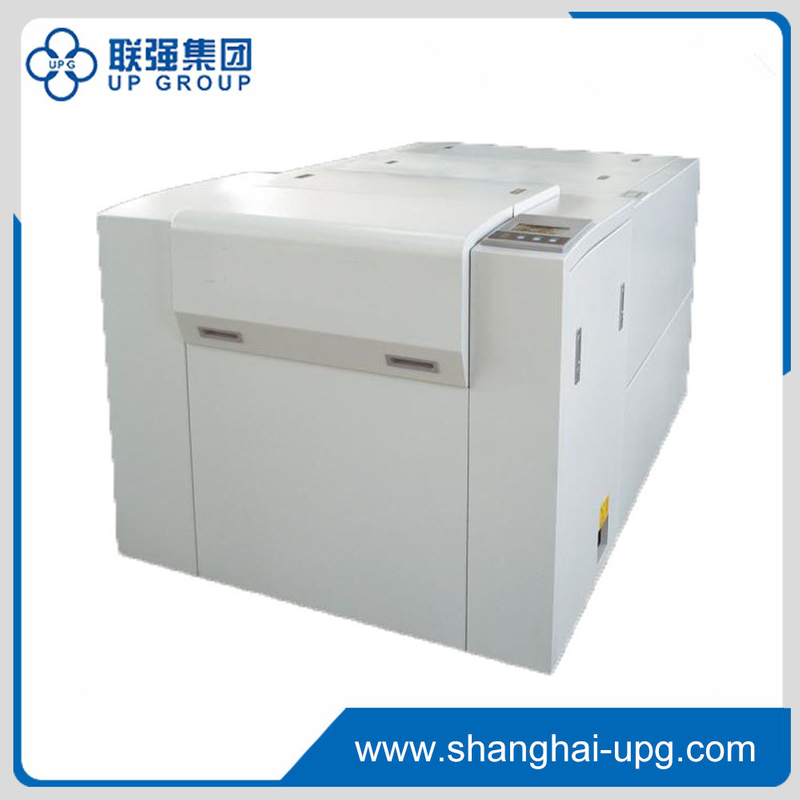

LQ-1800/2800/4800 Laser Imagesetter

Laser Imagesetter High precision, full automatic, 60m lining by roller laser imagesetter without any dark room is the latest product developed by Eastcom in 2004 with full automatictity operation during whole process, grid reverting exactly and high precision resetting and so on. Also it is the ideal choice of large plate making center , news printing, circuit printing and escutcheon trade.
Availability:
Quantity:
  • LQ-1800/2800/4800/2000
  • UPG

Laser Imagesetter (CTF)

Model

LQ1800

LQ2800

LQ4800

LQ2000

Film dimen-sions

1320mm/1120mm/940mm×914mm/760mm/660mm

940mm/812mm×660mm-508mm

635mm×457mm

2000mm×1200mm

(optional)

Scanning resolution

1500dpi-4000dpi(optional)

600dpi-4000dpi(optional)

Scanning mode

External drum, broad band laser scanning with high speed

Repeatability precision

±0.01mm

±0.02mm

Operation mode

Full automatic, 60m roll films with film processor , without dark room

Half automatic , single piece of film loading,with dark room

External dimensions

2710mm×1600mm×1160mm

2580mm×1360mm×1180mm

2390mm×1060mm×1050mm

2050mm×1040mm×1240mm

Exposure dimensions 940mm/812mm × 660mm / 610mm / 558mm / 508mm
Scanning precision1500dpi---4000dpi (choose)
scanning modeexternal drum, broad band laser scanning with high speed
Repeatability Precision <0.010mm
Operation modefull automatic,on-line operation with 60m roll film and processor,
without dark room
External dimension2580mm*360mm*1180mm
