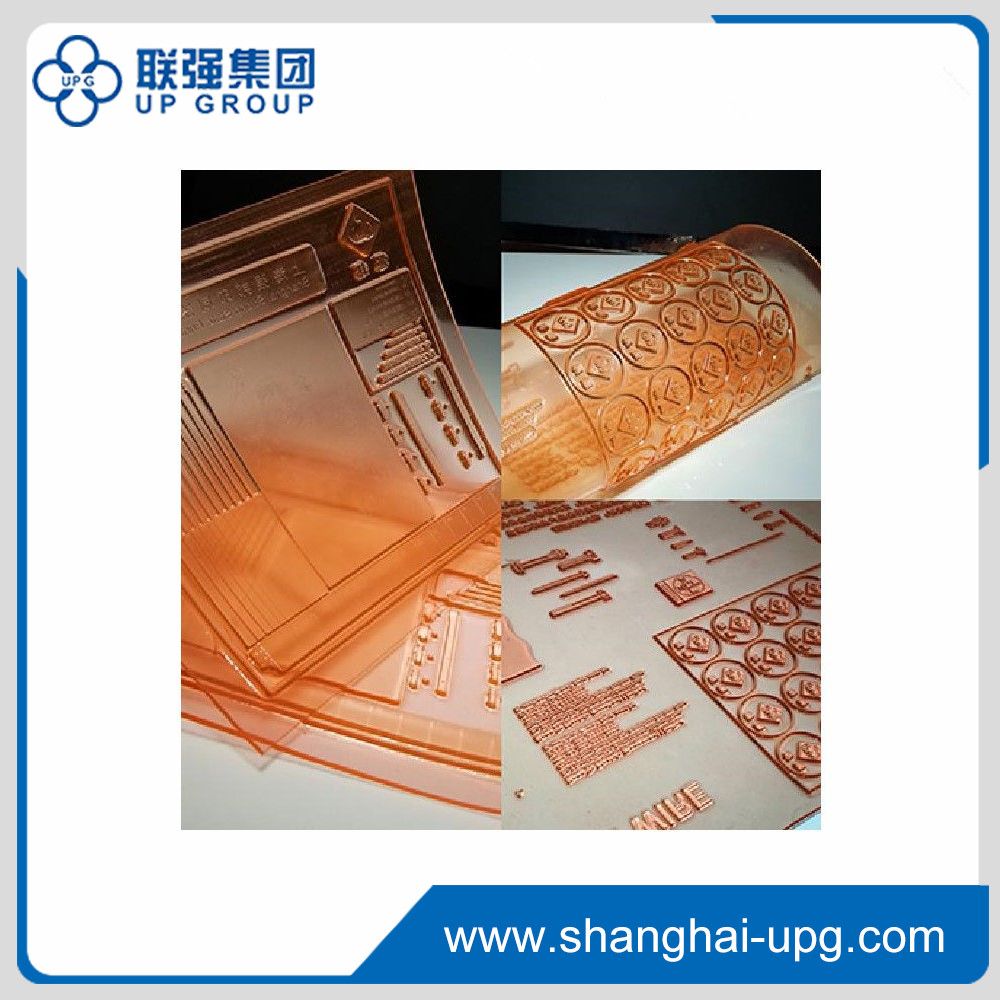

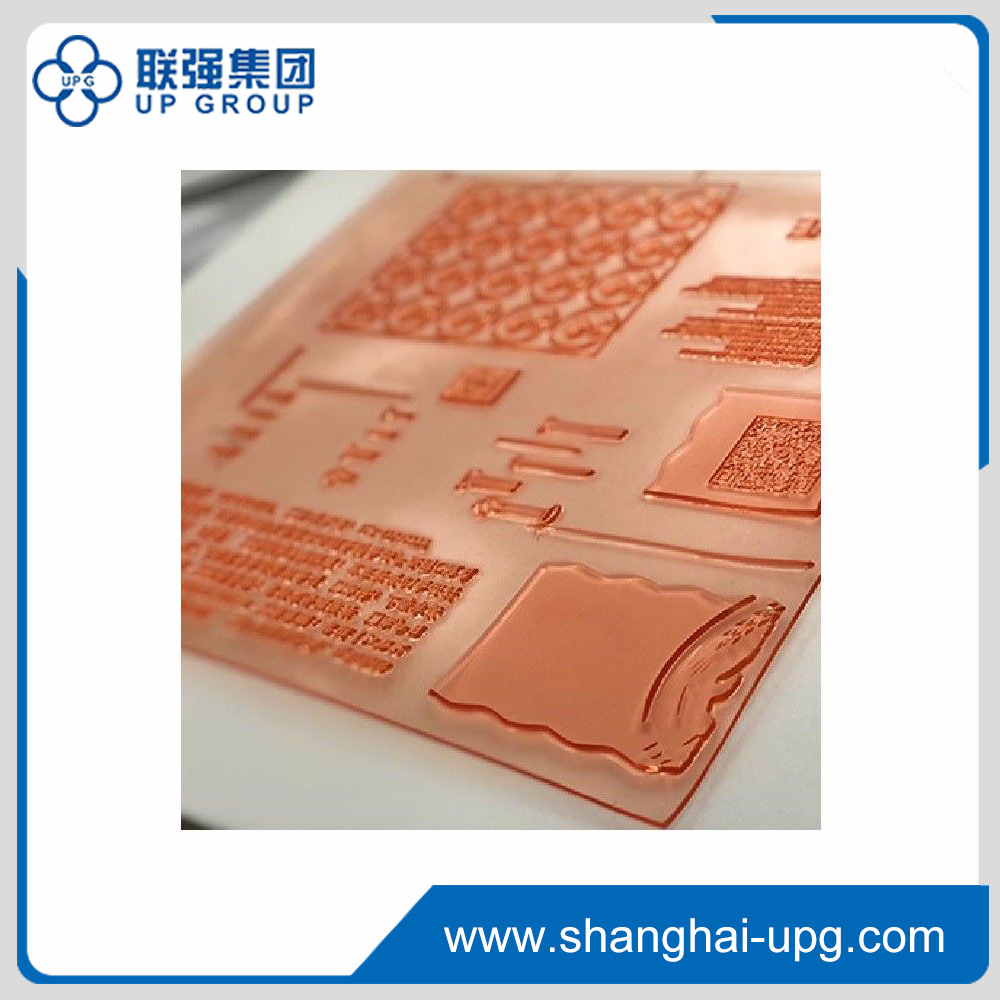

LQ-Analog Flexo Plate
UPG
LQ-M Analog Flexo Plates
LQ-M is the next generation sheet photopolymer specifically designed to address all direct print corrugated board requirements. LQ-M sheet photopolymer provides excellent solids coverage, while its low tack and high resilience offer long and clean press runs.
Key Features
1. Holds the finest detail without the need to back mask
2. Quick wash out
3. Image fidelity for high-end graphic and halftone reproduction at all gauges
4. No cupping allows for uniform impression at all process speeds
5. Good resistance towards mechanical impacts and extremely durable
6. Compatible with water and alcohol-based inks containing up to 15% acetate
7. Suitable for corrugated post printing and other paper substrates
| LQ-M Technical Specifications | |||||
| Thickness(mm/inch) | Hardness(Shore A) | Total Range(%) | Screen Ruling(LPI) | Minimum Isolated Line | Minimum Isolated Dot |
| 2.54/0.100 | 49 | 3-95% | 100 | 0.3mm | 0.5mm |
| 2.84/0.112 | 48 | 3-95% | 100 | 0.3mm | 0.5mm |
| 3.18/0.125 | 46 | 3-95% | 100 | 0.3mm | 0.5mm |
| 3.94/0.155 | 43 | 3-90% | 80 | 0.3mm | 0.5mm |
| 4.70/0.185 | 41 | 3-90% | 80 | 0.3mm | 0.5mm |
| 5.50/0.217 | 41 | 3-90% | 60 | 0.3mm | 0.5mm |
| 7.00/0.275 | 40 | 3-90% | 60 | 0.3mm | 0.5mm |
| LQ-M Recommended Processing Conditions | ||||||
| Thickness(mm/inch) | Back Exposure (s) | Main Exposure (mins) | Wash out (mmn/mins) | Drying Time (h) | Post exposure (mins) | Detack (mins) |
| 2.54/0.100 | 10-40 | 8-15 | 130-150 | 1.5-2 | 5min | 0-5min |
| 2.84/0.112 | 20-50 | 8-15 | 120-140 | 1.5-2 | 5min | 0-5min |
| 3.18/0.125 | 30-60 | 8-15 | 120-140 | 1.5-2 | 5min | 0-5min |
| 3.94/0.155 | 40-80 | 8-15 | 90-110 | 2-2.5 | 5min | 0-5min |
| 4.70/0.185 | 90-110 | 8-18 | 70-90 | 3 | 5min | 0-5min |
| 5.50/0.217 | 150-200 | 8-18 | 70-90 | 3 | 5min | 0-5min |
| 7.00/0.275 | 300-500 | 8-18 | 70-90 | 3 | 5min | 0-5min |
LQ-HT Analog Flexo Plates
Strong State LQ-HT is the next generation sheet photopolymer specifically designed to address all direct print corrugated board requirements. LQ-HT sheet photopolymer provides excellent solids coverage, while its low tack and high resilience offer long and clean press runs.
Key Features
1. Holds the finest detail without the need to back mask
2. Quick wash out
3. Image fidelity for high-end graphic and halftone reproduction at all gauges
4. No cupping allows for uniform impression at all process speeds
5. Good resistance towards mechanical impacts and extremely durable
6. Compatible with water and alcohol-based inks containing up to 15% acetate
7. Suitable for corrugated post printing and other paper substrates
| LQ-HT Technical Specifications | |||||
| Thickness(mm/inch) | Hardness(Shore A) | Total Range(%) | Screen Ruling(LPI) | Minimum Isolated Line | Minimum Isolated Dot |
| 2.54/0.100 | 44 | 2-95% | 100 | 0.15mm | 0.25mm |
| 2.84/0.112 | 42 | 3-95% | 100 | 0.2mm | 0.3mm |
| 3.18/0.125 | 41 | 3-95% | 100 | 0.2mm | 0.3mm |
| 3.94/0.155 | 39 | 3-90% | 100 | 0.2mm | 0.3mm |
| 4.70/0.185 | 38 | 3-90% | 80 | 0.3mm | 0.5mm |
| 5.00/0.197 | 37 | 3-90% | 80 | 0.3mm | 0.5mm |
| 5.50/0.217 | 36 | 3-90% | 60 | 0.3mm | 0.5mm |
| 6.35/0.250 | 36 | 3-90% | 60 | 0.3mm | 0.5mm |
| 7.00/0.275 | 36 | 3-90% | 60 | 0.3mm | 0.5mm |
| LQ-HT Recommended Processing Conditions | ||||||
| Thickness(mm/inch) | Back Exposure (s) | Main Exposure (mins) | Wash out (mmn/mins) | Drying Time (h) | Post exposure (mins) | Detack (mins) |
| 2.54/0.100 | 15-35 | 8-15 | 130-150 | 1.5-2 | 5min | 0-5min |
| 2.84/0.112 | 20-40 | 8-15 | 120-140 | 1.5-2 | 5min | 0-5min |
| 3.18/0.125 | 25-45 | 8-15 | 120-140 | 1.5-2 | 5min | 0-5min |
| 3.94/0.155 | 30-60 | 8-15 | 90-110 | 2-2.5 | 5min | 0-5min |
| 4.70/0.185 | 50-100 | 8-18 | 70-90 | 3 | 5min | 0-5min |
| 5.50/0.217 | 90-150 | 8-18 | 70-90 | 3 | 5min | 0-5min |
| 7.00/0.275 | 150-200 | 8-18 | 70-90 | 3 | 5min | 0-5min |
| 6.35/0.250 | 250-350 | 8-18 | 70-90 | 3 | 5min | 0-5min |
| 7.00/0.275 | 300-500 | 8-18 | 70-90 | 3 | 5min | 0-5min |
LQ-GM Analog Flexo Plates
LQ-GM is the newest medium durometer analog sheet photopolymer, which delivers higher quality print and increased productivity. LQ-GM sheet photopolymer has exceptional resilience, allowing for faster press speeds and reduced bounce. Ink transfer is enhanced, delivering extremely smooth solids and crisp, clean running process.
Key Features
1. Image fidelity for high-end graphic and halftone reproduction at all gauges
2. No cupping allows for uniform impression at all process speeds
3. High resilience and good resistance towards mechanical impacts deliver excellent durability
4. Excellent ink transfer using water and alcohol-based inks
5. Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on
| LQ-GM Technical Specifications | |||||
| Thickness(mm/inch) | Hardness(Shore A) | Total Range(%) | Screen Ruling(LPI) | Minimum Isolated Line | Minimum Isolated Dot |
| 1.70/0.067 | 63 | 2-95% | 133 | 0.15mm | 0.25mm |
| 2.28/0.090 | 54 | 2-95% | 133 | 0.15mm | 0.25mm |
| LQ-GM Recommended Processing Conditions | ||||||
| Thickness(mm/inch) | Back Exposure (s) | Main Exposure (mins) | Wash out (mmn/mins) | Drying Time (h) | Post exposure (mins) | Detack (mins) |
| 1.70/0.067 | 10-30 | 6-12 | 140-180 | 1.5-2 | 5min | 5min |
| 2.28/0.090 | 15-35 | 6-12 | 140-180 | 1.5-2 | 5min | 3min |
