LQ-Digital Flexo Plate
UPG

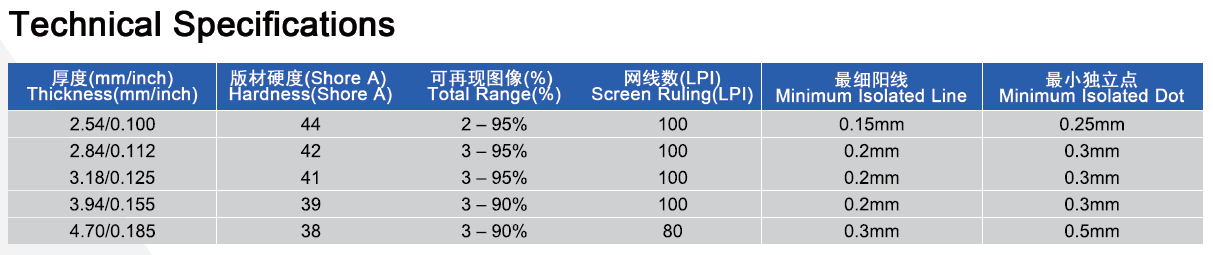

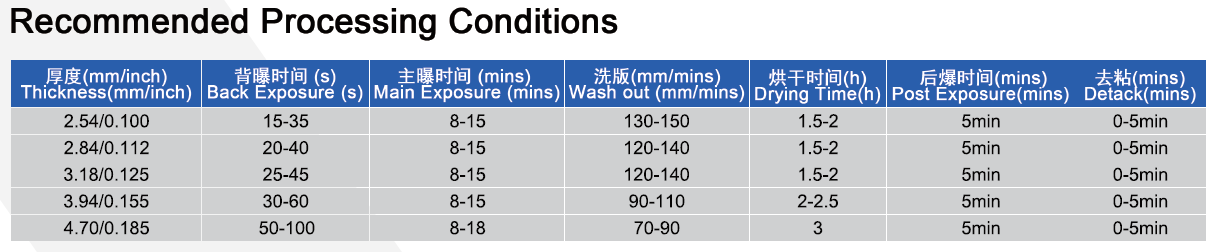

LQ-DHT Digital Flexo Plates
LQ-DHT is the digital sheet photopolymer specifically designed to address all direct print corrugated board requirements, which delivers higher quality print and increased productivity. LQ-DHT sheet photopolymer has fine resolution, imaging capability and will work over a broad range of substrates and applications. Ink transfer is enhanced, delivering extremely smooth solids and crisp, clean running process.
Key Features
1. Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used
2. High resilience and good resistance towards mechanical impacts deliver excellent durability
3. Increased productivity and data transfer without loss of quality due to digital workflow
4. Excellent ink transfer using water and alcohol-based inks
5. Cost effective and more environmentally friendly in processing, as no film is required
6. Suitable for corrugated post printing and other paper substrates

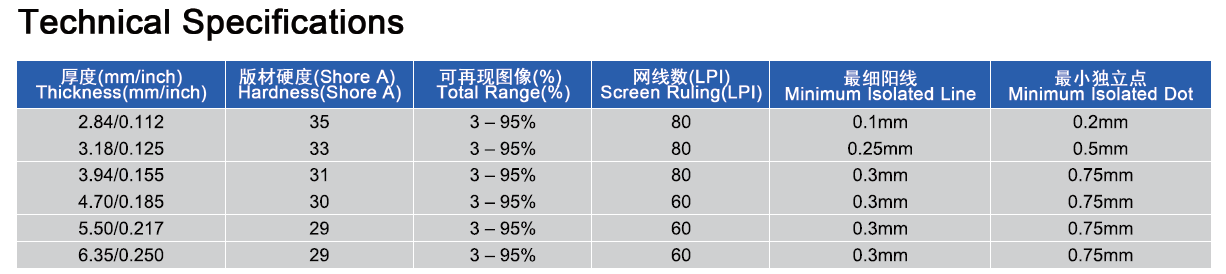

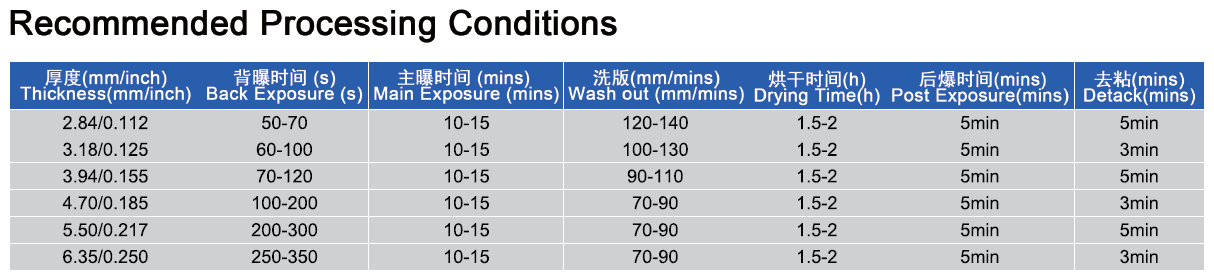

LQ-DHS Digital Flexo Plates
LQ-DHS is the new digital sheet photopolymer, which is softer and lower durometer compared to LQ-DHT, perfect adaptation to corrugated board surfaces and reduces washboard effect. LQ-DHS sheet photopolymer has fine resolution, imaging capability and will work over a broad range of substrates and applications. Ink transfer is enhanced, delivering extremely smooth solids and crisp, clean running process.
Key Features
Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used
High resilience and good resistance towards mechanical impacts deliver excellent durability
Increased productivity and data transfer without loss of quality due to digital workflow
Excellent ink transfer using water and alcohol-based inks
Cost effective and more environmentally friendly in processing, as no film is required
Suitable for corrugated post printing and other paper substrates

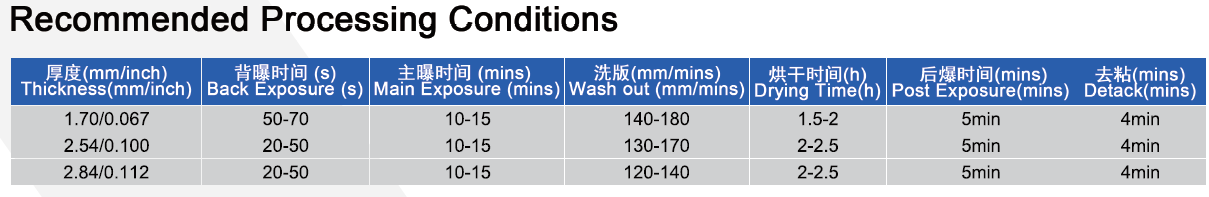

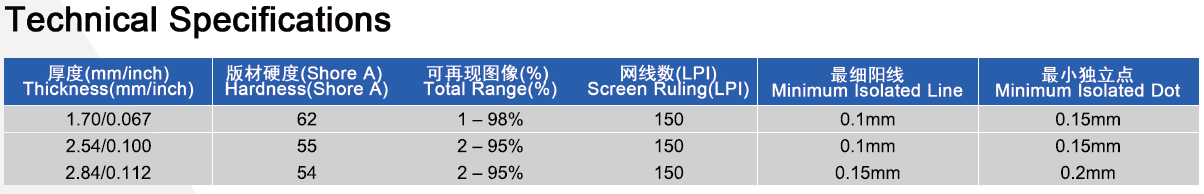

LQ-DH Digital Flexo Plates
LQ-DH is a medium durometer digital sheet photopolymer, which delivers higher quality print and increased productivity. LQ-DH sheet photopolymer has exceptional resilience, allowing for faster press speeds and reduced bounce. Ink transfe is enhanced, delivering extremely smooth solids and crisp, clean running process.
Key Features
1. A softer digital plate than LQ -DGM, which is suitable for label and tags, folding cartons, and sacks, paper, multi wall printing
2. Increased productivity and data transfer without loss of quality due to digital workflow
3. Consistency in quality when repeating plate processing
4. Cost effective and more environmentally friendly in processing, as no film is required
5. Excellent ink transfer using water and alcohol-based inks
6. Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on

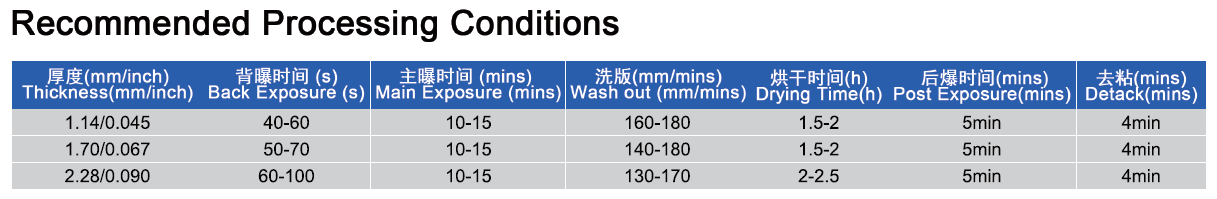

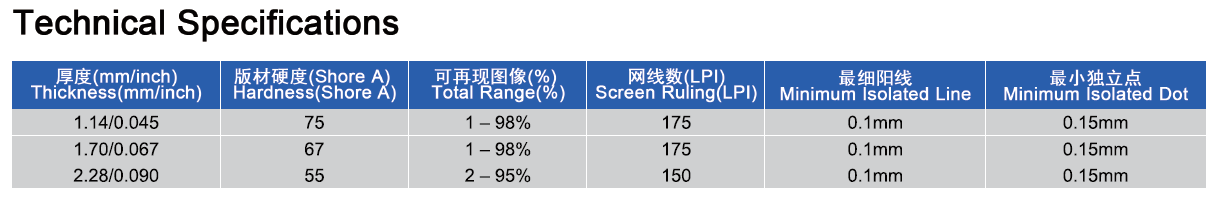

LQ-DGM Digital Flexo Plates
LQ-DGM is the newest hard durometer digital sheet photopolymer, which delivers higher quality print and increased pro ductivity. LQ-DGM sheet photopolymer has fine resolution, imaging capability and will work over a broad range of substrates and applications. Ink transfer is enhanced, delivering extremely smooth solids and crisp, clean running process.
Key Features
1. Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot qain,i.e.larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used
2. High resilience and good resistance towards mechanical impacts deliver excellent durability
3. Increased productivity and data transfer without loss of quality due to digital workflow
4. Excellent ink transfer using water and alcohol-based inks
5. Cost effective and more environmentally friendly in processing,as no film is required
6. Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on

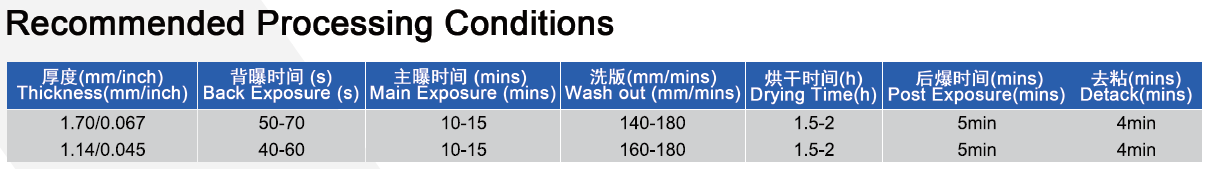

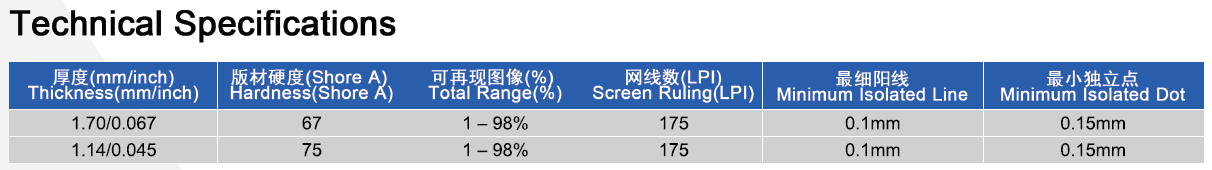

LQ-DGT Digital Flexo Plates
LQ-DGT is a hard durometer digital printing plate features Strong's revolutionary built-in fat-top dot technology. it offers the convenience of flat-top dots right out of the box, and no additional plate making steps or equipment are required to obtain the fat-top dots. LQ-DGT offers near 1:1 mask-to-plate imaging capability, thus eliminating the need for a bump curve which would help the printers to expand the avallable color gamut and print a smaller dot. it is a durable and extremely low tack plate, which is perfectly suited for long and clean running print jobs.
Key Features
1.Flat-top dots directly in the plate 2.Near 1:1 mask-to -plate reproduction depending on line screen 3.Exceptional consistency in printing, and outstanding durability 4.Extremely low tack 5.Compatible with UV-LED exposure devices
Company Profile:
Superior:
A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.
Our Customers:
Exhibitions:
Export Markets:
UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Packaging and Shipping:
Our Services:
Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
