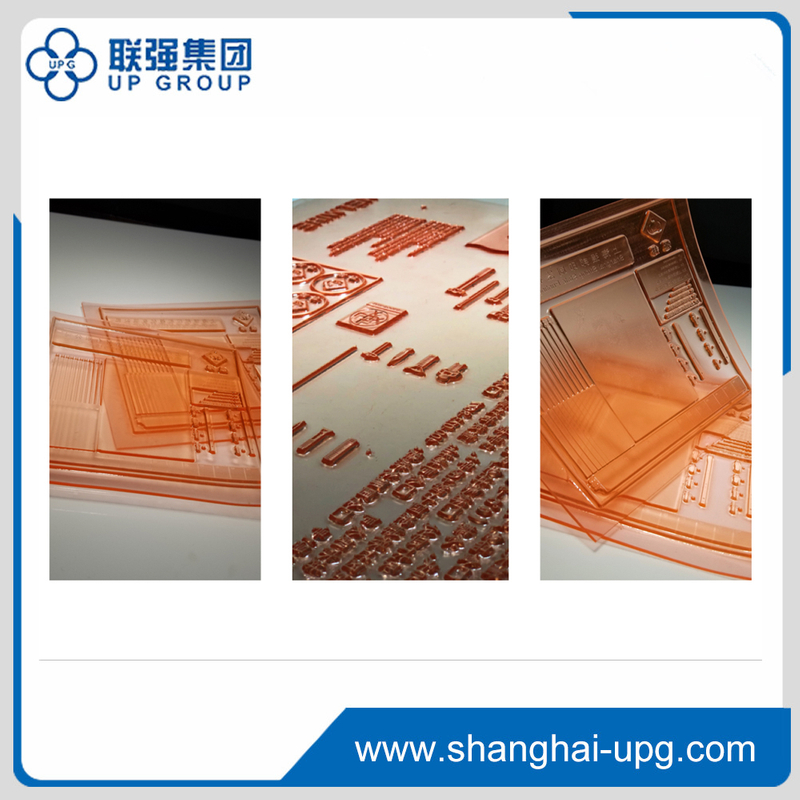

LQ Digital Flexo Plates

UPG flexo plate, the next generation sheet photopolymer which is specifically designed to address all direct print corrugated board requirements. UPG flexo plate sheet photopolymer provides excellent solids coverage, while its low tack and high resilience offer long and clean press runs.
Availability:
Quantity:

PDF Export

LQ Digital Flexo Plates
LQ Digital Flexo Plates
LQ Digital Flexo Plates
  • LQ

  • UPG

  • 3701302500

Brief Introduction

UPG flexo plate, the next generation sheet photopolymer which is specifically designed to address all direct print corrugated board requirements. UPG flexo plate sheet photopolymer provides excellent solids coverage, while its low tack and high resilience offer long and clean press runs.




1.Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast.

2.Increased productivity and data transfer without loss of quality due to digital workflow.

3.Consistency in quality when repeating plate processing.

4.Cost effective and more environmentally friendly in processing, as no film is required.


Model284318394
Thickness2.84mm3.18mm3.94mm
Hardness (Shore Å)424137
Image reproduction2 - 95%   120 lpi2-95% 100 lpi
Minimum isolated line 0.1 mm0.20mm0.25mm
Minimum isolated dot0.20 mm0.50mm0.50mm
