LQ-LF 300-2500ml Single Head Vertical Liquid Filling Machine

This machine is used to fill liquid, cream in the bottle or bag. It is a semi-auto machine.
Availability:
Quantity:
Inquire Add to Basket

PDF Export

  • LQ-LF

  • UPG

This machine is used to fill liquid, cream in the bottle or bag. It is a semi-auto machine.

Model /NameLQ-LF 300-2500ml Single Head Vertical Liquid Filling Machine
Filling Volume Range300-2500ml
Filling Accuracy≤±1%
Working Capacity10-30 times/min
Air pressure0.4-0.6 Mpa

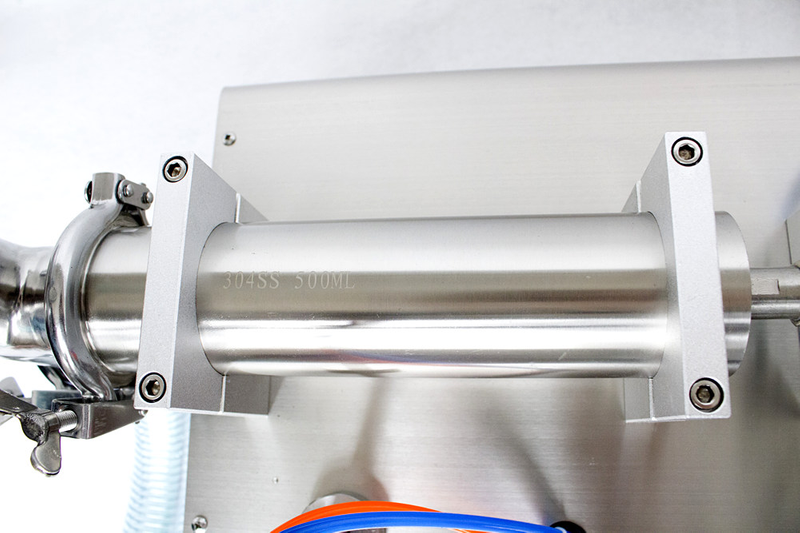

Material Cylinder Volume2500 ml
Air Cylinder BrandAirtac
Material Contact PartsStainless Steel 316L
Machine FrameStainless Steel 201

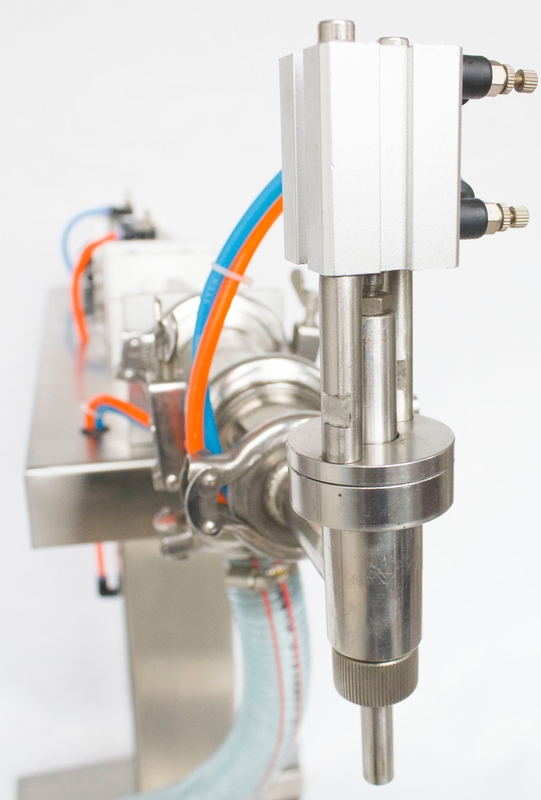

Distance between nozzle and surface of table450-700mm (Adjustable)
Material Feeding TubeLength:1.5m/Foodgrade PVC Steel Wire Tube
Overall DimensionsL1290mm*W1040mm*H570mm
Net weight62kg

≤±1%
