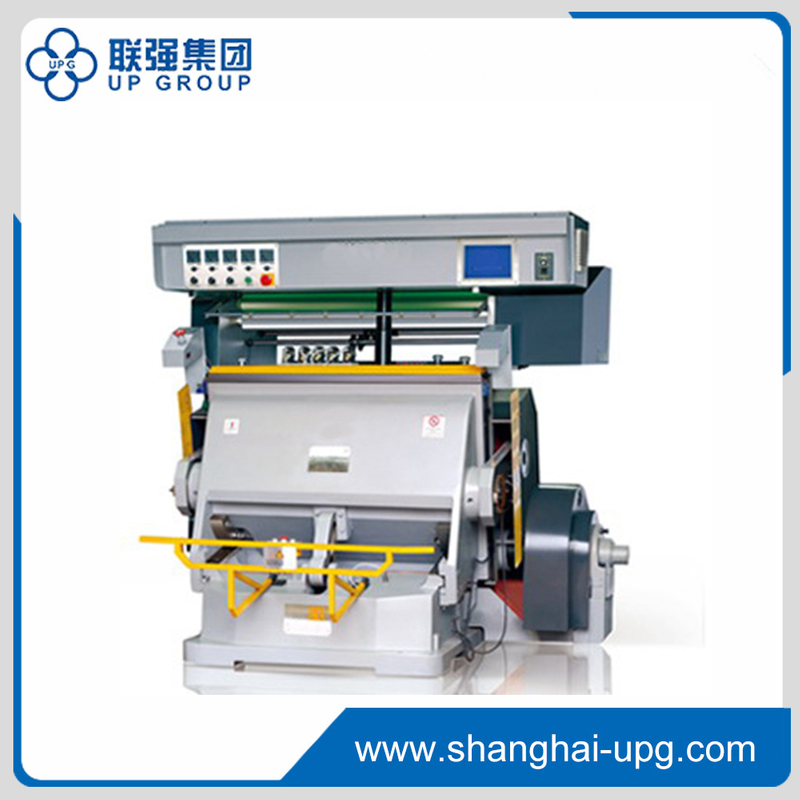

LQTYMC-1300/1400/1500
UPG
1. LQTYMC series of hot foil stamping machines have the function of hot stamping, die cutting and concave-convex forming.
2. The display system with LCD/touch screen greatly improves the productivity.
3. This machine adopts PLC microcomputer control, 2 group to 3 group’s stepper motor drive for reliable operation and convenient adjustment
4. The temperature control is divided by 4 to 5 zones. Fast and even heating, low power consumption, constant temperature control, real-time temperature display function which improves the hot stamping quality.<o:p>
| Model | LQTYMC-1400 |
| Max-Plate Efficient Breath | 1400×1000mm |
| Max. Stamping Size | 1400×1000mm |
| Groups Of Feeding Foil | 3 |
| Max. Length Of Feeding | 1000mm |
| Leapfrogging Scope | 0-99 |
| Power Of Heating Plate | 21kw |
| Total Power | 28.5kw |
| Main Motor Power | 7.5kw 6pole |
| Speed | 23±2(sheets/min) |
| Gross Weight | 7300kg |
| Individual Zones Of Heating Plate | 5 |
| Overall Dimensions (L×W×H) | 2050×2450×2100mm |
