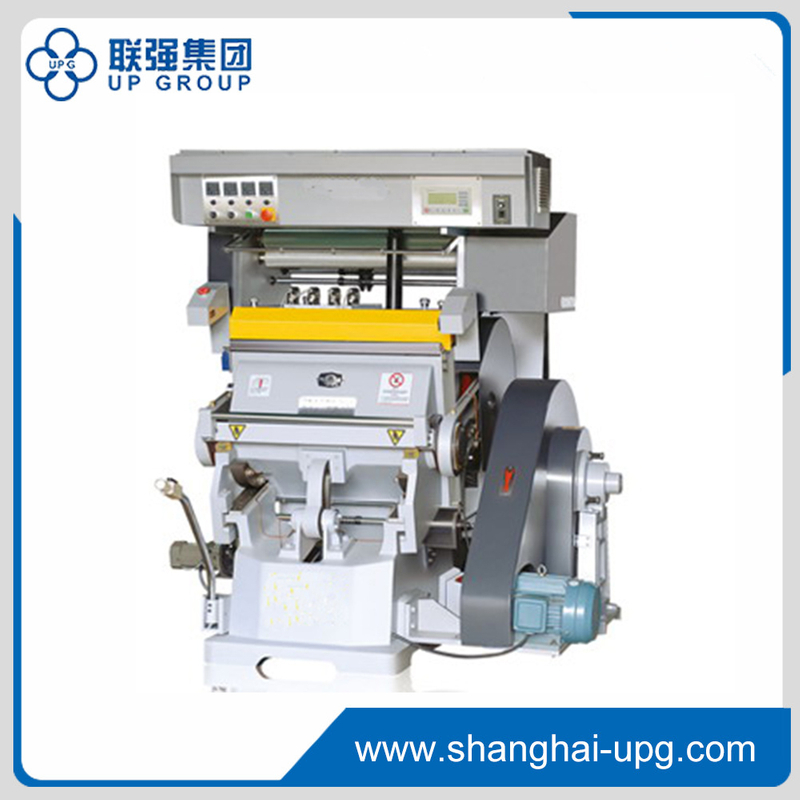

LQTYMC-750
UPG
1. LQTYMC series of hot foil stamping machines have the function of hot stamping, die cutting and concave-convex forming.
2. The display system with LCD/touch screen greatly improves the productivity.
3. This machine adopts PLC microcomputer control, 2 group to 3 group’s stepper motor drive for reliable operation and convenient adjustment
4. The temperature control is divided by 4 to 5 zones. Fast and even heating, low power consumption, constant temperature control, real-time temperature display function which improves the hot stamping quality.<o:p>
1. LQTYMC series of hot foil stamping machines have the function of hot stamping, die cutting and concave-convex forming.
2. The display system with LCD/touch screen greatly improves the productivity.
3. This machine adopts PLC microcomputer control, 2 group to 3 group’s stepper motor drive for reliable operation and convenient adjustment
4. The temperature control is divided by 4 to 5 zones. Fast and even heating, low power consumption, constant temperature control, real-time temperature display function which improves the hot stamping quality.<o:p>
Model | LQTYMC-750 |
Max-Plate Efficient Breadth | 750×520mm |
Max. Stamping Size | 750×520mm |
Groups Of Feeding Foil | 2 |
Max. Length Of Feeding | 520mm |
Leapfrogging Scope | 0-99 |
Power Of Heating Plate | 8kw |
Total Power | 10.2kw |
Main Motor Power | 2.2kw 6pole |
Speed | 28±2(sheets/min) |
Gross Weight | 2300kg |
Individual Zones Of Heating Plate | 4 |
Overall Dimensions (L×W×H) | 1540×1660×1970mm |
Model | LQTYMC-750 |
Max-Plate Efficient Breadth | 750×520mm |
Max. Stamping Size | 750×520mm |
Groups Of Feeding Foil | 2 |
Max. Length Of Feeding | 520mm |
Leapfrogging Scope | 0-99 |
Power Of Heating Plate | 8kw |
Total Power | 10.2kw |
Main Motor Power | 2.2kw 6pole |
Speed | 28±2(sheets/min) |
Gross Weight | 2300kg |
Individual Zones Of Heating Plate | 4 |
Overall Dimensions (L×W×H) | 1540×1660×1970mm |
