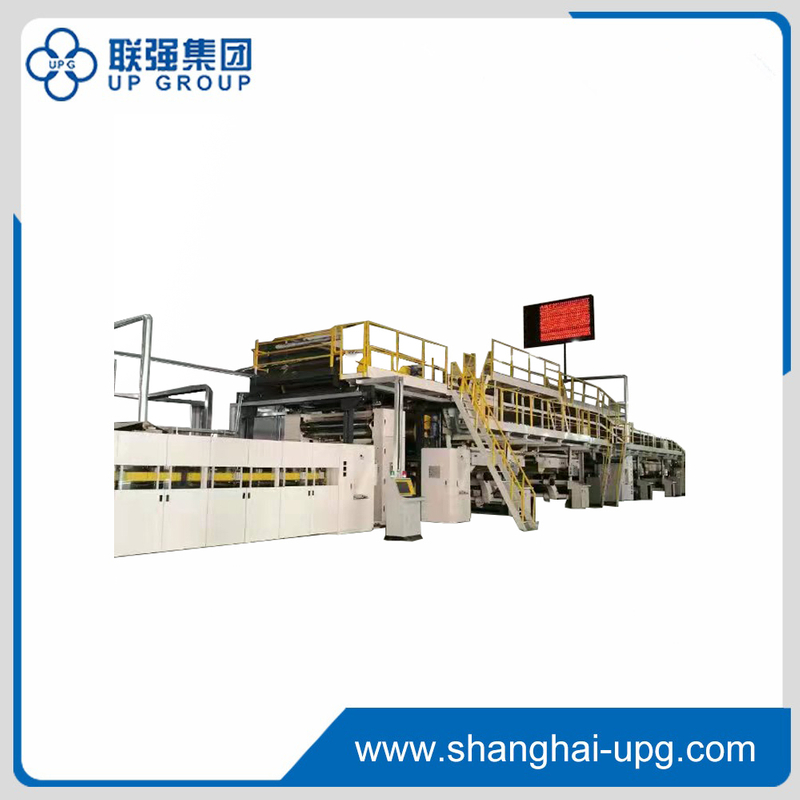

LQWJ 2000-150 Single Facer line

Availability:
Quantity:

PDF Export

  • LQWJ 2000-150

  • UPG

Stand move mode

Full hydraulic action

Working width

Max 1600mm    Min 800mm

Paper diameter

Max1500mm   Min350mm

Single Load

Max 3000kg

Stand main bearing diameter

210mm

Air working pressure(MPa)

0.6~0.9MPa

Total power

5.5kw

Working power

Pressure,380V  Frequency,50Hz

Dimension

3850×1600×1650(L×W×H)



Working pressure(MPa)

12~16 MPa

Hydraulic pump working span(swing)

100mm×460mm

Hydraulic pump diameter (clamption)

63mm×770mm

Hydraulic station motor power

5.5kw,Continuous work

Hydraulic station electro magnetism working pressure

220V   50Hz



  • Symmetry structure could install two bundles real paper at the same time, and change the paper without any stop.

  • Adopt hydraulic drive that could make the real paper lift-lower, clamp and release and move.

  • Adopt pneumatic strain to adjust the real paper.

  • Expanding clips design.

  • Tension control by pneumatic brake system, manual controlled and also can be controlled by splicer.


  • Stand main bearing adopts high quality thick-walled seamless steel pipe. Origin: Chengdu

  • Two side wall plates and arms adopt: HT200 casting        Origin: Hebei

  • Main beam like channel steel:  280mm                 Origin: An steel

  • Bearing:made in Ha, Wa , Luo .

  • Electrical device:made in Chint, ZheJiiang.

  • Pneumatic component:  Airtac, Zaozhuang     Origin: Taiwan, Shandong

  • Hydraulic:Beiye Group(Huade)    Origin: BeiJiing, Zaozhuang, Shandong
