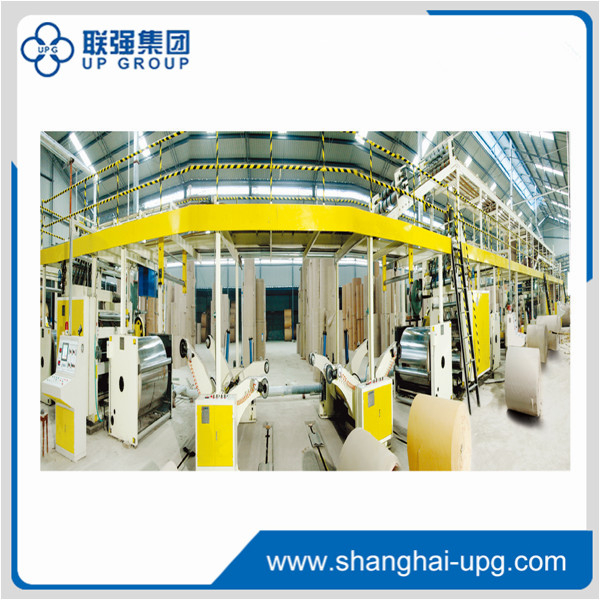

LQ180-1600 5
UPG
Mill roller stand
Hydraulic control of the lifting and lowering, clamping and releasing, right-left movement.
Pneumatic brake control of the web tension.
Taper center, stretch center is optional.
Single facer
Flooding system lubrication of the reduction gearbox, gimbal transmission, isolated power supply, frequency conversing control of the main unit.
Pneumatic control of lifting and lowering of the upper roll,press roll, gluing roll.
Vacuum suction system provide perfect flute shape.
The bearings of corrugated rolls and press rolls are lubricated by high temperature lubricating grease.
Auto-circulating glue feeding system is provided.
Surface of gluing roll is embossed with netting design and chrome plated.
The corrugated roll is made of special alloy steel of 48CrMo with grinding process and induction hardened with hardness of HRC56-60.
Single facer
Separate upper and lower roll from the main machine, with guideway equipped to the bridge, easy to replace rolls.
Vacuum suction system provide perfect flute shape,blast volume controller is equipped.
Gimbal transmission, Individual driving box to improve running stability. Gears are all lubricated with special grease to provide outstanding sealing performance and reliable lubricating.
Guideway slipping of the gluing roll and upper roll, easy to replace rolls
Pneumatic control of the upper roll,press roll, gluing roll.
The bearings of corrugated rolls and press rolls are lubricated by high temperature lubricating grease.
Motorized digital read out device. Manual ajustment of the glue application amount.
The corrugated roll is made of special alloy steel of 48CrMo with grinding process and induction hardened with hardness of HRC56-60.
Pre-heater
The surface of the Rolls are polished and plated with chrome.
Electric control of the heating area.
Butterfly head design ,assuring adequate heating.
Simplex, duplex and triplex glue machine are respectively.
Gluing machine
Separate motor driving,frequency converrtor control the gluing.
High precision engraved applicator roll ensure ever gule application and less glue consumption.
Auto-circulating glue feeding system is applied to avoid glue depositing.
The preheating device speed up glue gelling and create a stronger glue bond.
Press roll and spring pressure plate are applied as the paper pressing device.
Electric adjustment of the figure display of the glue amount. Manual adjustment of the glue feeding.
Double Facer baker
Grounded surface for the hot plate.
Dense press roll are applied , press plate is optional, motorized lifting or lowering as a whole, hydraulic lifting or lowering system is optional.
Sectionally or integrally pressing according to the number of plies.
Manual deviation-correcting device is equipped for the lower cotton belt.The upper cotton belt is equipped with automatic or manual deviation-correcting device and pneumatic tension device.
Dense suspended press rolls are applied to the cool system, oil-immersed seal driving.
Rubber-wrapped drive roll longer use of the cotton belt.
Slitter scorer
Four blades with six lines and five blades with eight lines are available.
Frequency converter driving.
Motorized lifting and lowering of working station.
Thin blade enable clean cutting edge at high speed.
Automatic grinding device keeps blade edge sharp all along.Knife grinding meter and frequency can be set according to paper material and slitting conditions.
Motorized transverse movement.
Computerized Slitter Scorer
Electric pivot-wise movement of 80mm of machine as a whole,effectively matching shift of paper width.
Computer memory capacity of 999 orders.
Separate memory of the span length.Knife grinding meter and frequency can be set according to paper material and slitting conditions.
High or Low of scoring wheels can be set by computer according to the flute profiles.
Computercontrolled lubrication of the whole machine
NC cutting machine
Autocyc oil pump lubricationthe transmitting unit.
Computer-monitored tracking of production lines,assuring simultaneous pace.
Computer memory of many orders. Screen display the production information. outputting any one of orders according to finished ones or based on actual needs.
Precise adjustable seamless gear assuring good mesh.
Cardboard Feeding Machine
Automatic stacking and collecting of the cardboard
Motorized transverse output,transmitted with broad belt for vertical stacking
Switch control of the paperboard to specified height and number.
