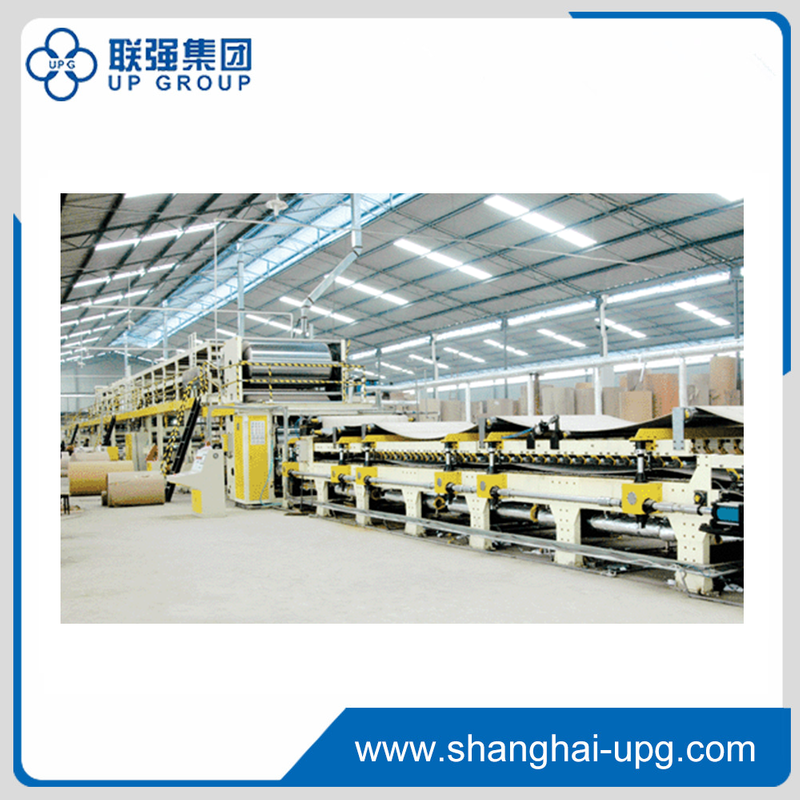

LQWJ150-1600 5-layer Corrugated Cardboard Production Line

Corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge,gluing machine, slitter scorer machine, cut off machine and stacker. We can manufacture the single wall ,double wall and triple wall board production line. Effective Width:1600mm Production speed:150 meters/min
Availability:
Quantity:

PDF Export

LQWJ150-1600 5-layer Corrugated Cardboard Production Line
  • LQWJ150-1600

  • UPG

Corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge,gluing machine, slitter scorer machine, cut off machine and stacker. We can manufacture the single wall ,double wall and triple wall board production line. Effective Width:1600mm Production speed:150 meters/min


Design speed150m/min
Economic speed120m/min
Working width1600mm
Flute profilesA, B, or according to client`s requirements
Steam requirementsSteam quantity: 2500-4000Kg/Hr   Max. pressure: 1.3Mpa
Normal pressure: 0.98-1.12MPa
Electricity

380V, 50Hz three-phase, or four phase

Equipment DirectionLeft or Right transmission will be according to client`s requirements

Note: The roll paper which is used to test the production speed should meet following requirements:

Grade: MinB
Moisture content11%±1%
Face paper150~200g/m2
Liner paper150~200g/m2
Corrugated paper105~180g/m2
