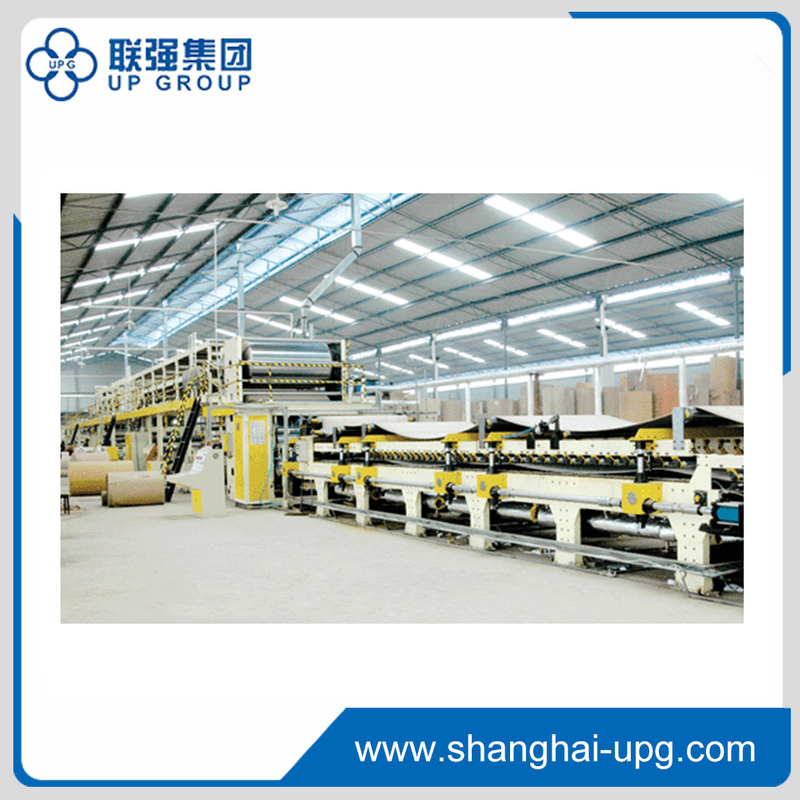

LQWJ100-2000 5 Ply Corrugated Cardboard Production Line

Corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge,gluing machine, slitter scorer machine, cut off machine and stacker. We can manufacture the single wall ,double wall and triple wall board production line.
Quantity:
  • LQWJ100-2000
  • UPG

Corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge,gluing machine, slitter scorer machine, cut off machine and stacker. We can manufacture the single wall ,double wall and triple wall board production line.

Design Speed

100m/min

Economic Speed

80m/min

Working Width

2000mm

Production Line Length

About 70m(Exact length basis on groundwork drawing)

Flute Profiles

A、C、B、E Flute(Or according to the customers` requirement)

Steam Requirement

quantity2500-3200Kg/Hr  Max pressure 1.3Mpa

Common pressure 0.98-1.12MPa

Power Supply

380V 50Hz Three Phase Four Wire System

Total Power

About 200 kw

Common Power

About 150 kw

Equipment Szie

60m×10m×4.5m(L×W×H)

Equipment Flowing Direction

According to the user factory to fix right or left
