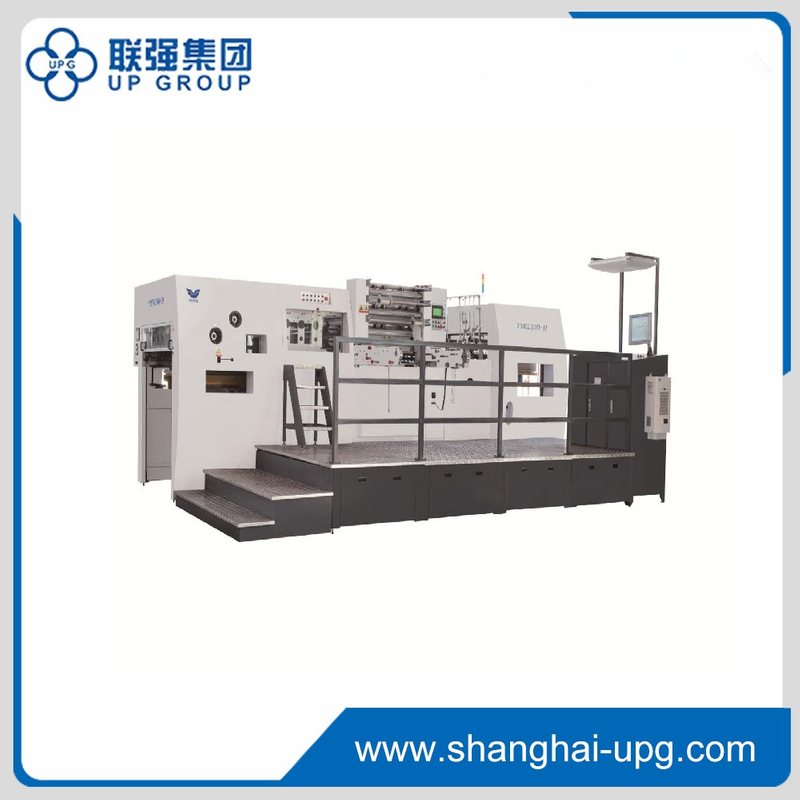

TYM1300-H Automatic Foil Stamping & Die-cutting Machine

TYM1300-H automatic foil stamping and die-cutting machine is mainly used for the die-cutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.

Quantity:
  • TYM1300-H
  • UPG

TYM1300-H automatic foil stamping and die-cutting machine is mainly used for the die-cutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. This kind of machine is a new generation of foil stamping series on the basis of TYM1020-H, it’s incorporated with fully automatic feeding, die-cutting, stamping, delivering foil, delivering sheet, up-press, down-press, leap step, counting, heating, pre-heating, obstacle indicating, checking and measuring. It has the features of large range of paper processing, easy operating, reliability, high speed, press and precision.

Longitudinal and lateral foil stamping devices are equipped which make foil stamping process more reasonable.
The longitudinal foil-delivering unit can be pulled out when you install the foil, convenient for operation.
Manual foil-stringing device is used to improve the efficiency of work.
The registration of foil stamping steel plate adopts side-press registering structure, which improves the accuracy of repeat registration.
Pneumatic plate-locking device is equipped which improves the level of automation.
The main driving chain adopts big-pitch chains, which reduce the inertia of running, improves stability of precision. Force moment controller is used to improve the coefficient of safety.
The front and back registration of gripper bars adopt adjustable device, make it convenient to adjust the precision of front lay.
The front lay adopts numerical control instead of former manual adjustment, convenient and audio-visual.
Cooling device for lubricating oil is added which reduces the wear of parts when they are heated, ensures the constant pressure of die-cutting and foil stamping.
Cooling device for electrical box is added which improves the using lifetime of electrical parts.



Max. Sheet   Size

1300x960mm

Min. Sheet   Size

                      500x450mm

Max.   Die-Cutting Speed

6000s/h

Max.   Stamping Speed

5000s/h

Max. Pressure

500T

Quantity Of   Heating Area

                              20

Power Of   Heating Area

25.2kw

Max.   Die-Cutting Size

1290x950mm

Max. Foil   Stamping Size

Longitudinal:1290x950mm

Lateral:1290x750mm

Quantity Of   Foil Shaft

                  Longitudinal:4pcs

                       Lateral:3pcs

Max. Foil   Diameter

200mm

Die-Cutting   Precision

≤±0.125mm

Foil   Stamping Precision

≤±0.125mm

Max.   Feeding Pile

1350mm

Max.   Delivery Pile

1300mm

Sheet   Thickness

 Corrugated Paper 4mm

Cardboard   0.1-1 .5mm

Net Weight

23T

Main Motor   Power

15kw

Total   Power

50kw

Overall   Dimension

7600X4000X2450mm
