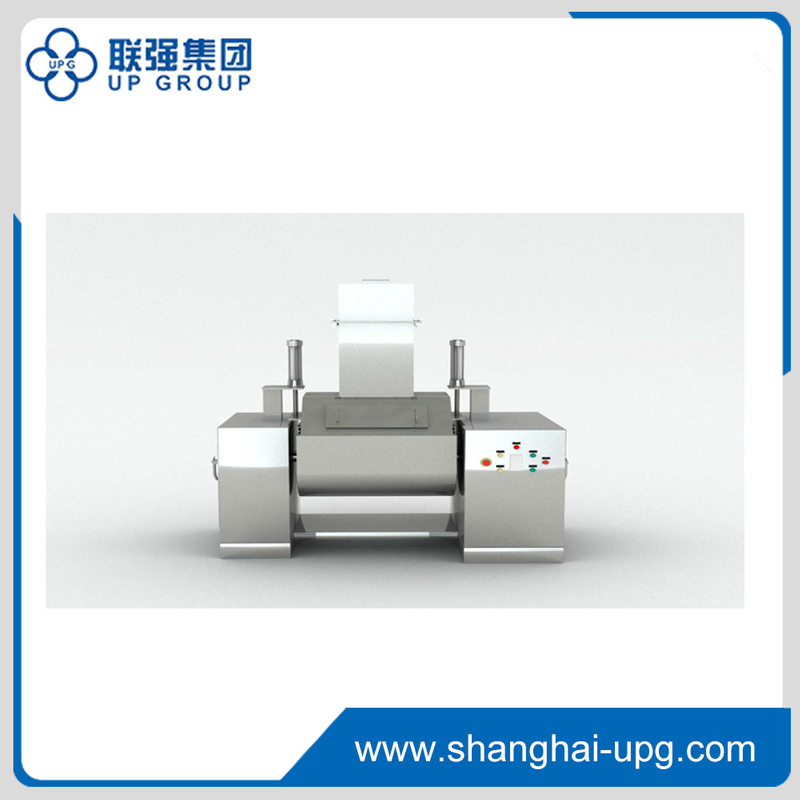

LQ-CH Series Horizontal Tank-type Mixer

This series mixer is widely applied for the materials of powder and pasty in pharmaceutical, chemical, foodstuff industries, it could mix the main materials and accessories with different proportions evenly.
Quantity:
  • LQ-CH
  • UPG

This series mixer is widely applied for the materials of powder and pasty in pharmaceutical, chemical, foodstuff industries, it could mix the main materials and accessories with different proportions evenly.
It also have the features of simple construction, easy to operation and cleaning, good sealing property, low energy consumption. The frame of the machine and the parts which contact the material are both made of high quality stainless steel.

Model LQ-CH-50 LQ-CH-100 LQ-CH-150 LQ-CH-200 LQ-CH-300 LQ-CH-400 LQ-CH-500 LQ-CH-600
Type of paddle S Type Single Paddle
Barrel Volume 50L 100L 150L 200L 300L 400L 500L 600L
Max Loading Volume 35L 70L 110L 150L 210L 300L 400L 550L
Max Loading Weight 30kg 60kg 90kg 140kg 180kg 250kg 300kg 380kg
Agitating Paddle Speed  24r/min
Turning Angle ﹤105°
Stirring Motor Power 1.5kw 2.2kw 3.0kw 4.0kw 5.5kw 5.5kw 7.5kw 7.5kw
Discharging Motor Power 0.18kw 0.55kw 0.75kw 0.75kw 1.1kw 1.5kw 1.5kw 2.2kw
Machine Weight 200kg 500kg 650kg 720kg 750kg 780kg 820kg 850kg
Overall Dimension(mm) 1350*420*750 1500*500*900 1700*600*1000 1850*600*1000 2150*700*1250 2280*700
*1250
2400*900*1350 2500*900*1350
