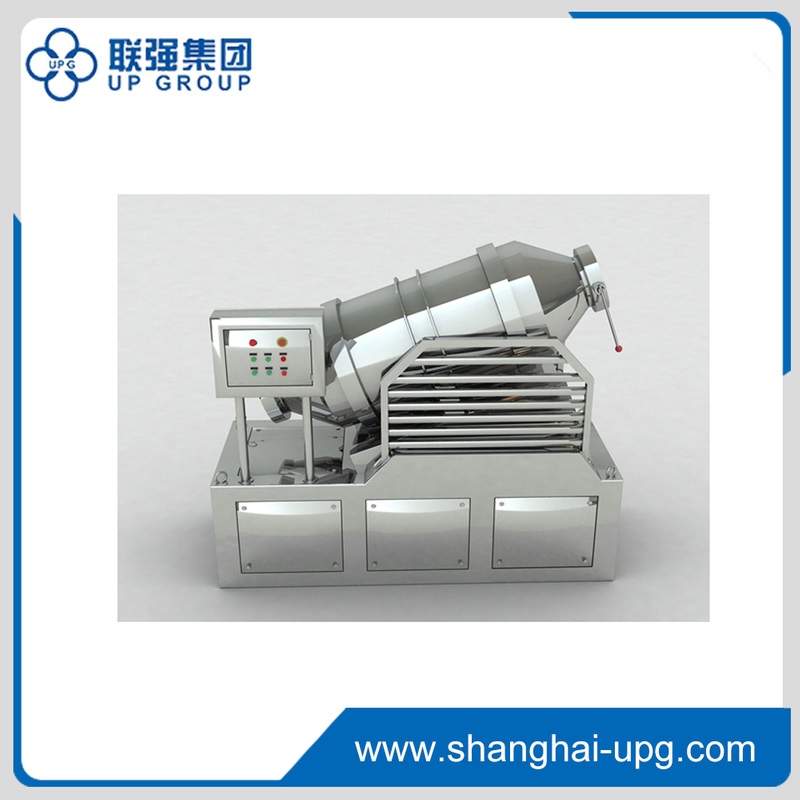

LQ-EYH
UPG
This series mixer is widely applied for pharmaceutical, foodstuff, chemical, colorant, forage, chemical fertilizer industries, etc., It is especially suitable for mixing large-tonnage(1000L-10000L) solid materials.
This series mixer is widely applied for pharmaceutical, foodstuff, chemical, colorant, forage, chemical fertilizer industries, etc., It is especially suitable for mixing large-tonnage(1000L-10000L) solid materials.
| Model | Barrel Volume | Max. Loading Volume | Max. Loading Weight | Mixing Time | Barrel Rotating Speed | Barrel Swing Speed | Rotating Motor Power | Swing Motor Power | Overall Dimension | Weight |
| LQ-EYH-50 | 50L | 25L | 25kg | 0-99min | 20r/min | 11.5r/min | 0.55kw | 0.75kw | 900*730*950mm | 115kg |
| LQ-EYH-100 | 100L | 50L | 50kg | 0-99min | 20r/min | 11.5r/min | 0.75kw | 1.1kw | 1365*810*1150mm | 190kg |
| LQ-EYH-150 | 150L | 75L | 75kg | 0-99min | 20r/min | 11.5r/min | 1.1kw | 1.1kw | 1650*950*1250mm | 210kg |
| LQ-EYH-200 | 200L | 100L | 100kg | 0-99min | 20r/min | 7.5r/min | 1.1kw | 1.1kw | 1850*1000*1340mm | 285kg |
| LQ-EYH-300 | 300L | 150L | 150kg | 0-99min | 17r/min | 7.5r/min | 1.1kw | 1.1kw | 1800*1050*1450mm | 340kg |
| LQ-EYH-400 | 400L | 200L | 200kg | 0-99min | 15r/min | 7.5r/min | 1.1kw | 1.1kw | 1950*1140*1550mm | 545kg |
| LQ-EYH-600 | 600L | 300L | 300kg | 0-99min | 15r/min | 7.5r/min | 1.1kw | 1.5kw | 1990*1300*1650mm | 1150kg |
| LQ-EYH-800 | 800L | 400L | 400kg | 0-99min | 12r/min | 7.5r/min | 1.5kw | 1.5kw | 2100*1350*1710mm | 1600kg |
| LQ-EYH-1000 | 1000L | 500L | 500kg | 0-99min | 12r/min | 7.5r/min | 1.5kw | 2.2kw | 2500*1500*1850mm | 1700kg |
| LQ-EYH-1500 | 1500L | 750L | 750kg | 0-99min | 10r/min | 7.5r/min | 3.0kw | 4.0kw | 2630*1670*2050mm | 2000kg |
| LQ-EYH-2000 | 2000L | 1000L | 1000kg | 0-99min | 8r/min | 5.0r/min | 4.0kw | 4.0kw | 2840*1780*2170mm | 2600kg |
| LQ-EYH-3000 | 3000L | 1500L | 1500kg | 0-99min | 6r/min | 5.0r/min | 5.5kw | 5.5kw | 3200*2100*2550mm | 3500kg |
| LQ-EYH-4000 | 4000L | 2000L | 2000kg | 0-99min | 5r/min | 3.7r/min | 7.5kw | 11.0kw | 3670*2560*2980mm | 4100kg |
| Model | Barrel Volume | Max. Loading Volume | Max. Loading Weight | Mixing Time | Barrel Rotating Speed | Barrel Swing Speed | Rotating Motor Power | Swing Motor Power | Overall Dimension | Weight |
| LQ-EYH-50 | 50L | 25L | 25kg | 0-99min | 20r/min | 11.5r/min | 0.55kw | 0.75kw | 900*730*950mm | 115kg |
| LQ-EYH-100 | 100L | 50L | 50kg | 0-99min | 20r/min | 11.5r/min | 0.75kw | 1.1kw | 1365*810*1150mm | 190kg |
| LQ-EYH-150 | 150L | 75L | 75kg | 0-99min | 20r/min | 11.5r/min | 1.1kw | 1.1kw | 1650*950*1250mm | 210kg |
| LQ-EYH-200 | 200L | 100L | 100kg | 0-99min | 20r/min | 7.5r/min | 1.1kw | 1.1kw | 1850*1000*1340mm | 285kg |
| LQ-EYH-300 | 300L | 150L | 150kg | 0-99min | 17r/min | 7.5r/min | 1.1kw | 1.1kw | 1800*1050*1450mm | 340kg |
| LQ-EYH-400 | 400L | 200L | 200kg | 0-99min | 15r/min | 7.5r/min | 1.1kw | 1.1kw | 1950*1140*1550mm | 545kg |
| LQ-EYH-600 | 600L | 300L | 300kg | 0-99min | 15r/min | 7.5r/min | 1.1kw | 1.5kw | 1990*1300*1650mm | 1150kg |
| LQ-EYH-800 | 800L | 400L | 400kg | 0-99min | 12r/min | 7.5r/min | 1.5kw | 1.5kw | 2100*1350*1710mm | 1600kg |
| LQ-EYH-1000 | 1000L | 500L | 500kg | 0-99min | 12r/min | 7.5r/min | 1.5kw | 2.2kw | 2500*1500*1850mm | 1700kg |
| LQ-EYH-1500 | 1500L | 750L | 750kg | 0-99min | 10r/min | 7.5r/min | 3.0kw | 4.0kw | 2630*1670*2050mm | 2000kg |
| LQ-EYH-2000 | 2000L | 1000L | 1000kg | 0-99min | 8r/min | 5.0r/min | 4.0kw | 4.0kw | 2840*1780*2170mm | 2600kg |
| LQ-EYH-3000 | 3000L | 1500L | 1500kg | 0-99min | 6r/min | 5.0r/min | 5.5kw | 5.5kw | 3200*2100*2550mm | 3500kg |
| LQ-EYH-4000 | 4000L | 2000L | 2000kg | 0-99min | 5r/min | 3.7r/min | 7.5kw | 11.0kw | 3670*2560*2980mm | 4100kg |
