LQ-CW
UPG

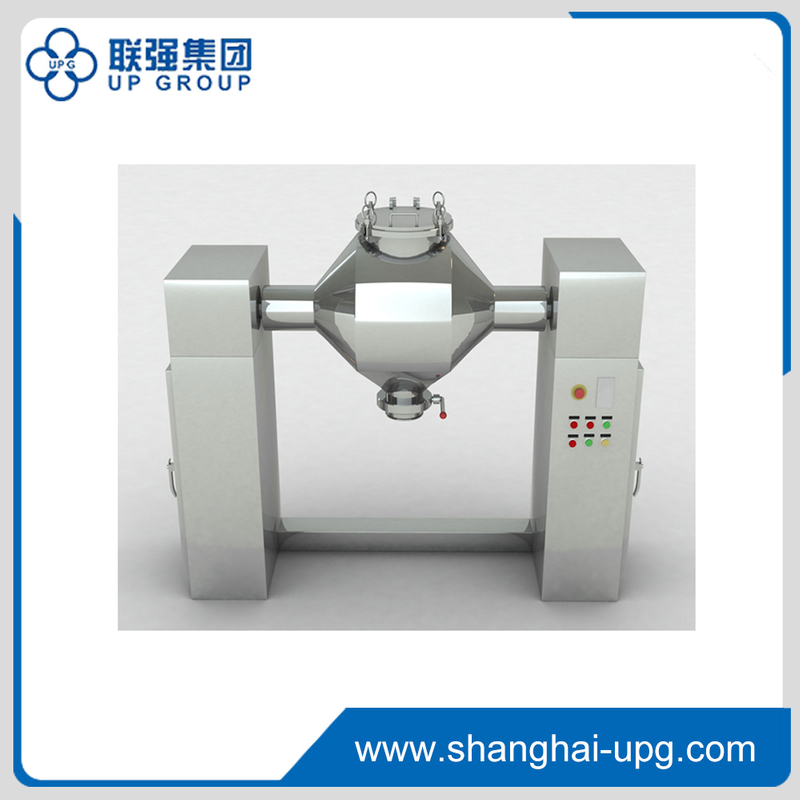

This series mixer is applied for mixing the materials in pharmaceutical, foodstuff, chemical, forage industries, etc., It is specially suitable for the materials with the features of easy-clot and contain small amount of water, thus have the quick mixing and good effect, the evenness degree of mixed material could reach over 95%.
This series mixer is applied for mixing the materials in pharmaceutical, foodstuff, chemical, forage industries, etc., It is specially suitable for the materials with the features of easy-clot and contain small amount of water, thus have the quick mixing and good effect, the evenness degree of mixed material could reach over 95%.
Model | Barrel Volume | Max. Loading Volume | Max. Loading Weight | Mixing Time | Mixing Motor Power | Stirring Motor Power | Mixing Speed | Stirring Speed | Overall Dimension |
LQ-CW-50 | 50L | 25L | 25kg | 0-99min | 1.1kw | 0.75kw | 20r/min | 60r/min | 1500*450*1200mm |
LQ-CW-100 | 100L | 50L | 50kg | 0-99min | 1.5kw | 1.1kw | 20r/min | 60r/min | 1550*550*1350mm |
LQ-CW-200 | 200L | 100L | 100kg | 0-99min | 2.2kw | 1.1kw | 20r/min | 60r/min | 1800*700*1500mm |
LQ-CW-300 | 300L | 150L | 150kg | 0-99min | 2.2kw | 1.1kw | 20r/min | 60r/min | 2100*760*1760mm |
LQ-CW-500 | 500L | 250L | 250kg | 0-99min | 3.0kw | 2.2kw | 20r/min | 60r/min | 2320*950*1920mm |
LQ-CW-1000 | 1000L | 500L | 500kg | 0-99min | 5.5kw | 2.2kw | 10r/min | 40r/min | 2450*1050*2500mm |
LQ-CW-1500 | 1500L | 750L | 750kg | 0-99min | 7.5kw | 4.0kw | 10r/min | 40r/min | 2900*1300*2700mm |
LQ-CW-2000 | 2000L | 1000L | 1000kg | 0-99min | 7.5kw | 4.0kw | 8r/min | 30r/min | 3000*1400*3100mm |
CW-2500 | 2500L | 1250L | 1250kg | 0-99min | 11.0kw | 5.5kw | 6r/min | 20r/min | 3600*1400*3200mm |
CW-3000 | 3000L | 1500L | 1500kg | 0-99min | 11.0kw | 5.5kw | 6r/min | 20r/min | 4000*1500*3500mm |
CW-4000 | 4000L | 2000L | 2000kg | 0-99min | 15.0kw | 5.5kw | 6r/min | 20r/min | 4800*1300*3800mm |
