LQ-WLDH
UPG

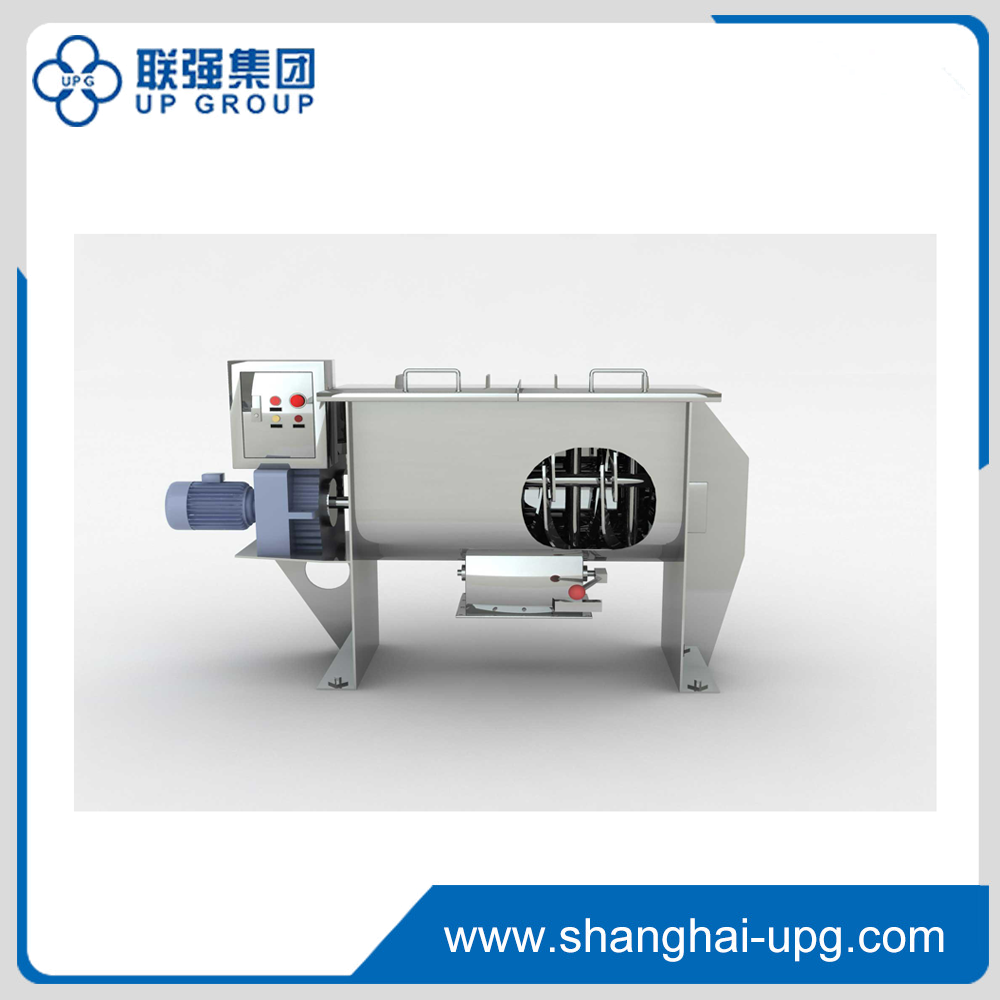

This series horizontal ribbon mixer is a high efficient and high mixing uniformity equipment which also have the features of high loading volume, low consumption, low pollution, low noise, low broken, running stable, convenient for installation and maintain, etc..
This equipment is normally applied for mixing the powder or granule materials with the features of stickiness or coherence, add liquid in powder or granule or pasty materials. It is specially suitable for stirring paste, viscous or large proportion materials(such as putty, lacquer, metal powder, etc.,). It is widely used in pharmaceutical, foodstuff, pesticide, colorant, chemical, plastic, ceramic, coating, mortar industries. Meanwhile, due to te sticky material is difficult to clean, so it is also suitable for the situations of large output or seldom change material to mix.
This series horizontal ribbon mixer is a high efficient and high mixing uniformity equipment which also have the features of high loading volume, low consumption, low pollution, low noise, low broken, running stable, convenient for installation and maintain, etc..
This equipment is normally applied for mixing the powder or granule materials with the features of stickiness or coherence, add liquid in powder or granule or pasty materials. It is specially suitable for stirring paste, viscous or large proportion materials(such as putty, lacquer, metal powder, etc.,). It is widely used in pharmaceutical, foodstuff, pesticide, colorant, chemical, plastic, ceramic, coating, mortar industries. Meanwhile, due to te sticky material is difficult to clean, so it is also suitable for the situations of large output or seldom change material to mix.
Model | Barrel Volume | Loading Volume | Mixing Time | Motor Power | Overall Dimension(mm) | Discharge Hole Size | Weight |
LQ-WLDH-100 | 100L | 40-60L | 0-99min | 2.2kw | 1340*380*850 | 390*200mm | 250kg |
LQ-WLDH-200 | 200L | 80-120L | 0-99min | 4.0kw | 1725*630*865 | 390*260mm | 350kg |
LQ-WLDH-300 | 300L | 120-180L | 0-99min | 5.5kw | 1905*780*990 | 390*260mm | 450kg |
LQ-WLDH-400 | 400L | 160-240L | 0-99min | 7.5kw | 2500*700*1000 | 390*260mm | 550kg |
LQ-WLDH-500 | 500L | 200-300L | 0-99min | 7.5kw | 2290*730*2200 | 390*260mm | 500kg |
LQ-WLDH-800 | 800L | 320-480L | 0-99min | 11kw | 3150*900*1400 | 690*320mm | 1000kg |
LQ-WLDH-1000 | 1000L | 400-600L | 0-99min | 11kw | 3260*920*1450 | 690*320mm | 1200kg |
LQ-LQ-WLDH-1500 | 1500L | 600-900L | 0-99min | 15kw | 3760*920*1525 | 690*320mm | 1500kg |
LQ-WLDH-2000 | 2000L | 800-1200L | 0-99min | 22kw | 4250*1350*1800 | 690*320mm | 2000kg |
WLDH-3000 | 3000L | 1200-1800L | 0-99min | 30kw | 4090*1530*2280 | 690*320mm | 3000kg |
Model | Barrel Volume | Loading Volume | Mixing Time | Motor Power | Overall Dimension(mm) | Discharge Hole Size | Weight |
LQ-WLDH-100 | 100L | 40-60L | 0-99min | 2.2kw | 1340*380*850 | 390*200mm | 250kg |
LQ-WLDH-200 | 200L | 80-120L | 0-99min | 4.0kw | 1725*630*865 | 390*260mm | 350kg |
LQ-WLDH-300 | 300L | 120-180L | 0-99min | 5.5kw | 1905*780*990 | 390*260mm | 450kg |
LQ-WLDH-400 | 400L | 160-240L | 0-99min | 7.5kw | 2500*700*1000 | 390*260mm | 550kg |
LQ-WLDH-500 | 500L | 200-300L | 0-99min | 7.5kw | 2290*730*2200 | 390*260mm | 500kg |
LQ-WLDH-800 | 800L | 320-480L | 0-99min | 11kw | 3150*900*1400 | 690*320mm | 1000kg |
LQ-WLDH-1000 | 1000L | 400-600L | 0-99min | 11kw | 3260*920*1450 | 690*320mm | 1200kg |
LQ-LQ-WLDH-1500 | 1500L | 600-900L | 0-99min | 15kw | 3760*920*1525 | 690*320mm | 1500kg |
LQ-WLDH-2000 | 2000L | 800-1200L | 0-99min | 22kw | 4250*1350*1800 | 690*320mm | 2000kg |
WLDH-3000 | 3000L | 1200-1800L | 0-99min | 30kw | 4090*1530*2280 | 690*320mm | 3000kg |
