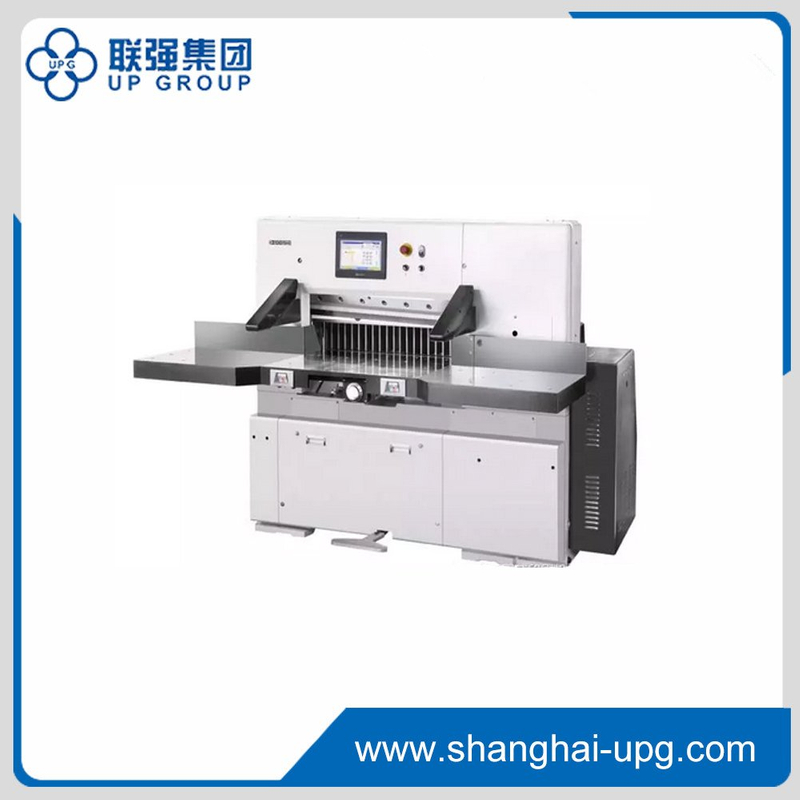

LQ-K Series Program Control Paper Cutter

Share to:

LQ-K Series Program Control Paper Cutter

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-92/115/130/137/155/166/186/220 K
Brand:
UPG
Code:
8441100000

It equipped AC digital servo controlling technology and 7 inches colorful touching screen,the data resolution rate is 0.01mm, Full touch operating system for human computer interface,has self-diagnostic function of troubles and displays the operating pattern,100 program units,over10000 different cutting positions,it can memorize,store and dynamic follow-up.The max paper-pushing speed is 5-15m/min.It adopts Japanese hydraulic components,Japan and Korean electric components.Japan、Taiwan ball lead screw and linear double guide-rail,PLC control system for electric configuration,Its key parts adopt imported bearing of low maintenance.IR ray protective device is more convenient for cutting with optical knife-line alignment,button operated by two hands,single circulation cutting device etc.

Model / Specifications	92	115	130	137	155	166	186	220
Cutting width(cm)	92	115	130	137	155	166	186	220
Max.cutting height without assistance pressing plate(cm)	13	16.5	13	16.5	16.5	16.5	16.5	16.5
Max.cutting depth(cm)	93	115	130	145	155	166	200	220
Min cutting depth without assistance pressing plate(cm)	2.3	2.5	2.5	3	3	3	3	3
Extended length of working table(cm)	65	73	73	74	75	75	75	75
Height of working table(cm)	86-90	88-92	86-91	89-92	89-92	89-92	89-92	89-92
Machine width including side working table(cm)	233	266	266	287	314	322	342	376
Total length of working table(cm)	198	226	241	259	280	283	327	355
Cutting speed(r/min)	45	45	45	45	42	42	40	33
Max. Paper pressure(n)	35000	40000	40000	45000	55000	60000	65000	70000
Power of main motor(kw)	3	4	4	4	5.5	5.5	7.5	7.5
Motor for paper feeding(kw)	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.20
Air pump(kw)	0.55	0.75	0.75	0.75*2	0.75*2	0.75*2	0.75*2	0.75*2
Machine weight(kg)	2600	4000	3900	4500	5200	5500	7000	10200
Overall dimension(L x w x h)(cm)	228x140x195	255x160x215	260x153x195	280x160x215	296x165x215	315x160x215	340x182x230	390x190x270

Model / Specifications	92	115	130	137	155	166	186	220
Cutting width(cm)	92	115	130	137	155	166	186	220
Max.cutting height without assistance pressing plate(cm)	13	16.5	13	16.5	16.5	16.5	16.5	16.5
Max.cutting depth(cm)	93	115	130	145	155	166	200	220
Min cutting depth without assistance pressing plate(cm)	2.3	2.5	2.5	3	3	3	3	3
Extended length of working table(cm)	65	73	73	74	75	75	75	75
Height of working table(cm)	86-90	88-92	86-91	89-92	89-92	89-92	89-92	89-92
Machine width including side working table(cm)	233	266	266	287	314	322	342	376
Total length of working table(cm)	198	226	241	259	280	283	327	355
Cutting speed(r/min)	45	45	45	45	42	42	40	33
Max. Paper pressure(n)	35000	40000	40000	45000	55000	60000	65000	70000
Power of main motor(kw)	3	4	4	4	5.5	5.5	7.5	7.5
Motor for paper feeding(kw)	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.20
Air pump(kw)	0.55	0.75	0.75	0.75*2	0.75*2	0.75*2	0.75*2	0.75*2
Machine weight(kg)	2600	4000	3900	4500	5200	5500	7000	10200
Overall dimension(L x w x h)(cm)	228x140x195	255x160x215	260x153x195	280x160x215	296x165x215	315x160x215	340x182x230	390x190x270
