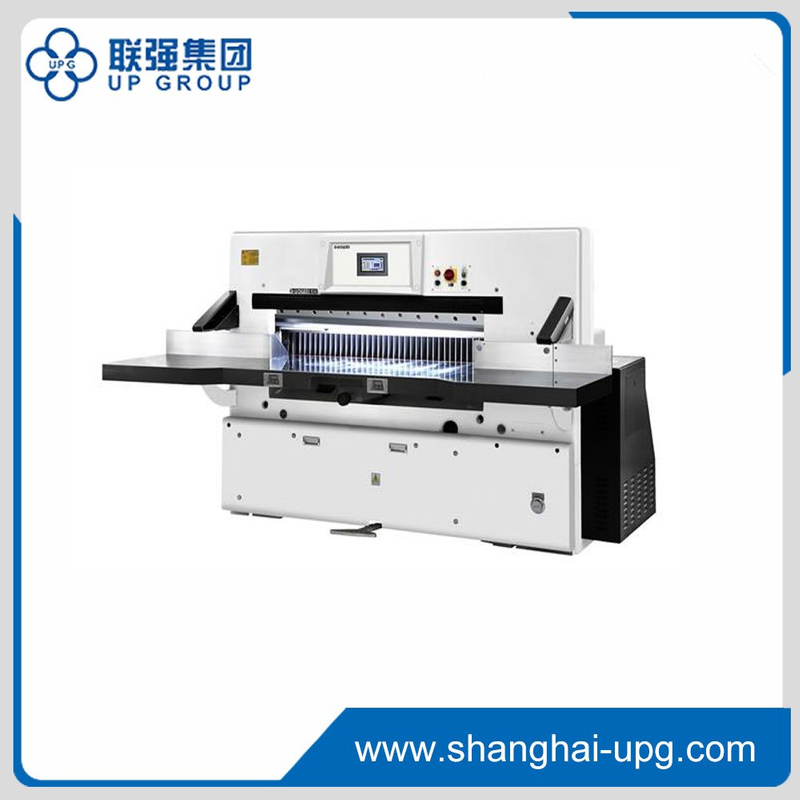

LQ-S Series Program Control Paper Cutter

Share to:

LQ-S Series Program Control Paper Cutter

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-78/92/115/130/137/155/166/186/220 S
Brand:
UPG
Code:
8441100000

7 inch full touch LCD,the resolution rate is 0.05mm,has self-diagnostic function of troubles and displays the operating pattern,60program units,over than 6000 different cutting position,dynamic follow-up.The max paper-pushing is 5-10m/min.Adopted import hydraulic components,France,Japan,Korean electric components,Taiwan ball lead screw,adopted imported bearing of low maintenance.Linear double guide-rail and slot less working table to ensure the accuracy of cutting.Flat worm speed reducer transmission for cutting.IR ray protective device is more convenient for cutting with optical knife-line alignment,button operated by two hands,single circulation cutting device etc.

Model / Specifications	78	92	115	130	137	155	166	186	220
Cutting width(cm)	78	92	115	130	137	155	166	186	220
Max.cutting height without assistance pressing plate(cm)	13	13	16.5	13	16.5	16.5	16.5	16.5	16.5
Max.cutting depth(cm)	78	93	115	130	145	155	166	200	220
Min cutting depth without assistance pressing plate(cm)	2.3	2.3	2.5	2.5	3	3	3	3	3
Extended length of working table(cm)	64	65	73	73	74	75	75	75	75
Height of working table(cm)	86-90	86-90	88-91	86-90	89-92	89-92	89-92	89-92	89-92
Machine width including side working table(cm)	215	233	266	266	287	314	322	342	376
Total length of working table(cm)	178	198	226	241	259	280	283	327	355
Cutting speed(r/min)	45	45	45	45	45	42	42	40	33
Max. Paper pressure(n)	30000	35000	40000	40000	45000	55000	60000	65000	70000
Power of main motor(kw)	3	3	4	4	4	5.5	7.5	7.5	7.5
Motor for paper feeding(kw)	0.75	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.10
Air pump(kw)	0.55	0.55	0.75	0.75	0.75*2	0.75*2	0.75*2	0.75*2	0.75*2
Machine weight(kg)	2300	2600	3900	3900	4500	5200	5500	6800	10200
Overall dimension(L x w x h)(cm)	210x140x195	228x140x195	255x160x215	260x153x195	280x160x215	296x165x215	315x160x215	340x182x230	390x190x270

Model / Specifications	78	92	115	130	137	155	166	186	220
Cutting width(cm)	78	92	115	130	137	155	166	186	220
Max.cutting height without assistance pressing plate(cm)	13	13	16.5	13	16.5	16.5	16.5	16.5	16.5
Max.cutting depth(cm)	78	93	115	130	145	155	166	200	220
Min cutting depth without assistance pressing plate(cm)	2.3	2.3	2.5	2.5	3	3	3	3	3
Extended length of working table(cm)	64	65	73	73	74	75	75	75	75
Height of working table(cm)	86-90	86-90	88-91	86-90	89-92	89-92	89-92	89-92	89-92
Machine width including side working table(cm)	215	233	266	266	287	314	322	342	376
Total length of working table(cm)	178	198	226	241	259	280	283	327	355
Cutting speed(r/min)	45	45	45	45	45	42	42	40	33
Max. Paper pressure(n)	30000	35000	40000	40000	45000	55000	60000	65000	70000
Power of main motor(kw)	3	3	4	4	4	5.5	7.5	7.5	7.5
Motor for paper feeding(kw)	0.75	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.10
Air pump(kw)	0.55	0.55	0.75	0.75	0.75*2	0.75*2	0.75*2	0.75*2	0.75*2
Machine weight(kg)	2300	2600	3900	3900	4500	5200	5500	6800	10200
Overall dimension(L x w x h)(cm)	210x140x195	228x140x195	255x160x215	260x153x195	280x160x215	296x165x215	315x160x215	340x182x230	390x190x270
