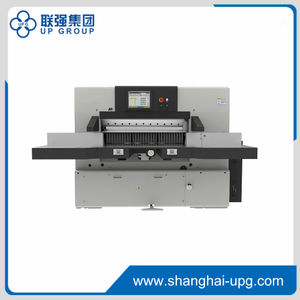

LQK1 Series Program Control Paper Cutter


PDF Export

  • 92/115/130 K1

  • UPG

  • 8441100000

It equipped AC digital servo controlling technology and 10 inches colorful touching screen ,the data resolution rate is 0.01mm, Full touch operating system for human computer interface, has self-diagnostic function of troubles and displays the operating pattern,100 program units, over 10000 different cutting positions, it can memorize, store and dynamic follow-up.The max paper-pushing speed is 5-15m/min. It adopts Japanese hydraulic components, Japan and Korean electric components. Japan、Taiwan、ball lead screw and linear doule guide-rail, PLC control system for electric conflguration, Its key parts adopt improted bearing of low maintenance. IR ray protective device is more convenient for cutting with optical knife-line alignment, button operated by two hands,single circulation cutting device ect.

Model / Specifications 92k1115k1130k1
Cutting width(cm) 92 115130
Max.cutting height without assistance pressing plate(cm) 1316.513
Max.cutting depth(cm) 93115130
Min cutting depth without assistance pressing plate(cm)
Extended length of working table(cm) 657373
Height of working table(cm) 8688-9286-91
Machine width including side working table(cm) 233266266
Total length of working table(cm) 198266266
Cutting speed(r/min) 454545
Max. Paper  pressure(n) 350004000040000
Power of main  motor(kw) 344
Motor for paper  feeding(kw) 0.750.750.75
Air pump(kw) 0.550.750.75
Machine weight(kg) 2600400039000
Overall dimension(L x w x h)(cm) 228x140x195255x160x21560x153x195
