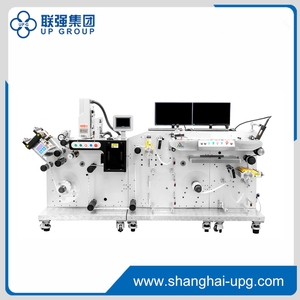

LQ-MD 30K Automatic electronic label sealing installation





Quantity:
  • LQ-MD 30K
  • UPG

Product Overview

  • The fully automatic electronic tag packaging machine is a device designed for HF and UHF electronic tag inlay chip patches in the RFID industry of the Internet of things. The whole equipment can meet the use of antennas with a width of 20-180mm (narrow width).

  • The whole line consists of automatic winding antenna, automatic pulling, automatic dot glue, mounting chip, automatic heat pressure, automatic detection marking, and automatic winding collection.

  • The device supports both 8-inch and 12-inch wafer discs.

  • The patch part adopts the camera pair material and chip alignment to meet the requirements of chip mounting accuracy.

  • Use industrial control machine control, combined with the modular design of imported step motor, cylinder, guide rail and wire rod, to meet the stability requirements of customers for long-time use of equipment.

  • Each group of thermal pressure head ensures planness of thermal pressure mechanism, and each group of thermal pressure and temperature are adjusted consistent and stable to ensure glue curing effect.


Applicable products (list only the partial representatives)

图片1图片2

                      HF Antenna                                              HF Antenna

图片3图片4

                    UHF Antenna                                            UHF Antenna


Technological process



Equipment advantages

  • The UPH is the highest of similar solid crystal devices.

  • Similar solid crystal equipment, the highest accuracy, antenna patch accuracy: ±0.035mm.

  • Equipment can match antenna maximum coil 600mm.

  • Use clutch with stable speed of 166 mm/s, constant tension and pulling accuracy of± 0.05mm.

  • Spray glue, patch, antenna pull material, hot pressure positioning and other sets of camera pair material and chip positioning, to meet the requirements of chip mounting accuracy.

  • High precision spray valve is used to ensure glue stability.

  • The temperature range of the heating head is 50°C - 250°C, the temperature control accuracy is ± 3°C, and the temperature can be calibrated by the software.

  • Up and lower heating head parallelism ± 0.05mm; pressure 0.5N - 3N adjustable, pressure accuracy ± 0.1N.

  • Equipped with high frequency and ultra high frequency antenna test card reader, the software can be automatically switched.

  • Simple operation, low requirements for employees, and product switching quickly.

  • Friendly human-machine interface, easy operation.Automatic fault alarm popup prompt information.




Major dispositions

Main Control System

PC

Servo system

Panasonic, Japan

Vacuum drum

Domestic products

Cylinder

Japan SMC

Reader-writer

Reidi Voyantic

Guide rail slider

THK, Japan

Slectric source

Ming Wei, Taiwan

Magnetic valve

SMC, Japan

Vacuum generator

SMC, Japan

Tension control

Domestic products
(optional import)

Vision system

Domestic Daheng
(optional import)

Stepping motor

Eastern Japan

Spray system

German imports



Specifications parameters

  • Capacity:

    Narrow width: 13K pcs/ (depending on the material situation)

    Patch precision: ±0.035mm

  • Material size:

    Narrow width: Volume width 20~180mm, Volume diameter maximum 600mm

    Chip: 0.2mm x 0.2mm ~2mm x 2mm

  • Chip on the material: 8 inch Wafer 12 inch Wafer

  • Crystal expansion method: manual crystal expansion

  • Visual system: CCD visual system (positioning vision, detection vision)

  • Control mode and power supply: industrial control machine, 220VAC

  • Equipment weight:

    Narrow width: approximately 3,000 KG

  • Equipment size:

    Narrow width: L 5600mm × W 1300mm (without display) × H 1700mm
