LQ-MD CS350
UPG
LQ-MD

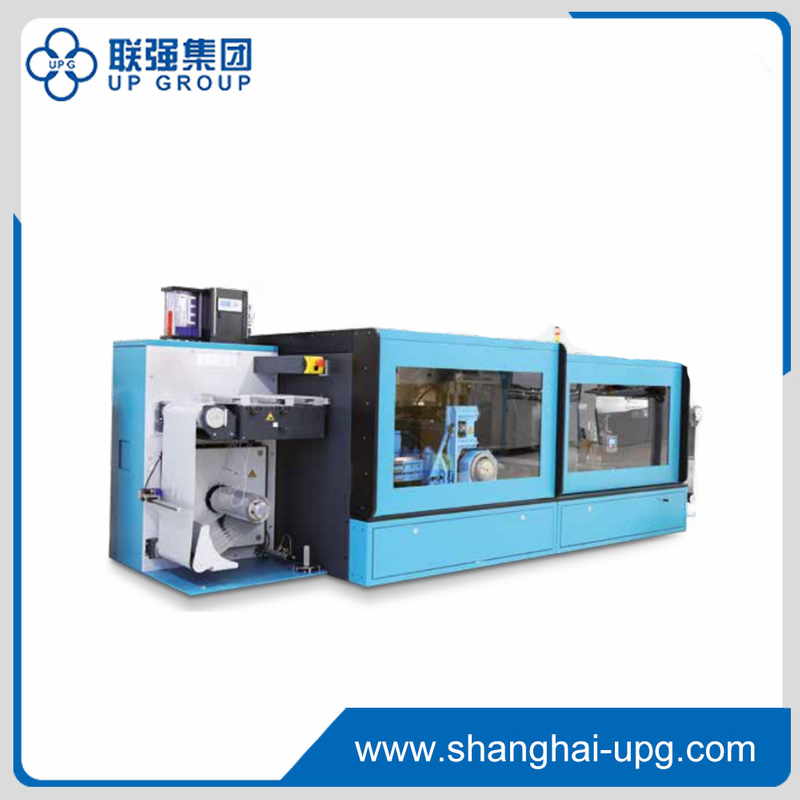

Antenna engraving equipment LQ-MD CS350 is an equipment for producing UHF aluminum antenna on pet. The roll to roll production mode inputs two layers of materials, the bottom layer is pet strip and the top layer is aluminum strip. In the main cutting procedure, the milling wheel removes the excess aluminum from the strip, the rest forms an antenna layout, and the milling head does not touch the pet strip. In order to flexibly adapt to the production of different antennas, the magnetic roller can be easily equipped with different knife dies. The integrated cleaning station with fixed brush head and suction nozzle can remove debris and dirt from antenna material and knife die. The next processing step is to detect the antenna quality.
The ungrounded UHF test system verifies the antenna performance through electrical performance test and ring simulation. The subsequent visual detection station detects all antennas and a specific antenna spacing. Unqualified antennas will be marked.
Advantage preponderance
1. Reduce the process cost by up to 30% compared with "aluminum etching production"
2. Save 75% of time "produce antenna on demand - within 1 hour"
3. Compress the supply chain and issue RFID tags within 24 hours
4. Even in production, the high yield can reach 2 billion / year
5. Rapid prototyping, no more than 3 hours from design to sample
6. Small floor area
Antenna engraving equipment LQ-MD CS350 is an equipment for producing UHF aluminum antenna on pet. The roll to roll production mode inputs two layers of materials, the bottom layer is pet strip and the top layer is aluminum strip. In the main cutting procedure, the milling wheel removes the excess aluminum from the strip, the rest forms an antenna layout, and the milling head does not touch the pet strip. In order to flexibly adapt to the production of different antennas, the magnetic roller can be easily equipped with different knife dies. The integrated cleaning station with fixed brush head and suction nozzle can remove debris and dirt from antenna material and knife die. The next processing step is to detect the antenna quality.
The ungrounded UHF test system verifies the antenna performance through electrical performance test and ring simulation. The subsequent visual detection station detects all antennas and a specific antenna spacing. Unqualified antennas will be marked.
