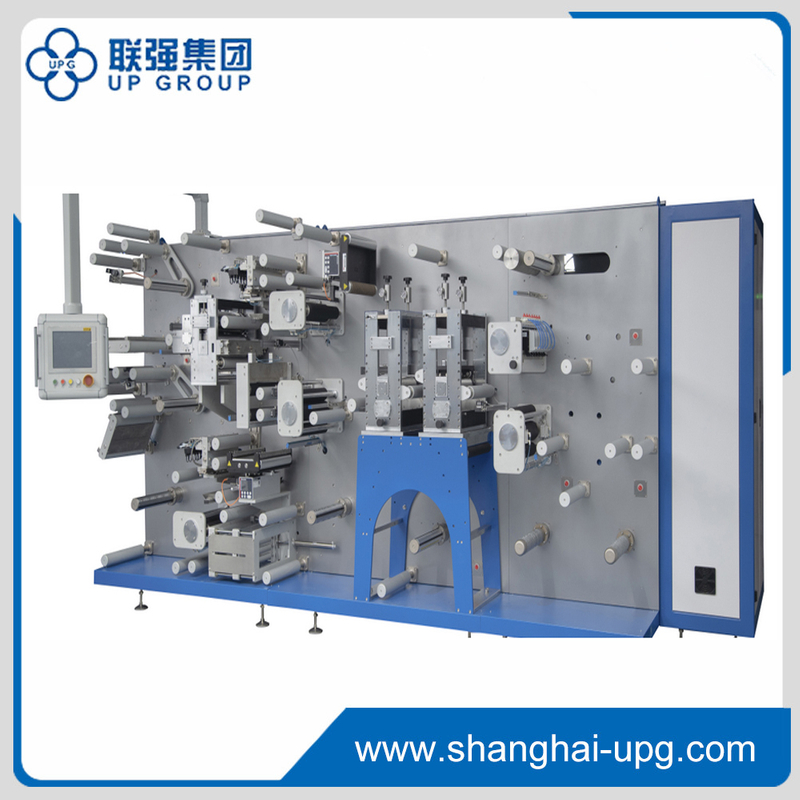

LQ-MD 6000W Rotary RFID Automatic Labeling Lamination Machine

Availability:
Quantity:
Inquire Add to Basket

PDF Export
LQ-MD 6000W Rotary RFID Automatic Labeling Lamination Machine

  • LQ-A6000W

  • UPG

  • LQ-A6000W



A6000W-1



· Max. web width up to 350mm

· Simple and fast operation

· High production speed and stable quality

· Double die cutting station and wide range of product applications



Efficient static elimination device

A6000W-elimanation device


Gluing unit

A6000W-gluing unit


Double die cutting station

A6000W-double die cutting unit


Final product rewinding unit

A6000W-rewinding unit

Simple and flexible operation

A6000W-operation



Slitting unit

A6000W-slitting unit


Max. substrate width up to 350mm

A6000W-基材


Inlay cutting and shifting unit

A6000W-Inlay cutting and shiftting


Unwinder diameter 700mm

A6000W-unwinder


Multi inspection and inkjet printing unit

A6000W-inspection


Electric control cabinet

A6000W-electric control cabinet


Max. Production speed60m/min
Max. Inlay width340mm
Max. inlay cutting length110mm
Max. substrate width350mm
Label lengthUp to 550mm
Label widthUp to 340mm
Positioning accuracy of substrate roller±0.1mm
Inlay cutting tolerance±0.3mm
Inlay positioning tolerance±0.3mm
Substrate register tolerance±0.3mm
Die cutting tolerance±0.2mm
Diameter of inlay unwinding500mm
Diameter of substrate unwinder700mm
Diameter of rewinder500mm
Power supply380V, 50Hz, 100A (Including gluing machine)
Air supply0.5Mpa, 100L/min
Machine size4800×1800×2600mm
